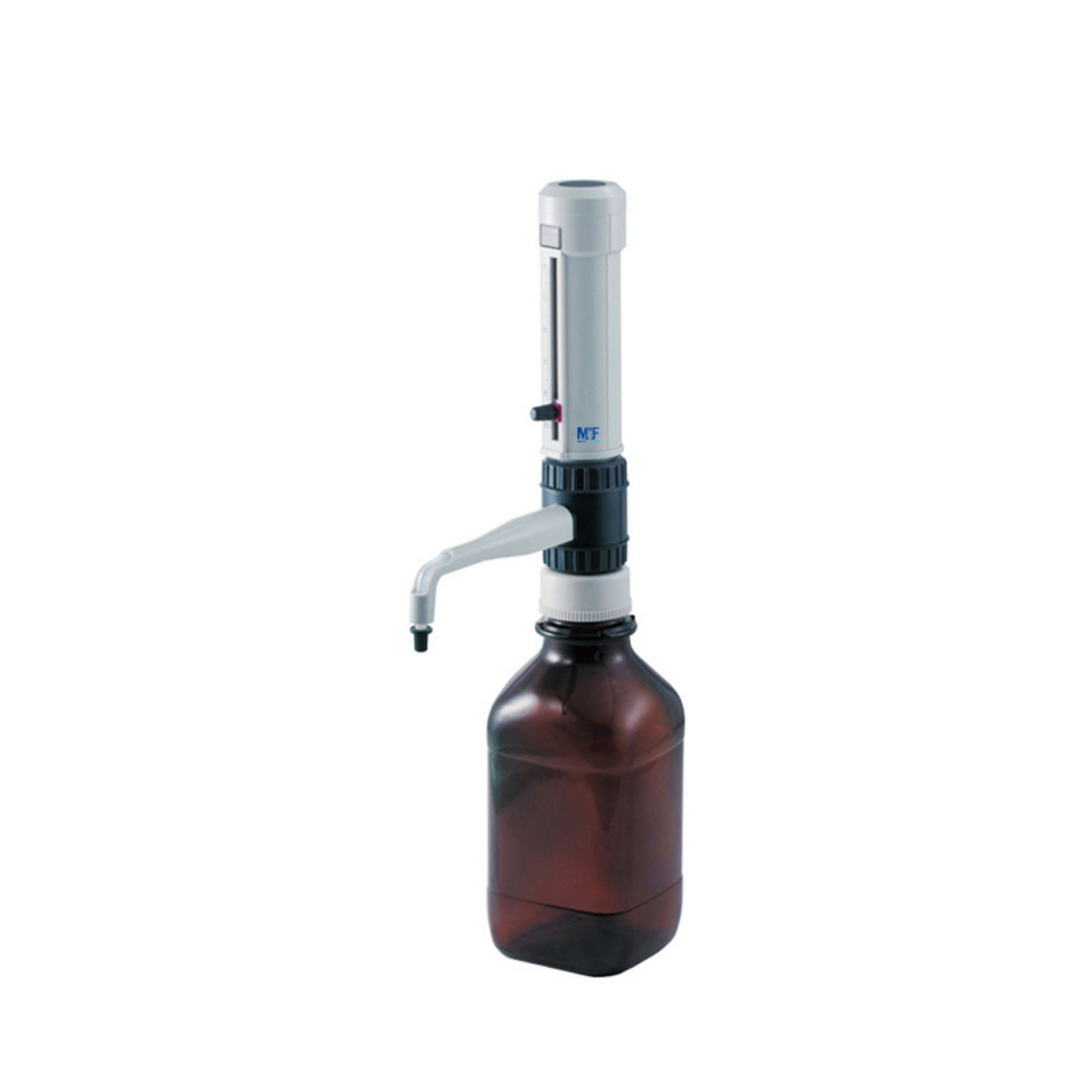

DispensMate Bottle-Top Dispenser

Description

DispensMate Bottle-Top Dispenser

Features:

1. Excellent chemical resistance.

2. Fully autoclavable at 121°C.

3. Easy to clean and maintain.

4. Made of PTFE、FEP、BSG、PP.

5. Four ranges of bottle-top dispenser cover a volume range from 0.5ml to 50ml.

6. The optional flexible discharge tube with safety handle permits fast and precise dispensing.

7. Vapor pressure Max. 500mbar, viscosity max. 500mm2/S, temperature max. 40℃, density max. 2.2g/cm3.

8. DispensMate plus is supplied with S40, GL32, GL38, GL25, GL28 sized adapters.

Technical Parameters:

Volume
Range

Graduation

A≤±

CV≤

0.5~5ml

0.1ml

0.5%

25μl

0.1%

5μl

1.0~10ml

0.2ml

0.5%

50μl

0.1%

10μl

2.5~25ml

0.5ml

0.5%

125μl

0.1%

25μl

5.0~50ml

1.0ml

0.5%

250μl

0.1%

50μl

A=Accuracy; CV=Coefficient of variation.



Ordering Information:

Cat. No.

Volume Range

7032100101

0.5~5ml

7032100102

1~10ml

7032100103

2.5~25ml

7032200104

5~50ml



Cat. No.

Volume Range

Standard Accessories

17000069

S40, Adapter, 45/40mm

17000817

GL32, Adapter, 45/32mm

17400132

GL38, Adapter, 45/38mm

17400133

GL25, Adapter, 32/25mm

17400134

GL28, Adapter, 32/28mm

17400021

Filling tube(m)

17100073

Discharge tube(m)

Optional Accessories

17400037

Reagent Bottle(Brown, 1L)
