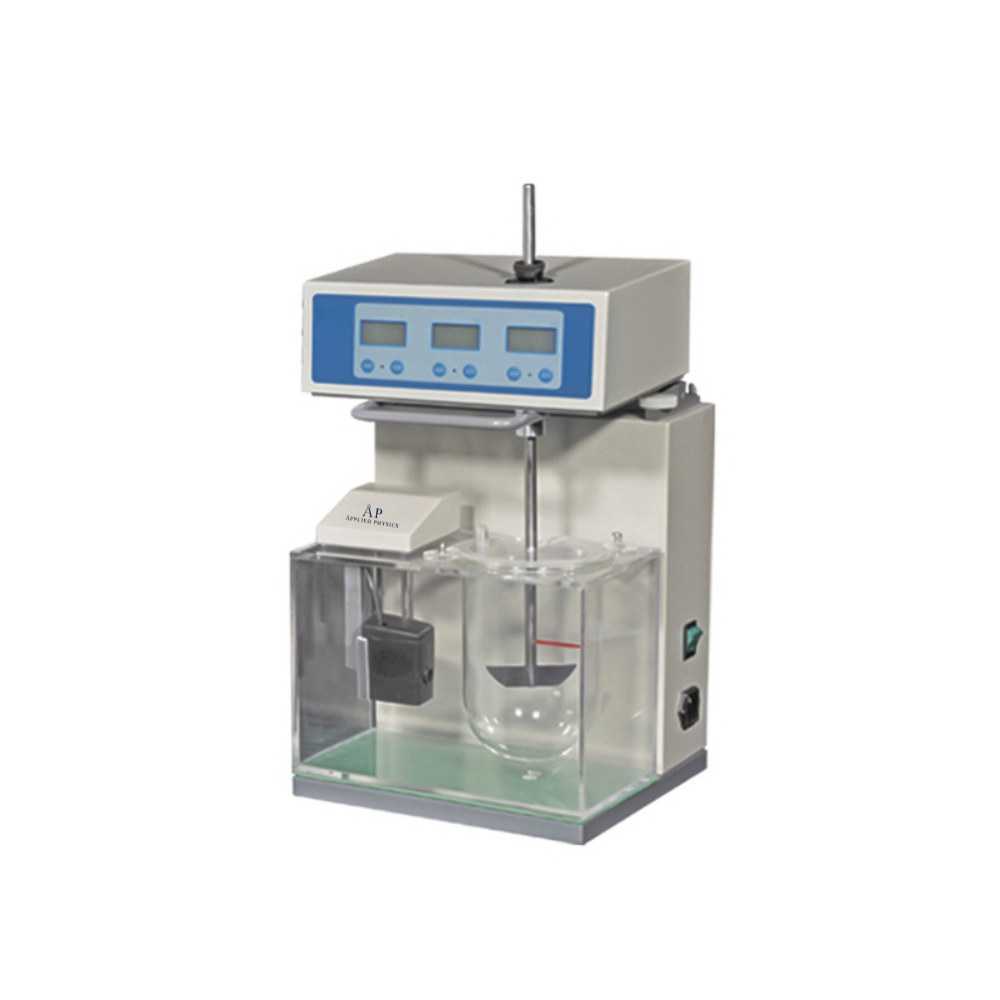

Dissolution Tester RC Series

Description

Dissolution Tester RC Series

Features:

1. Auto-diagnose, auto-alarm.

2. Stainless steel basket and paddle.

3. Micro processor and LCD display.

4. The head part of the instrument can be turned over smoothly and flexibly(Rise and fall for BK-RC8).

5. Water circulating in the bath to keep the temperature conformity with magnetic pump.

Technical Parameters:

Model

BK-RC1

BK-RC3

BK-RC6

BK-RC8

Basket

1pc

3pcs

6pcs

8pcs

Speed Range

20~200rpm

Speed Precision

±2rpm

Temp. Range

RT +45.0°C

Temp. Precision

±0.3°C

Timing Range

5~900min

5~900min

1~999min

1~999min

Time Precision

±0.5min

Working Time

>24h

Paddle Swing Amplitude

±0.5mm

Basket Swing Amplitude

±1.0mm

Power Consumption

600W

600W

1200W

1200W

Power Supply

AC110/220V±10%, 50/60Hz

External Size(W*D*H)mm

260*300*480

510*300*480

960*320*480

680*540*480

Package Size(W*D*H)mm

490*395*560

750*400*565

1210*440*550

930*660*530

Gross Weight(kg)

18.5

30

44

74
