Description
Lab Automatic Glassware Washer provides standard and automatic cleaning and disinfection for most of medical equipment, so as to eliminate the possibility of infection in cleaning and disinfecting. Features: 1. Two toughened glass doors, prevent cross infection. 2. Color LCD touch screen, advanced programmable control system with twelve standard programs. 3. High efficient cleaning system, with rotary nozzles in top, bottom and among the shelves to make sure that the spray liquid can contact the surface of devices completely. 4. High efficient drying system with HEPA filter, can clean and dry the inner of tubular things. 5. Thermal disinfection, water heating system can make sure the water temperature keep above 93℃ to reach the international disinfecting efficiency level. Standard Washing Procedure(can be self-designed by the user): Pre-cleaning → Clean with enzymes → Rinse → Thermal disinfection → Glazing clean → Drying
Technical Parameters：
| Model | BK-LW220D | BK-LW320D | BK-LW420D | ||||
| Cleaning | Capacity | 220L | 320L | 420L | |||
| Washer Load Level | 2 | 3 | 2 | ||||
| Water Wash Power | 0.75KW | 1.5KW | 1.5KW | ||||
| Water Heater Power | 5KW | 15KW | 5KW | 15KW | 5KW | 15KW | |
| MAX. Power | 6KW | 16KW | 7KW | 17KW | 7KW | 17KW | |
| Water Consumption/Step | 20L | 22L | 25L | ||||
| Tank Internal Temperature | 0~99℃ | ||||||
| Water Supply Pressure | 0.3~1.0Mpa | ||||||
| Peristaltic Pump for Cleaning Agent | 2 independent pumps control detergent agent and neutralizing agent | ||||||
| Cleaning Agent Level Sensor | YES | ||||||
| Washing Pump | Sweden 800L/min | Sweden 1000L/min | Sweden 1000L/min | ||||

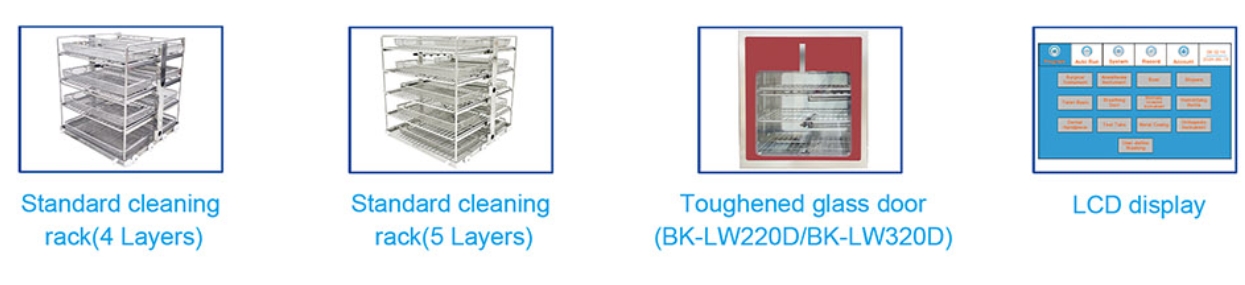

| Standard Cleaning Racks | 4 Layers | 5 Layers | |||||
| BK01-220*1 | BK01-320*1 | BK01-420*1 | |||||
| Drying | Drying Function | YES | |||||
| Steam Condenser | NO | ||||||
| Dry Power | 3.6KW | 3.6KW | 3KW | ||||
| Control System and Traceability | Control System | 7" color LCD touch screen display, microprocessor | |||||
| Cleaning Program | 12 pre-set programs(editable)+100 PLC free programming | ||||||
| Password Protection | 3 levels password | ||||||
| Safety Emergency Button | YES | ||||||
| USB Port | YES | ||||||
| Integrated Printer | YES | ||||||
| Online Monitor Performance of Washing | Optional | ||||||
| Dimensions&Weight | Chamber Dimension(W*D*H) | 600*629*830mm | 600*629*990mm | 688*700*703mm | |||
| Exterior Dimension(W*D*H) | 960*805*1865mm | 960*805*2025mm | 1110*900*2165mm | ||||
| Package Dimension(W*D*H) | 1100*950* 2150mm | 1100*950*2180mm | 1230*1070*2290mm | ||||
| Net Weight(Host only) | 320kg | 340kg | 370kg | ||||
| Gross Weight(Host with rack ) | 420kg | 440kg | 460kg | ||||
| Others | Door | Double-layered glass door, 2 doors, manual | Double-layered glass door, 2 doors, electric | ||||
| Safety Door Lock | YES | ||||||
| Built-in RO Water Pump | YES | ||||||
| Noise | <55dB | <55dB | <60dB | ||||
| Optional Accessories | Trolly(BK01) | ||||||
| Power Supply | AC220V, 50Hz; 380V, 50Hz(Standard); AC380V, 60Hz; 220V, 60Hz; 220V, 60Hz(Three phase); 110V, 50/60Hz(Optional) | ||||||
