Description

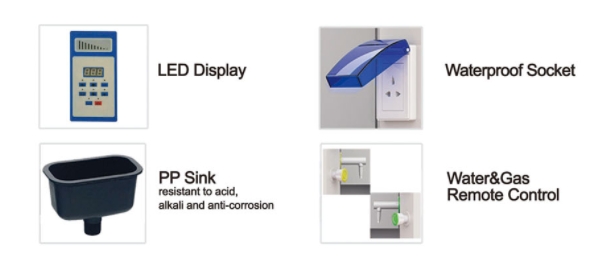

It is a new type of technical equipment for air-conditioned workshop and clean workshop. Widely used in electronics, chemical, machinery, universities, laboratories and other fields. The fume hood can be used for the operation of potentially dangerous or unknown infection factors, as well as the experiment of strong acid, strong alkali, strong corrosive and volatile. Protect operator and sample safety. Features: 1. It is safer to use anti-corrosive water tap. 2. Microprocessor control system, LED display. 3. With memory function in case of power-failure. 4. Made of porcelain white PP, resistant to acid, alkali and anti-corrosion. 5. Front window which is made of 5mm thick transparent toughened glass maximize light and visibility inside the fume hood, providing a bright and open working environment.
Technical Parameters:
| Model | FH1000(P) | FH1200(P) | FH1500(P) | FH1800(P) | |
| External Size(W*D*H) | 1047*800*2450mm | 1247*800*2450mm | 1547*800*2450mm | 1847*800*2450mm | |
| Internal Size(W*D*H) | 787*560*700mm | 987*560*700mm | 1287*560*700mm | 1587*560*700mm | |
| Work Surface Height | 820mm | ||||
| Max Opening | 740mm | ||||
| Air Velocity | 0.3~0.8m/s | ||||
| Noise | ≤68dB | ||||
| Exhaust Duct | 4.3 meters, φ250mm | ||||
| LED Lamp | 9W*2 | 12W*2 | 15W*2 | 20W*2 | |
| Blower | Built-in PP centrifugal blower(2 blowers for FH1800(P) only), Speed adjustable | ||||
| Front Window | Resistant to acid and alkali, manual, 5mm toughened glass, height adjustable | ||||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | ||||
| Consumption | 400W | 400W | 500W | 700W | |
| Material | Main Body | Made of porcelain white PP, thickness 8mm, resistant to strong acid, alkali and anti-corrosion. | |||
| Work Table | Chemical resistant phenolic resin | ||||
| Standard Accessory | LED light Work table: chemical resistant phenolic resin 4.3 meters PVC duct (2 pcs of 4.3 meters PVC dust for FH1800(P) only), Diameter: 250mm Pipe strap*2(4 pcs for FH1800(P) only) RVV power cord(3*1.0mm²*3000mm) Base cabinet Waterproof socket*2 Tail insert Water tap(PP) Gas tap(PP) Water sink PP centrifugal blower*1(2 for FH1800(P) only) | ||||
| Optional Accessory | PP work table, epoxy resin board or ceramic board Active carbon filter Outer PP centrifugal blower*1(only need to select when the duct more than 4m, 2 for FH1800(P) only) Splicable base cabinet(only not for FH1800(P)) | ||||
| Gross Weight | Main Body | 137kg | 155kg | 180kg | 206kg |
| Base Cabinet | 89kg or 80kg(Splicable) | 99kg or 90kg(Splicable) | 114kg or 102kg(Splicable) | 140kg | |
| Package Size(W*D*H) | Main Body | 1188*938*1612mm | 1388*938*1612mm | 1688*938*1612mm | 1988*938*1612mm |
| Base Cabinet | 1188*888*1000mm or 1200*1000*450mm(Splicable) | 1388*888*1000mm or 1400*1000*450mm(Splicable) | 1688*888*1000mm or 1700*1000*450mm(Splicable) | 1988*888*1000mm | |
