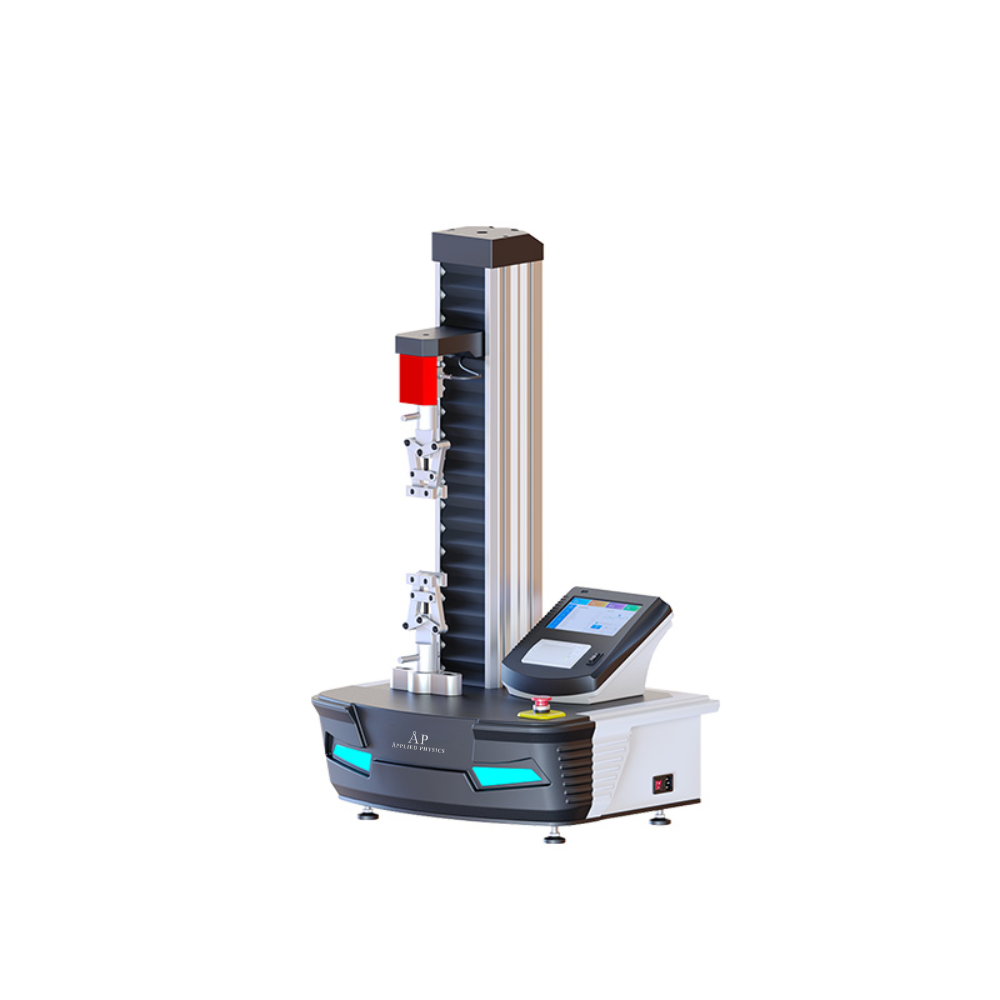

Electronic Universal Testing Machine BK-UTM5

Electronic Universal Testing Machine BK-UTM5 Features: 1. Real-time curve display: The system offers two display methods for curves: a convenient small curve interface display in the main interface, and a “single graph” large curve interface display. 2. Real-time data display: The system can simultaneously display 4 types of data, namely force value, displacement, deformation, and speed. 3. Overload emergency shutdown device, up and down travel limit device, automatic breakpoint shutdown function. 4. Machine automation: The entire testing process, including measurement, display, and control, is automatically completed by the digital display system. The test results will be automatically archived upon completion. Technical Parameters: Model BK-UTM5 Max Testing Force 50N 100N 200N 500N 1000N 2000N 5000N Accuracy Level Level 1 Type Single-arm structure Limit of Allowable Error for Testing Force Indication ≤±1% of Indication Force Measurement Range 2%~100%FS Force Resolution 1/250000 of the maximum test force Limit of Indication Error for Displacement ≤±1% of Indication Minimum Displacement Resolution 0.01mm Beam Speed Range 0.01~500mm/min Relative Error of Beam Speed ≤±1% Stretching Distance 700mm Power Supply AC220V, 50/60Hz(Standard); AC110V, 50/60Hz(Optional, external transformer) External Size(L*W*H) 420*280*1150mm Net Weight 120kg Packing Size(L*W*H) 550*600*1600mm Gross Weight 135kg
