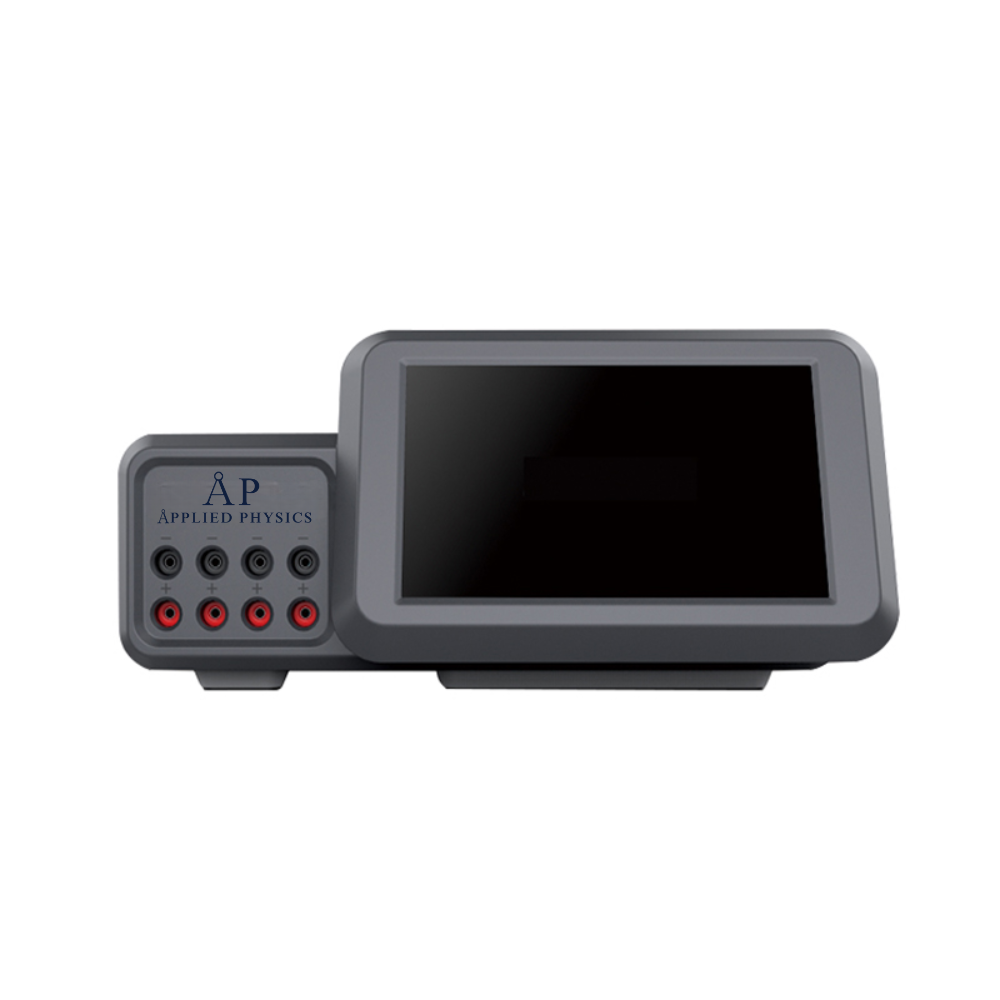

Electrophoresis Power Supply BEP-600D

Description

Electrophoresis Power Supply BEP-600D

Features:

1. Display: Seven-inch large touch screen, convenient touch operation, automatic generation of digital keyboard when setting, display the clock timing temperature running status and various prompt operations.

2. Storage step by step: 10 programs can be edited and saved, and each program can be run in 10 steps.

3. Protection function: over current, overload, over temperature, no load, short circuit load mutation protection function.

4. Micro current: After the timing operation is over, the micro current output can be maintained when no one is shutting down.

5. Automatic setting: When one of the indicators of constant voltage, current and power, the other two items will automatically rise to the maximum value without manual adjustment.

6. Appearance: The appearance is tall and full of technology.

Technical Parameters:

Model

BEP-600D

Output

Constant-voltage or current or power(adjustable)

Output Range

5~600V; 1~1200mA; 5~300W

Increment

1V, 1mA, 1W

Timing

1min~99h59min

Parallel Output

4 groups

Temperature Check

-20°C~+85°C

Power Supply

AC220V±10%, 50/60Hz(standard); 110V±10%, 60Hz(optional)

External Size(L*W*H)

300*300*130mm

Package Size(L*W*H)

450*410*260mm

Gross Weight

3.6kg
