Description
Laminar flow cabinet is a box-type air purification equipment that can provide local dust-free clean, sterile working environment class 100 (ISO Class 5) local operating environment. The polluted air in the working area can be artificially controlled through a special filter channel to avoid harm to people and the environment. In the working state, it can keep the performance parameters such as wind speed, air cleanliness, noise, vibration and lighting in the working space to meet the requirements of laboratory use, and is widely used in biological laboratories, medical and health and other related industries, which has a good effect on improving the process conditions, protecting the health of the operator, and improving product quality and yield.
Features: 1. ETL certification, satisfy North American market. 2. With memory function in case of power-failure. 3. Audio and visual alarm(Abnormal airflow velocity).
Technical Parameters:
| Model | BBS-H800 | BBS-H1100 | BBS-H1300 | BBS-H1500 | BBS-H1800 |
| External Size(W*D*H) | 800*810*(1720~1980)mm | 1100*810*(1720~1980)mm | 1300*810*(1720~1980)mm | 1500*810*(1720~1980)mm | 1800*810*(1720~1980)mm |
| Internal Size(W*D*H) | 700*500*600mm | 1000*500*600mm | 1200*500*600mm | 1400*500*600mm | 1700*500*600mm |
| Work Surface Height | 750~1010mm | ||||
| Max Opening | 440mm | ||||
| Display | LCD display | ||||
| Airflow Velocity | 80~99fpm | ||||
| Material | Working area: 304 stainless steel Main body: Cold-rolled steel with anti-bacteria powder coating Front window: 5mm toughened glass, anti-UV | ||||
| Pre-Filter | Polyester fiber | ||||
| HEPA Filter | One, 99.995% efficiency at 0.3μm | ||||
| Noise | ≤68dB(A) | ||||
| Illumination | ≥300lx | ||||
| Waterproof Sockets | One socket(Double type), America standard, Max. Power: 500W | ||||
| Power Supply | 103.5~126.5V, 60Hz, 10A | ||||
| Consumption | 750W | 950W | 950W | 950W | 1150W |
| LED Lamp | 10W*1 | 14W*1 | 14W*1 | 18W*1 | 22W*1 |

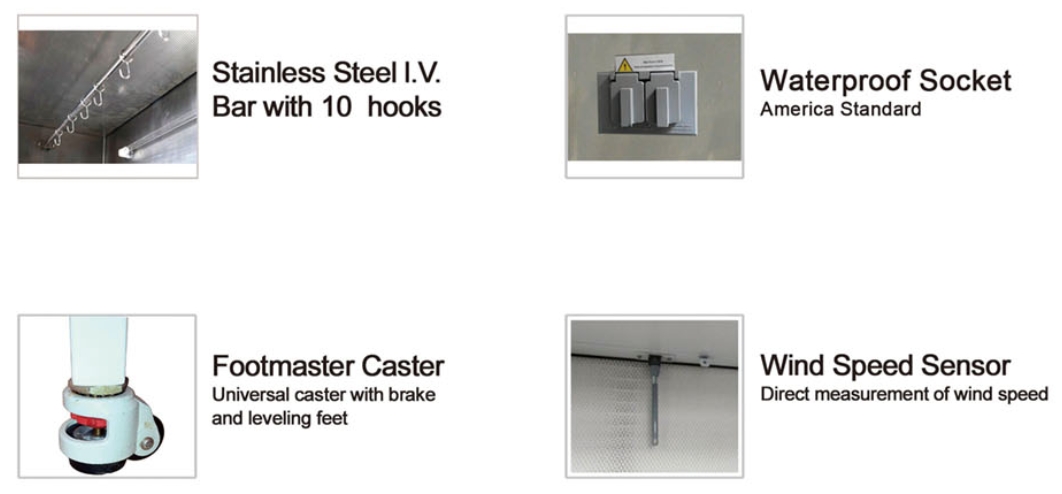

| Standard Accessories | Manually height adjustable base stand, LED lamp, Wind speed sensor, Waterproof socket, Stainless steel. V. Bar with 10 hooks | ||||
| Optional Accessories | UV lamp | ||||
| Package Size(W*D*H) | 940*1090*1250mm | 1240*1090*1250mm | 1440*1090*1250mm | 1640*1090*1250mm | 1940*1090*1250mm |
| Gross Weight | 150kg | 190kg | 225kg | 265kg | 300kg |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Clean-workstation quote checklist
Confirm product-protection objective, horizontal or vertical airflow preference, work-zone dimensions, process equipment inside the cabinet, electrical service, filtration and installation constraints.
