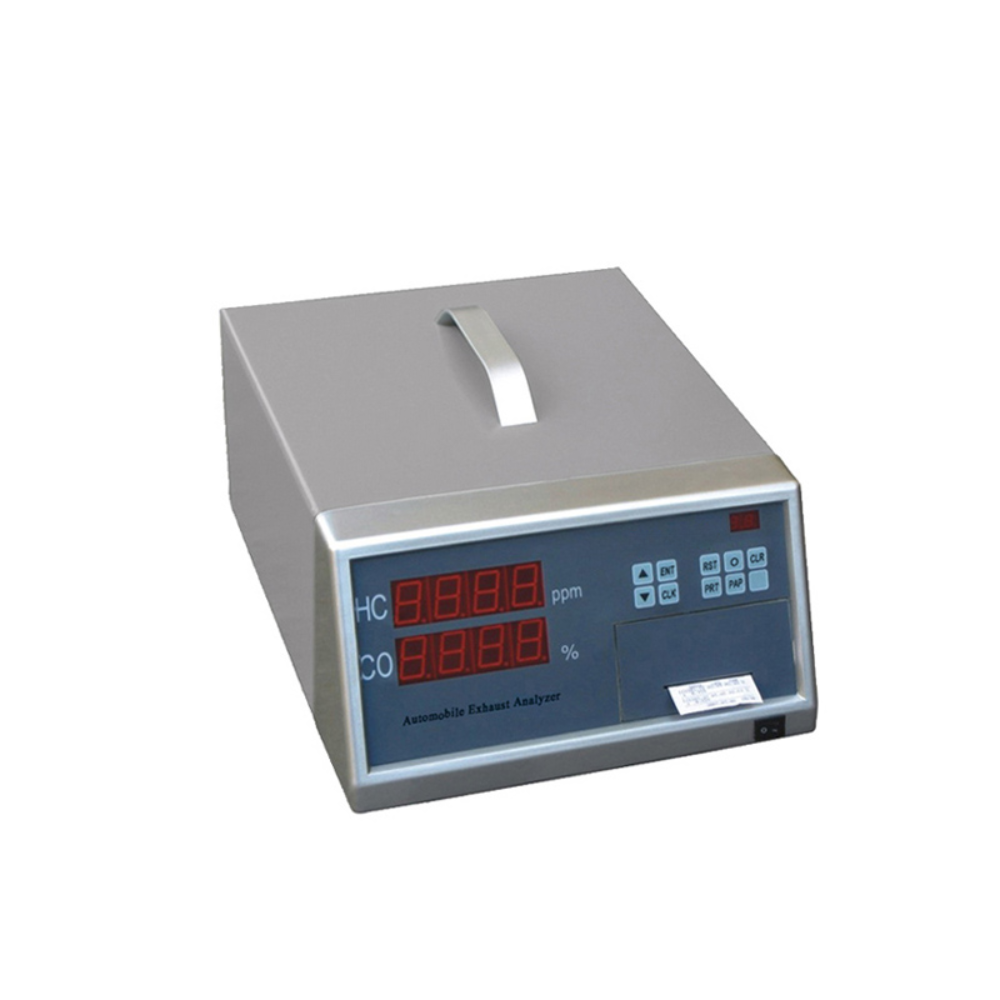

Exhaust Analyzer

Description

Exhaust Analyzer

Features:

1. With built-in printer.

2. With a high-brightness digital display.

3. Automatic zero, linear automatic data processing, auto-alarm when the gas line blocking.

Technical Parameters:

Model

BK-EA201

BK-EA301

BK-EA401

BK-EA501

Measuring Range

HC: 0~10000*10^-6(ppm)vol

CO: 0~10*10 ^-2(%)vol

HC: 0~10000*10^-6(ppm)vol

CO: 0~10*10 ^-2(%)vol

NOx: 0~5000*10^-6(ppm)vol

HC: 0~10000*10^-6(ppm)vol

CO: 0~10*10 ^-2(%)vol CO2: 0~20*10^-2(%)vol

O2: 0~25*10^-2(%)vol

λ: 0.50~3.00

COcor: 0~10*10^-2(%)vol

HC: 0~10000*10^-6(ppm)vol

CO: 0~10*10^-2(%)vol

CO2: 0~20*10^-2(%)vol

O2: 0~25*10^-2(%)vol

NOx: 0~5000*10^-6(ppm)vol λ: 0.50~3.00

COcor: 0~10*10^-2(%)vol

Indicating Error

HC±12*10^-6(ppm)vol

CO±0.06*10^-2(%)vol

HC±12*10^-6(ppm)vol

CO±0.06*10^-2(%)vol

NOx±25*10^-6(ppm)vol

HC±12*10^-6(ppm)vol

CO±0.06*10^-2(%)vol

CO2±0.5*10^-2(%)vol

O2±0.1*10^-2(%)voI

HC±12*10^-6(ppm)vol

CO±0.06*10^-2(%)vol

CO2±0.5*10^-2(%)vol

O2±0.1*10^-2(%)voI

NOx±25*10^-6(ppm)vol

Stability

Moment drift≤±3%

Repeatability

≤±2%

Response Time

95%response is not more than 10 seconds

Preheating Time

8min(preheating 3min emergency detection)

Power Supply

AC110~240V±10%, 50/60Hz; Optional: DV12V

Package Size(W*D*H)

620*435*295mm

Gross Weight

12.5kg
