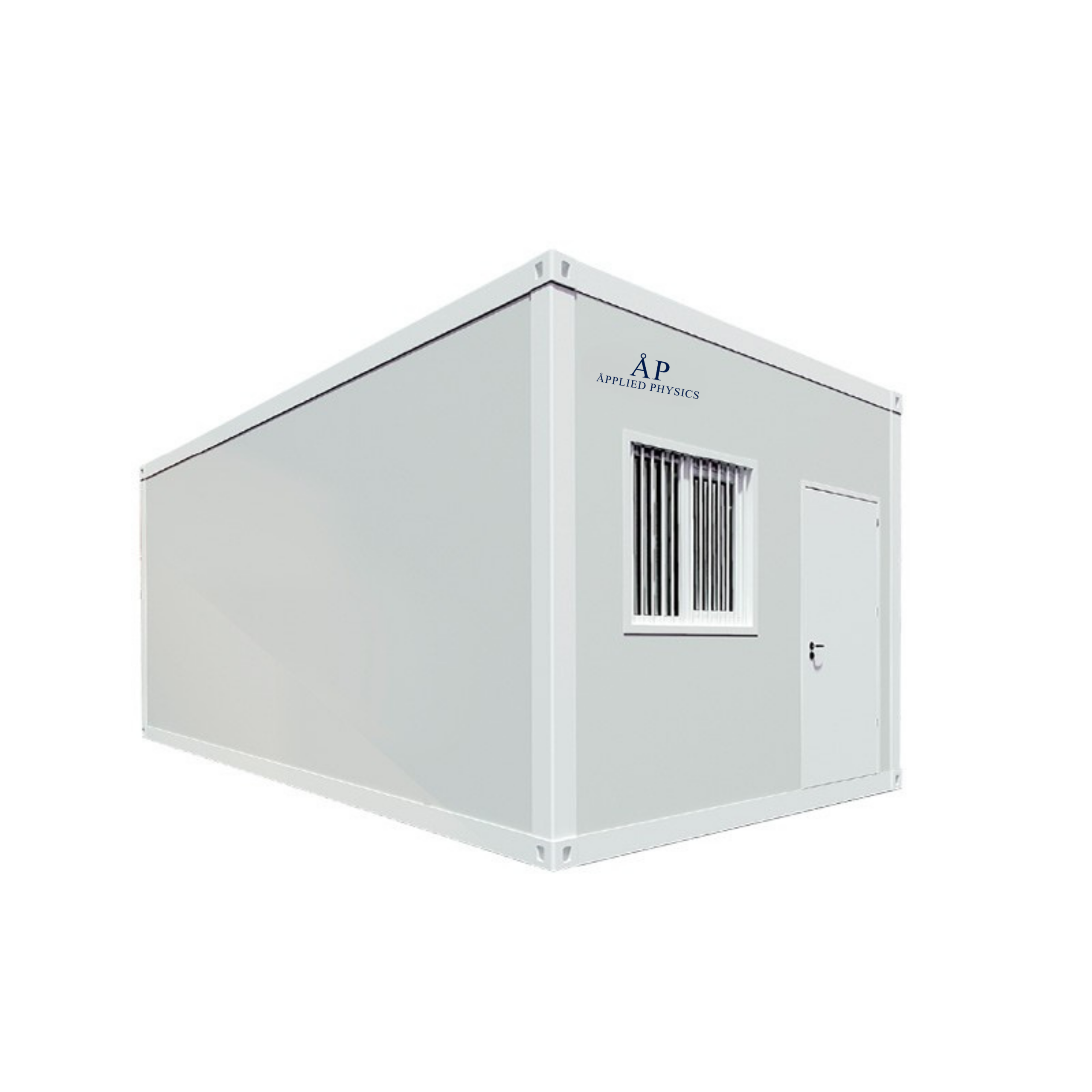

Flat Pack Container
Technical Parameters:
Model
ZPSXF-I
Top Frame
Top side beam 2.0mm thick
Top beam C100*40mm*1.2mm, 9 PCS
Ridge square tube 30*30mm*1.0mm
Top rock wool 80mm thick
PE protective film
Top color steel tile 0.35mm thick
Roof Structural Adhesive
Butyl waterproof tape, 2mm thick
Bottom Frame
Underframe side beam 2mm thick
Underframe beam 100*50*1.2mm, 9pcs
Bottom frame longitudinal reinforcement beam
Prism
210*150*2.0mm column, height 2550mm
Stud Bolt M10*25
Column connector
Corner Piece
210*160 corner piece, 8pcs
top triangle support
Color
RAL9010
Panel
Double-sided rock wool sandwich panel, 50mm thick
Floor
Cement fiber board 18mm thick
Floor Decoration
PVC floor 1.6mm thick
Door
970*1970mm, Common fire lock, white steel window
Window
PVC window
Others
Floor groove, galvanized iron sheet
PVC drain pipe,φ50mm
Ceiling trim
Column inner corner
| Model | and have the advantages of quick installation in place, and multiple assembly and transportation during use., and the sound insulation effect is good., Applications, environmental protection, etc., Flat pack containers are more standardized, good air tightness, isolation wards, low basic installation requirements, modular and generalized. They can be used in special scenarios, such as isolation points, such as the thermal insulation of the house, The advantage of the flat pack container is the special design, which can meet the rapid environmental protection requirements of people's lives |
|---|
