Applied Physics Corporation

Floor Type Plasma Air Sterilizer BK-Y-1000-D

Floor Type Plasma Air Sterilizer BK-Y-1000-D

Voltage
Regular price $1,059.00 USD
Regular price Sale price $1,059.00 USD
Sale Sold out
Shipping calculated at checkout.
View full details

Description

It is suitable for general operating room, delivery room, blood ward, burn ward, protective isolation ward, intensive care unit, disinfection supply center, intensive dialysis center, examination room, treatment room, infectious disease consultation.

Features:

1. The coexistence of man and machine means that it can be disinfected in a manned environment or in an unmanned environment.

2. LCD touch display, real-time display of indoor temperature and humidity(Humidity only for BKB-G-1600-D).

3. 6 groups of on-off time can be booked within 24 hours, wind speed can be adjusted in three gears.

4. Manual, timing, temporary and automatic working modes(Automatic working mode only for BKB-G-1600-D) are available.

5. With two-section plasma generator, the upper part uses 4000V plasma generator to adsorb dust particles, and the lower part uses 8000V plasma generator to sterilize and disinfect(Mobile type). With plasma generator, fan, negative ion module fault alarm, filter maintenance warning(BKB-G-1600-D). The service life can reach 30000 hours.

6. Built-in high-concentration negative-ion generator, release negative ions to adsorb dust particles in the air and purify the air.

7. The device has two fans and two plasma generators with large air volume and space disinfection capacity(Only for BKB-G-1600-D).

8. Filter is easy to disassemble.


Technical Parameters:

Model

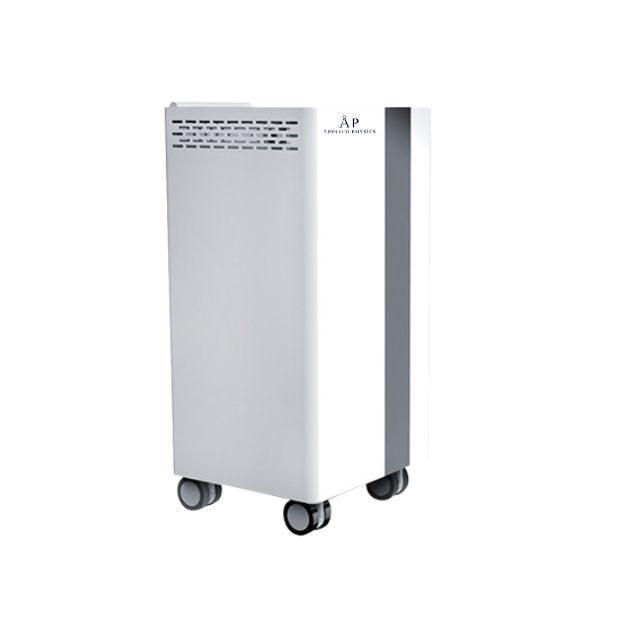

BKB-Y-800-D

BK-Y-1000-D

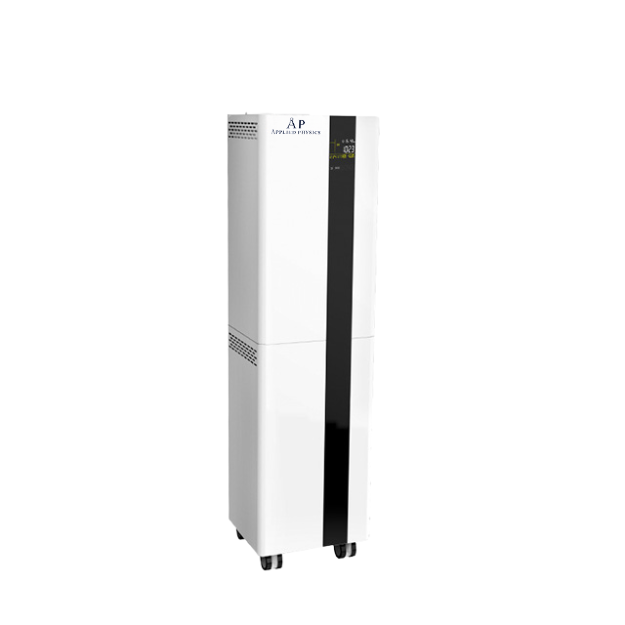

BKB-G-1600-D

Type

Mobile type

Floor type

Disinfection Type

Plasma and electrostatic adsorption

Applicable Space

≤80m3

≤100m3

≤160m3

Circulating Air

≥800m3/h

≥1000m3/h

≥1600m3/h

Shell Material

ABS shell

Metal shell

Ozone Leakage

≤0.01mg/m³

≤0.033mg/m3

≤0.01mg/m³

Plasma Density

3.40*10^17m-3~1.75*10^18m-3

3.49*10^17m-3~8.67*10^17m-3

3.38*10^17m-3~1.84*10^18m-3

Negative Ion Generation

≥5*10^6pcs/cm3

Electric Field Intensity of Sterilization Area

8000V

Electric Field Intensity of Dust Accumulation Area

4000V

Natural Bacteria Extinction Rate

≥90%

Sterilization Rate of Staphylococcus Albus

≥99.9%

Noise

≤55dB(A)

Consumption

≤100W

≤200W

Power Supply

AC220V, 50/60Hz(Standard);

AC110V, 50/60Hz(Optional)(External transformer)

External Size(W*D*H)

370*360*710mm

540*410*900mm

370*360*1340mm

Net Weight 20.5kg 23kg 41.8kg

Package Size(W*D*H)

440*430*780mm

574*481*975mm

440*430*1420mm

Gross Weight

25.3kg

28.5kg

47.7kg
