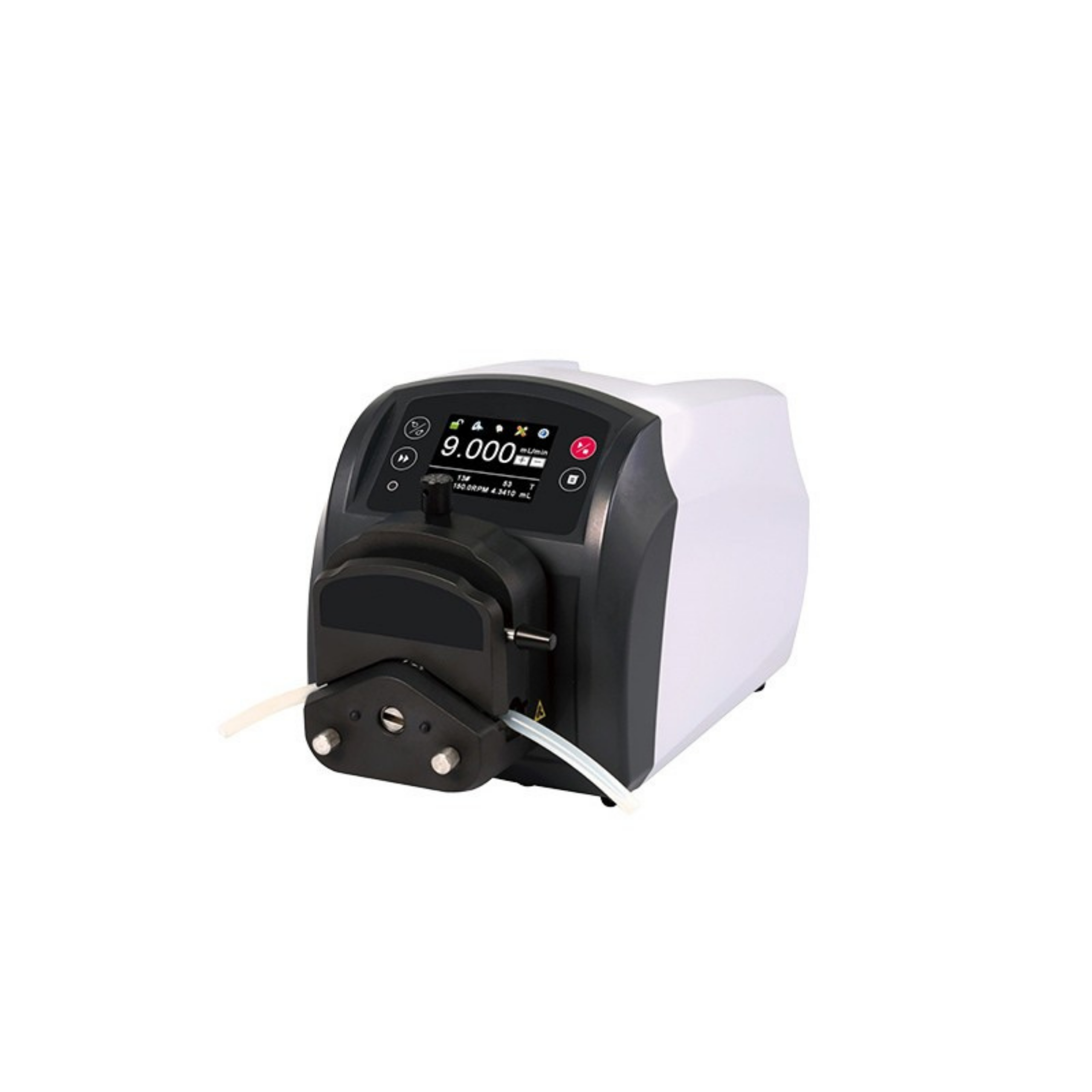

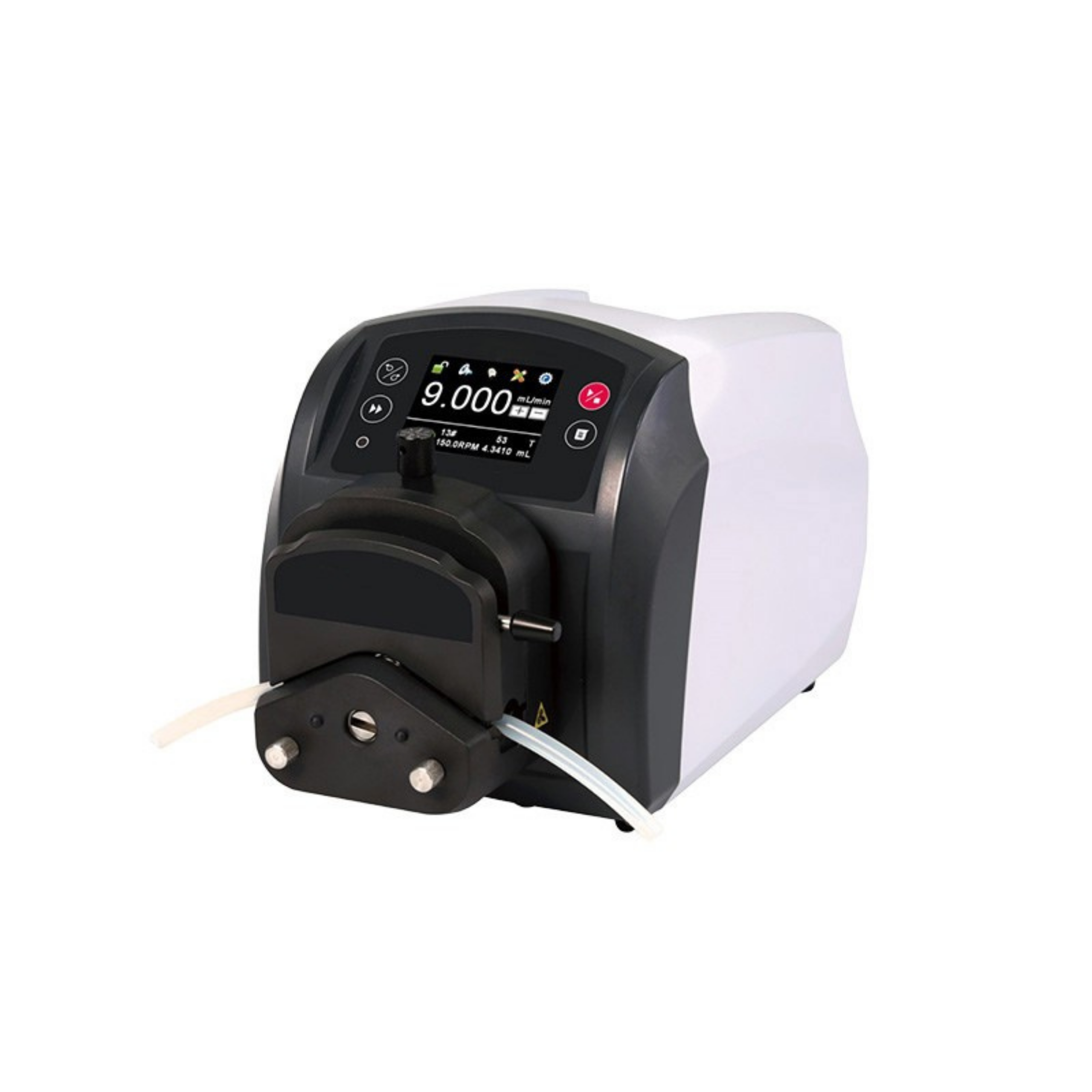

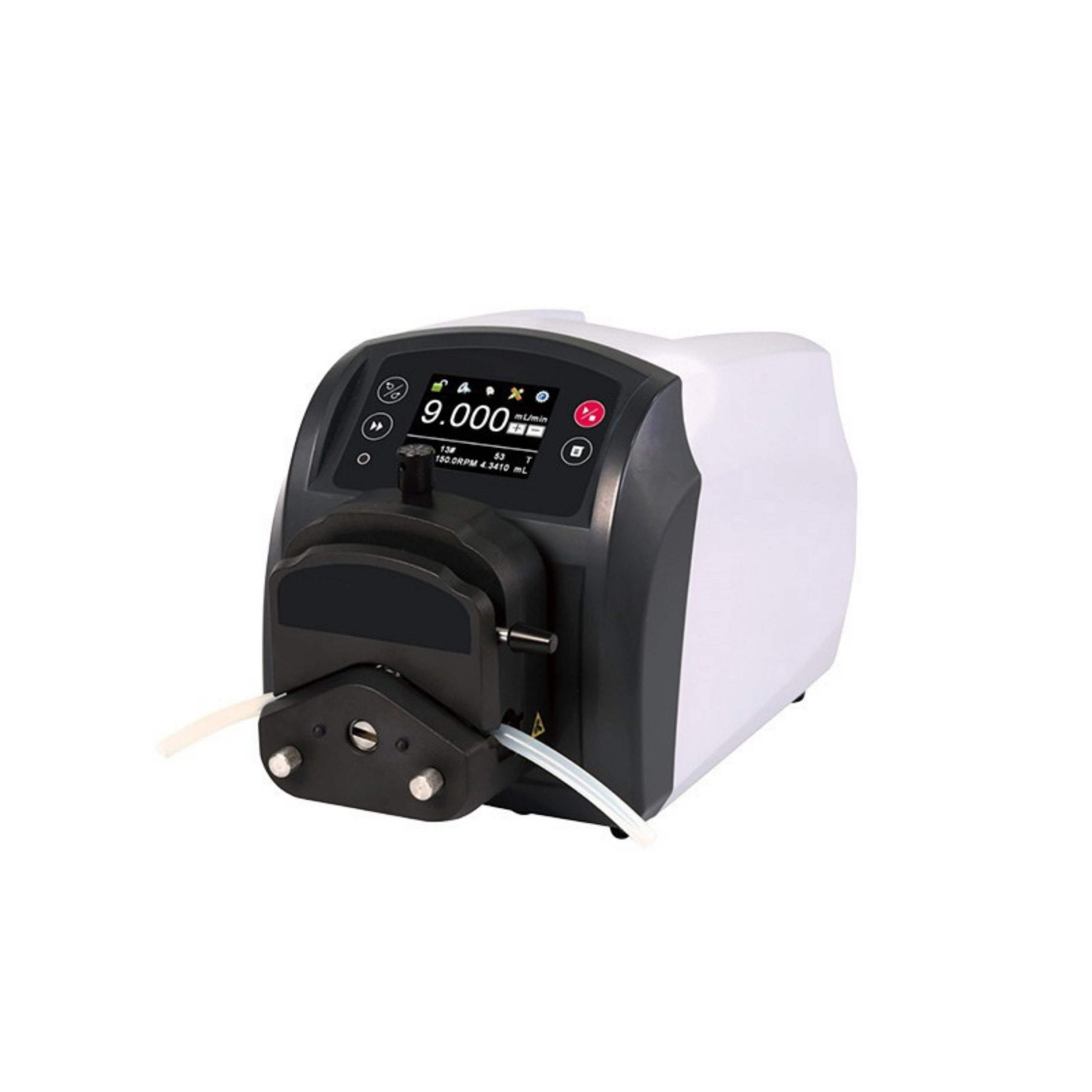

Flow Rate Peristaltic Pump BT-L Series

Description

Flow Rate Peristaltic Pump BT-L Series

Features:

1. Color LCD display, touch screen and keypad for operating.

2. LF-Touch-OS software system, efficient and stable, with good human-computer interaction mode, convenient product customization and upgrade.

3. Start/stop, reversible direction, full speed, adjust speed and state memory(power-down memory).

4. Speed resolution 0.1rpm.

5. Flow display, flow control and flow accumulation.

6. Flow calibration function.

7. Easy dispensing function, it realizes the repeat timing quantitative dispensing without the time controller.

8. Intelligent temperature control function to minimize peristaltic pump noise, 45 decibel super mute design.

9. External high-low electrical level controls the start/stop, reversible direction and easy dispensing function, optically coupled isolator, external analog adjusts the rotate speed.

10. RS485 interface, MODBUS protocol is available, easy to connect other equipment.

11. The internal structure adopts double-deck isolation design, and the circuit board with conformal coating makes it dust-proof and moisture-proof.

12. Super anti-interference feature, wide input voltage range, acceptable for the complex power environment.

13. ABS plastic housing, creative streamlined appearance, concise and beautiful.

14. Can drive multi-channels and various types of pump heads.

Technical Parameters:

Model

BT101L

BT301L

BT601L

Flow Range

0.0001~720ml/min

0.005~1750ml/min

0.006~3000ml/min

Rotation Range

0.1~150rpm

0.1~350rpm

0.1~600rpm

Speed Resolution

0.1rpm

Speed Accuracy

<±0.2% Power Supply AC100~240V, 50Hz/60Hz Power <30W <40W <50W External Control Interface External control input level 5V, 12V(standard), 24V(optional); External control analog 0~5V(standard), 0~10V, 4~20mA(optional) Communication Interface RS485 communication, compatible with Modbus protocol Working Environment Ambient temperature 0~40°C, relative humidity <80% Protection Level IP31 Overall Dimensions(L*W*H) 261*180*197mm Drive Weight 4.5kg 4.7kg 4.9kg Packing Size 430*290*320mm Gross Weight 8kg Pump Head:   Applicable Pump Head, Hose& Flow Parameters Driver Model Applicable Pump Head Number Of Channels Applicable Hose Single Channel Flow Rate(ml/min) BT101L DG/DS(6 rollers) 1, 2, 4 Wall 0.8~1mm, ID≤3.17mm 0.0002~49 DG/DS(10 rollers) 1, 2, 4 Wall 0.8~1mm, ID≤3.17mm 0.00011~32 YZ15/YZ15T 1, 2 13#14#19#15#25#17#18# 0.005~641 YT25 1 114#116#15#24#35#36# 0.024~750 BT301L YZ15/YZ15T 1, 2 3#14#19#16#25#17#18# 0.005~1495 YT25 1 114#116#15#24#35#36# 0.024~1750 BT601L YZ15/YZ15T 1, 2 13#14#19#16#25#17#18# 0.005~2562 YT25 1 114#116#15#24#35#36# 0.024~3000 Remark: Customers can choose any one model hose as the standard configuration and the standard length is 2 meters.
