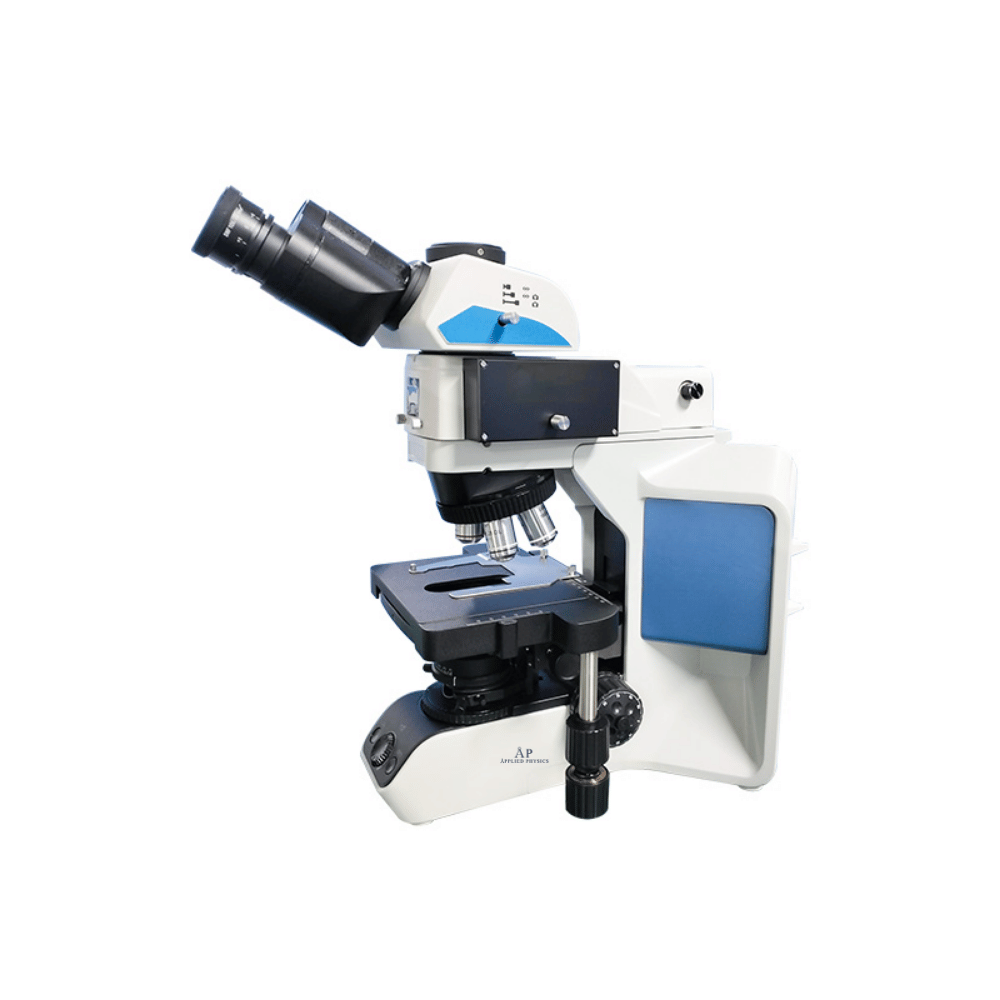

Fluorescence Biological Microscope BFM-43

Fluorescence Biological Microscope BFM-43

$0.00

Fluorescence biological microscopy ‌ is a microscope that uses fluorescent substances to fluorescein biological samples at specific wavelengths to enhance microscope imaging. It is mainly used to observe and study the structure, function and dynamic processes of cells, tissues and biomolecules, and is widely used in biological research.

SKU: AP-BK-MICF-16 Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Technical Parameters:

Model BFM-43
Eyepiece WF10×/23mm
View Head Hinged trinocular viewing head inclined at 30°, interpupillary 50~75mm
Objective Infinity plan semi-apochromat objective: 4x/0.13mm WD, 17.15mm

Infinity plan semi-apochromat objective: 10x/0.3mm WD, 7.68mm

Infinity plan semi-apochromat objective: 40x/0.75mm WD, 0.78mm

Infinity plan semi-apochromat objective: 100x/1.30mm WD, 0.15mm
Fluorescence Accessories Standard:

① UV Bandpass: 355/50nm; DM: 410nm; EM: 420nm(LP);

② Blue Bandpass: EX: 475/30nm; DM: 500nm; EM: 520nm(LP);

③ Green Bandpass: EX: 530/40nm; DM: 570nm; EM: 590nm(LP).
Nosepiece 5-hole nosepiece
Stage Highly wear-resistant ceramic-coated stage, 80*50mm travel, 1mm/division, 0.1mm accuracy
Transmitted Illumination System Warm white LED, continuously adjustable brightness, Abbe condenser, N.A. 1.1
Power Supply AC100~240V, 50/60Hz
Packing Size(L*W*H) 470*400*480mm; 490*380*750mm
Gross Weight 17.1kg; 12.4kg
