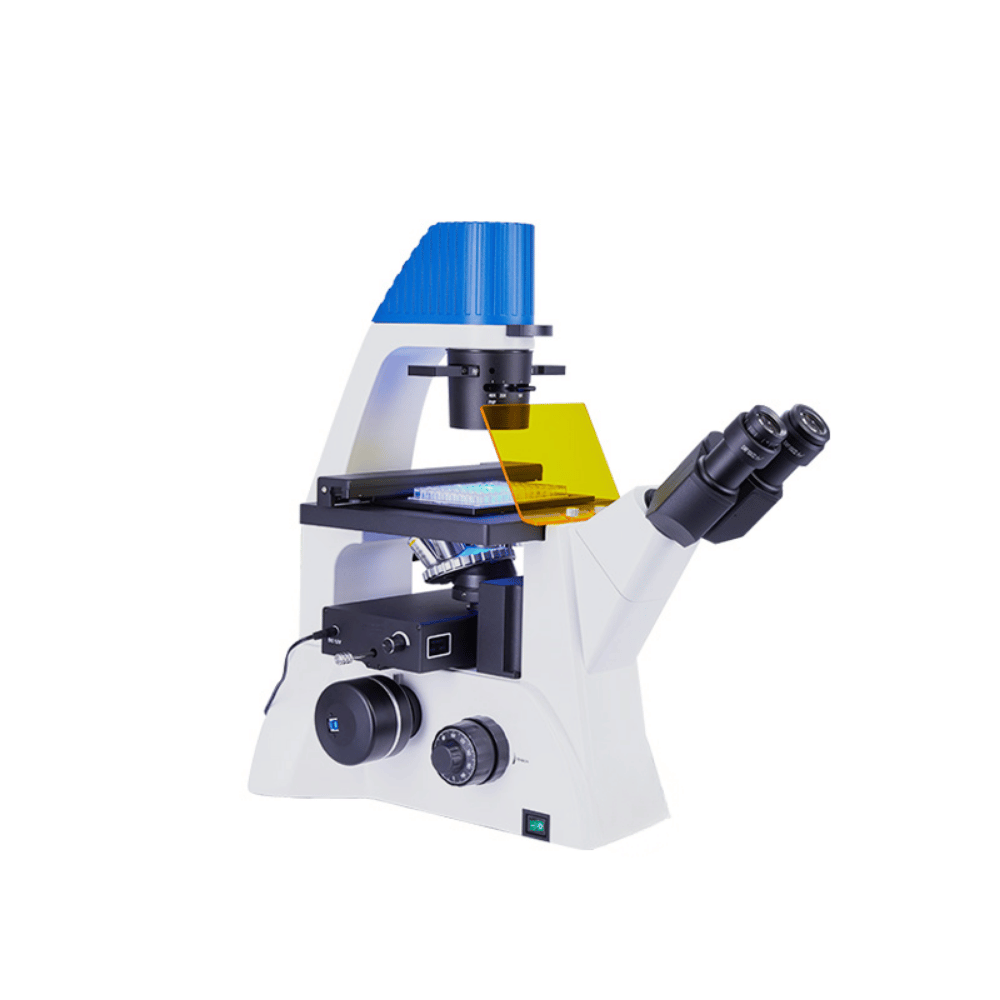

Description
Technical Parameters:
| Model | BFM-52 |
| Eyepiece | WF10×/22mm |
| View Head | Binocular viewing head, interpupillary distance adjustment range: 53~75mm |
| Objective | Plan achromatic objective 4× Long working distance plan objective 10× Long working distance plan objective 40× Long working distance plan phase contrast objective 10×PH Long working distance plan phase contrast objective 20×PH Long working distance plan phase contrast objective 40×PH(Optional) |
| Fluorescence Accessories | Standard: Ultraviolet(UV) EX: 375/28nm; DM: 415nm; EM: 460/50nm Blue(B) EX: 470/40nm; DM: 505nm; EM: 535/40nm Green(G) EX: 530/40nm; DM: 565nm; EM: 605/55nm |
| Focusing System | Coaxial coarse and fine adjustment, equipped with limit device and locking device, low hand position coaxial focusing hand wheel, fine adjustment hand wheel value 2μm, focusing stroke 11mm |
| Nosepiece | 5-hole nosepiece |
| Stage | (1) Fixed stage size: 227*208mm; mechanical movement, range of movement: 135*77mm (2) Round transparent stage plate: outer ring φ118mm, inner ring φ68mm (3) Inner groove size of culture dish holder: 86*129.5mm, suitable for round culture dishes φ90mm (4) Equipped with universal sample clamp: outer size 128*86mm; inner groove specifications: 82*56mm, 77*33mm, 77*26mm, also suitable for culture dishes φ35mm, φ50mm, φ60mm, φ68mm (5) Flip plate(optional) |
| Illumination System | Brightfield illumination system: Ultra-long-life 9W LED light source with a lifespan of over 20,000 hours and adjustable brightness. Fluorescent illumination system: LED cold light source with continuously adjustable brightness. |
| Power Supply | AC100~240V, 50/60Hz |
| Packing Size(L*W*H) | 485*340*640mm; 364*304*155mm |
| Gross Weight | 16kg; 2.3kg |
