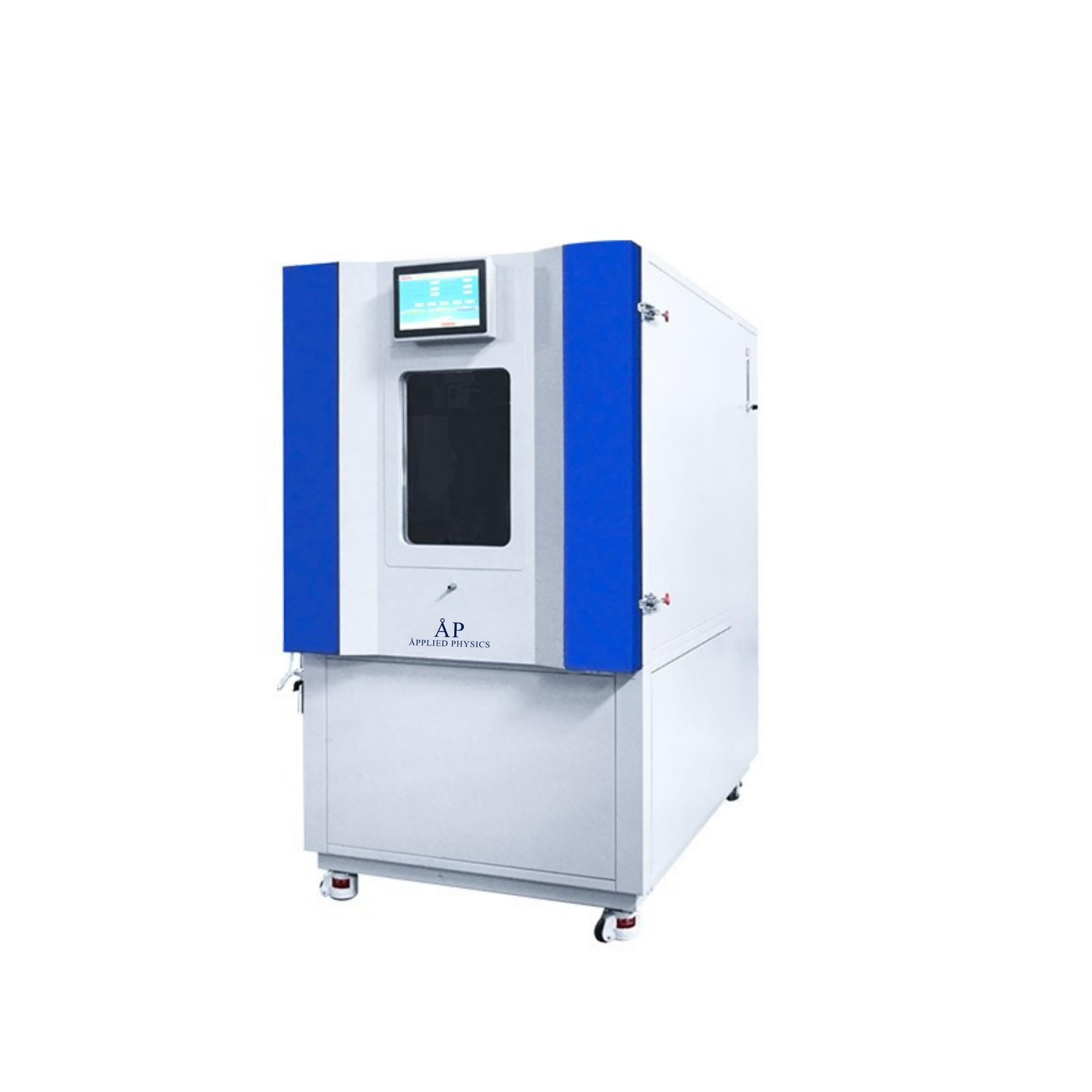

Formaldehyde Emission Test Chamber
Features:
* Overtemperature alarm, dew point overtemperature alarm, low water level alarm.
* Real-time curve, system temperature, humidity, dew point temperature can be viewed in the display screen.
* Temperature and humidity controller, touch screen and PLC control module, microcomputer automatic control.
* The box structure adopts jacket design.
* Power off protection function.
Technical Parameter:
Model
BJPX-FE801-3
Temp Range
15~40℃
Temp Accuracy
±0.5℃
Humidity Range
40~80%RH
Humidity Accuracy
±3%RH
Air Exchange Rate Range
0.2~2m3/h(Air change rate 0.2~2 times/h)
Air Exchange Rate Accuracy
Ventilation rate±1%
Air Flow Rate
0.1~2m/s
Air Rate Accuracy
≤0.05m/s
Test Chamber Size
1±0.02m3
Internal Size
800*1000*1150mm
Pressure
10±5Pa
Sealing
Under 1KPa relative pressure, leakage rate ≤1* m3/min
Constant Temperature Box
Polyurethane and insulation board
Outer wall: steel plate, white spraying
Inner wall: 304 stainless steel plate
Background Concentrations
Formaldehyde＜0.006mg/m3
TVOC＜0.05mg/m3
Single VOC＜0.005mg/m3
Consumption
Starting power≤4kw
Running power 2kw
Power Supply
Standard: 220V 50/60Hz
Optional: 110V 50/60Hz
External Size
1750*1150*1860mm
Net Weight
450kg
| Model | and can be used for the detection of other volatile harmful gases. The indoor climate environment is simulated realistically, and carpet adhesives, and interior decoration materials such as carpets, and the detection results are closer to the real environment, BJPX-FE801-3 is suitable for the determination of formaldehyde emission of various wood-based panels, carpet pads, composite wood floors, so they are real and reliable. |
|---|
