Description

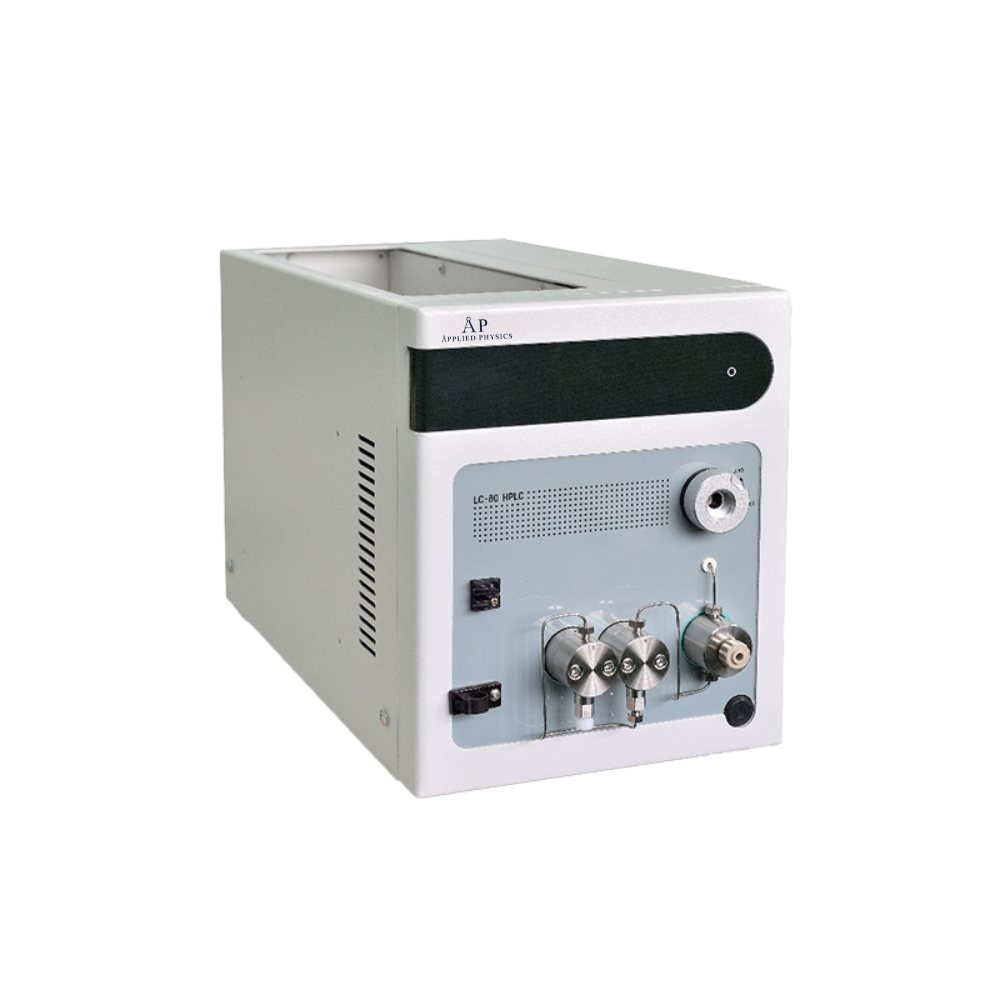

Features: 1. The original pipelines and signal lines between the units are integrated into the instrument, which is convenient for installation and maintenance, economical and efficient. 2. The one-way valve is upgraded to an integrated one-way valve, which greatly reduces the maintenance cost while ensuring the service life of the instrument. 3. Intelligent networked chromatography management workstation software is configured. 4. Liquid leakage alarm, pump head pressure loss alarm, etc. are configured. Technical Parameters:
| Model | BK-80HPLC(Type I) Isocratic Manual System | BK-80HPLC(Type II) Isocratic Manual System |
| Flow Range | 0.001~5.000ml/min | |
| Flow Stability Error SR | <0.1% | |
| Flow Setting Value Error SS | ≤±1% | |
| Maximum Working Pressure | 40MPa | |
| Qualitative Repeatability | RSD6≤±0.2%(naphthalene/methanol standard) | |
| Quantitative Repeatability | RSD6≤±0.5%(naphthalene/methanol standard) | |
| Pressure Fluctuation | 0.1MPa | |
| Spectrum Bandwidth | 8nm | |
| Wavelength Accuracy | ±1nm | |
| Wavelength Precision | Below 0.1nm | |
| Noise | ≤0.25×10⁻⁵AU(static)/±1×10⁻⁵AU(dynamic, under given conditions) | |
| Drift | ≤0.4×10⁻³AU/h(static)/≤2×10⁻³AU/h(dynamic, under given conditions) | |
| Minimum Detectable Concentration | 5×10⁻⁹g/mL(naphthalene/methanol solution) | |
| Configuration | Main unit(Isocratic+UV detector), injection valve, control software, 150mm C18 column | Main unit(Isocratic+UV detector), injection valve, control software, 250mm C18 column |
| Optional Accessories | Column, column oven | |
| Power Supply | Standard: AC220V, 50/60Hz; Optional: 110V, 50/60Hz | |
| External Size(W*D*H) | 220*455*267mm | |
| Packing Size(W*D*H) | 450*630*450mm | |
| Gross Weight | 20kg | |
