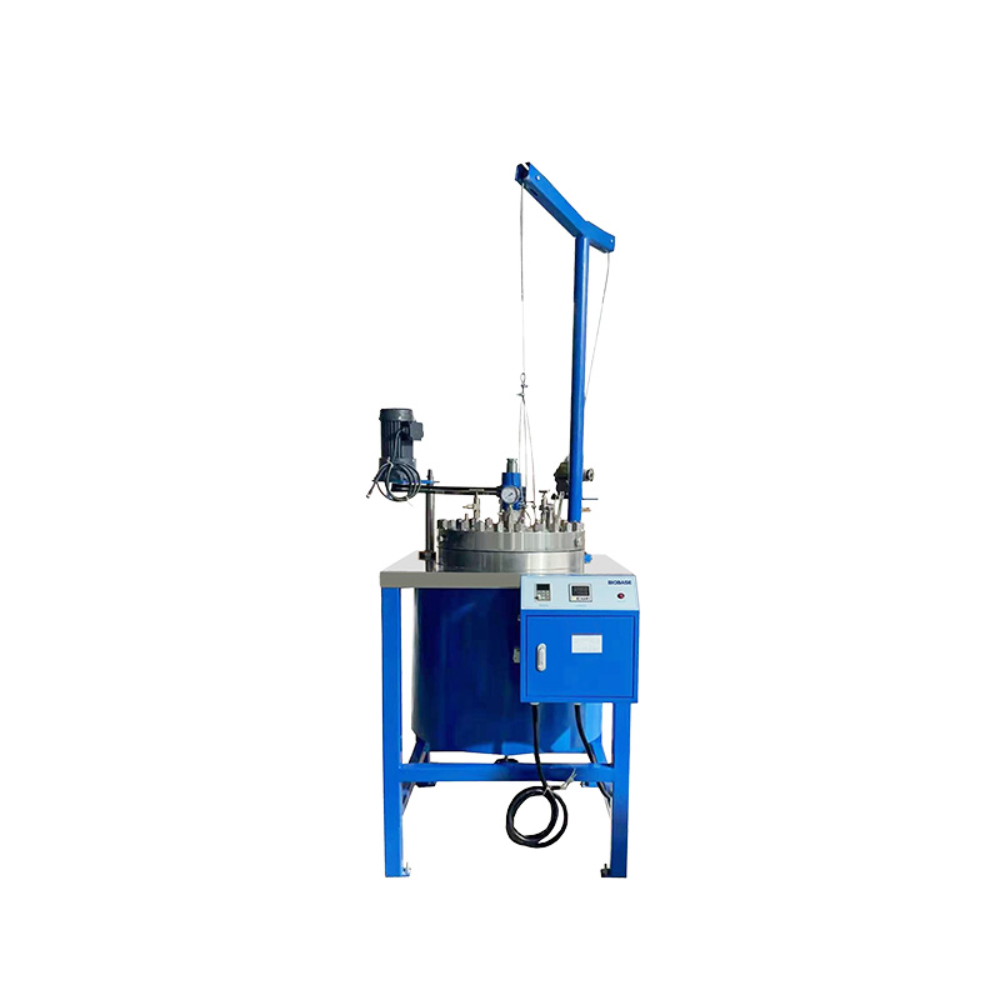

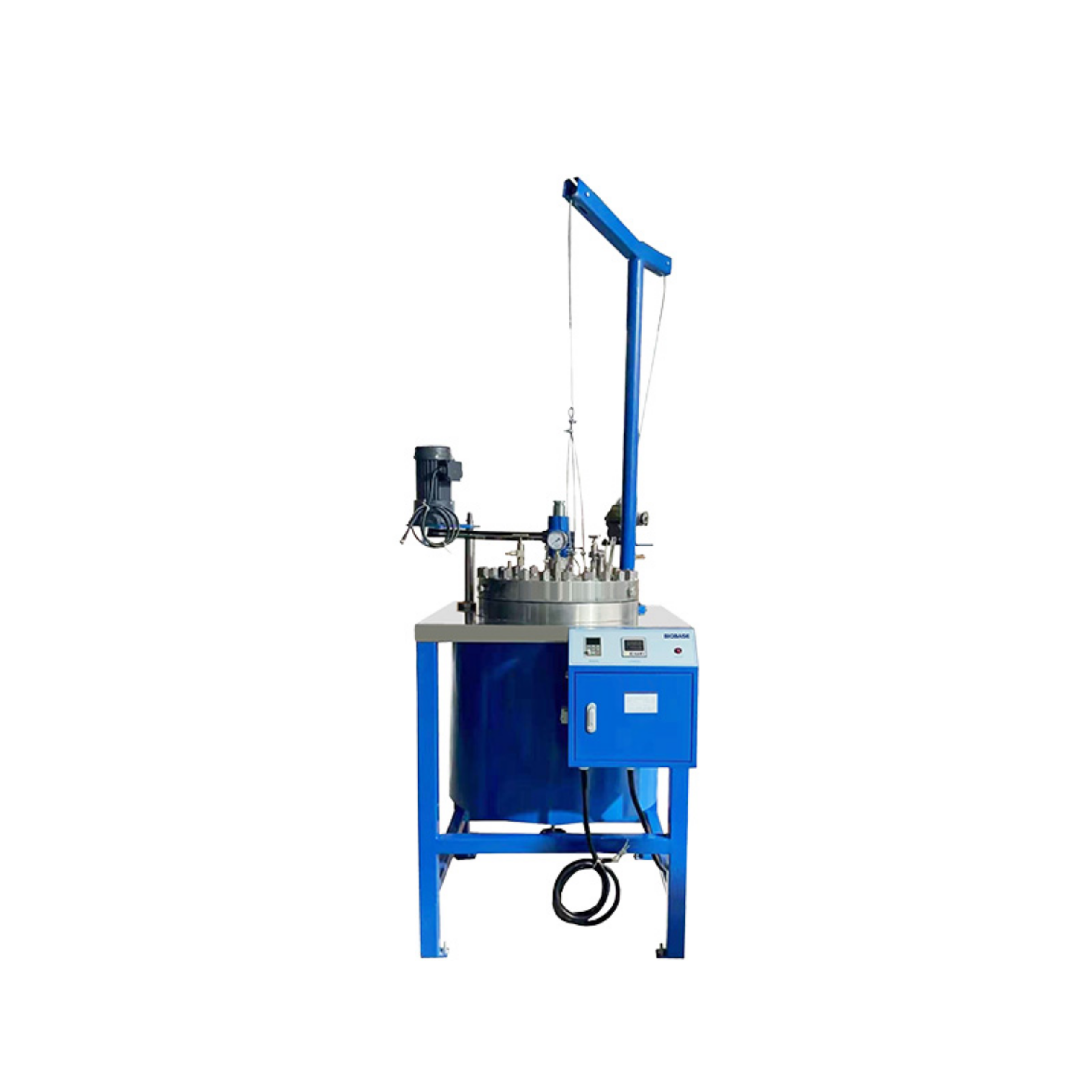

Description
Features: 1. Real-time monitoring of reaction pressure in the kettle. 2. High power agitator motor, strong and stable performance. 3. Using static sealing structure, the stirrer and the motor drive are connected by a magneticcoupling. 4. The medium and mixing parts are completely sealed to work. Technical Parameters:
| Model | HPR-0.5L | HPR-1L | HPR-2L | HPR-3L | HPR-5L | HPR-10L | HPR-20L | HPR-50L |
| Capacity | 0.5rpm | 1rpm | 2rpm | 3rpm | 5rpm | 10rpm | 20rpm | 50rpm |
| Pressure | 22MPa | 10MPa | ||||||
| Temperature | 350°C | |||||||
| Stirring Speed | 50~1000rpm | 50~600rpm | ||||||
| Material | SS304/SS316/Hastelloy alloy | |||||||
| Heating Power | 1.5kW | 1.5kW | 2kW | 3kW | 4kW | 8kW | 10kW | 15kW |
| Power Supply | Standard: 220V, 50/60Hz; optional: 110V, 50/60Hz | Standard: 220V, 50/60Hz; optional: 380V, 50/60Hz | 380V, 50/60Hz | |||||
| Packing Size(W*D*H) | 620*480*1430mm | 490*690*1490mm | 740*590*1590mm | 770*520*1580mm | 840*590*1650mm | 1040*690*1450mm | 1020*870*1430mm | 1700*820*1580mm |
| Gross Weight | 100kg | 105kg | 160kg | 180kg | 205kg | |||
