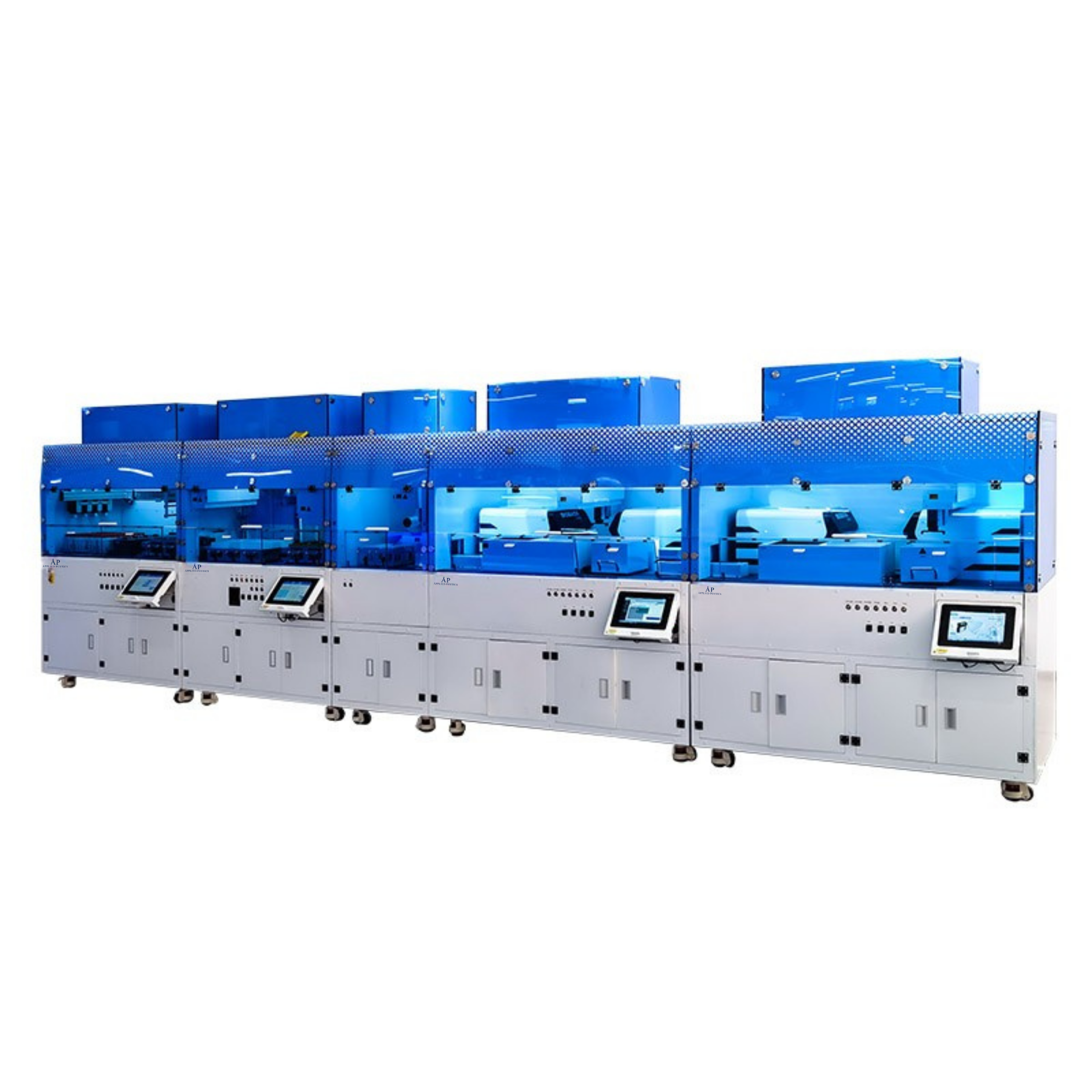

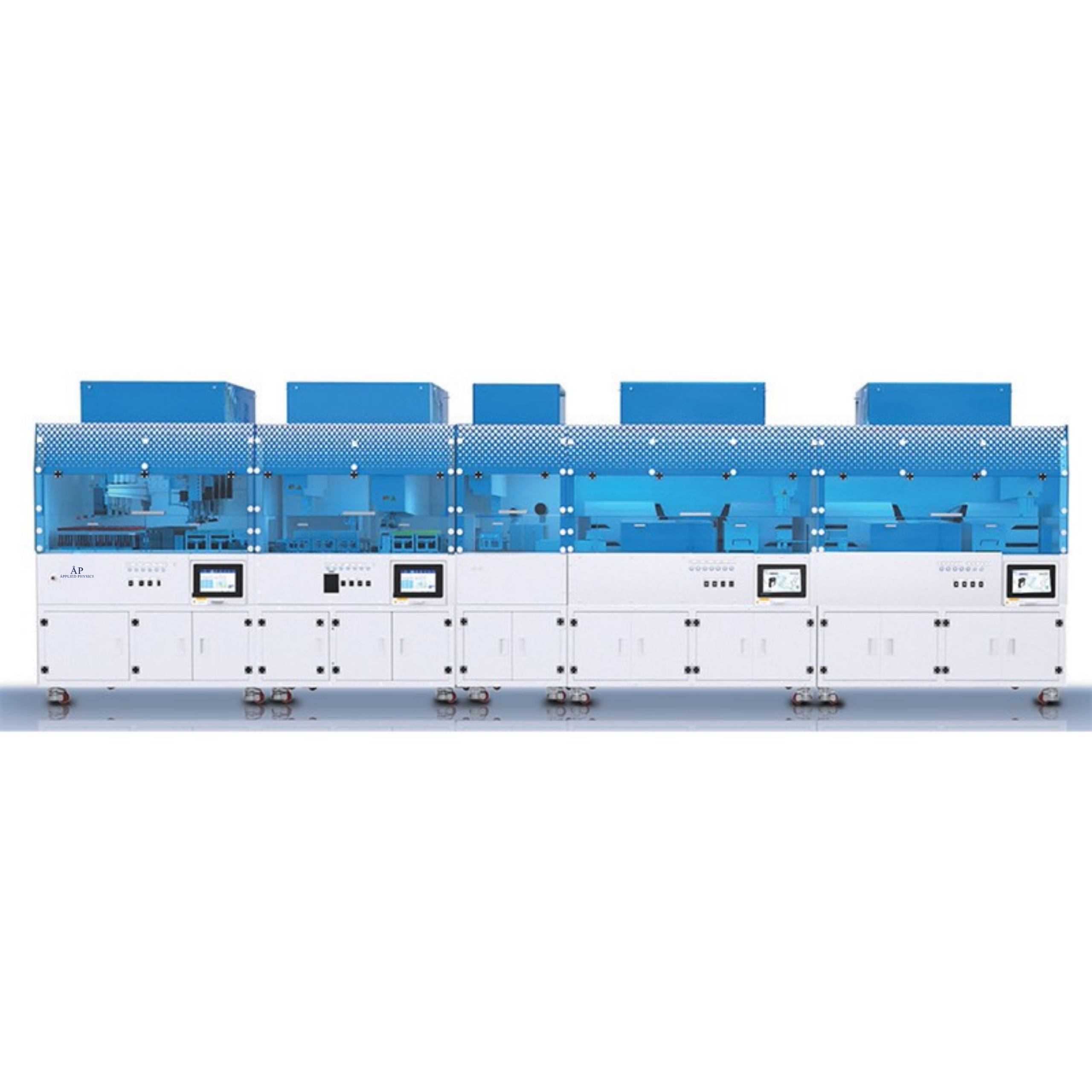

High-throughput Nucleic Acid Detection Workstation

High-throughput Nucleic Acid Detection Workstation Feature Technical Parameters Throughput 1-96 Speed Daily inspection volume ≥ 6000 tubes Adding Sample 2-1000ul Temperature Accuracy ±0.3℃ Temperature Uniformity ±0.3℃ Module Temperature Range 4-100℃ Sample Volume 10-50ul Fluorescence Channel 4 channels, FM , VIC , ROX , Cy5 Machine Function Putting the original tube on the machine + sample splitting + nucleic acid extraction + R C R system construction + amplification detection Sample Loading Method Flow loading, single sample volume 96 Consumables Added Flowing consumables, running without stopping Liquid Detection Scheme Pneumatic liquid level detection scheme, intelligent detection of blocked needle Sample Needle Specifications 50μl, 200μl, 1000μl optional, disposable black conductive needle with filter Sampling Tube Adaptation Suitable for conventional 5mL, 10mL, 20/30mL virus sampling tubes Protective Function Power-on self-test, high temperature alarm, over-temperature protection, needle removal and needle removal protection Disinfection &Decontamination Methods UV lamp (cup compartment + extraction compartment + extraction area + sealing compartment + testing compartment), multi-directional disinfection Touch Screen Four 10.1-inch capacitive touch screens External Size 6300*750*1900mm
