Description

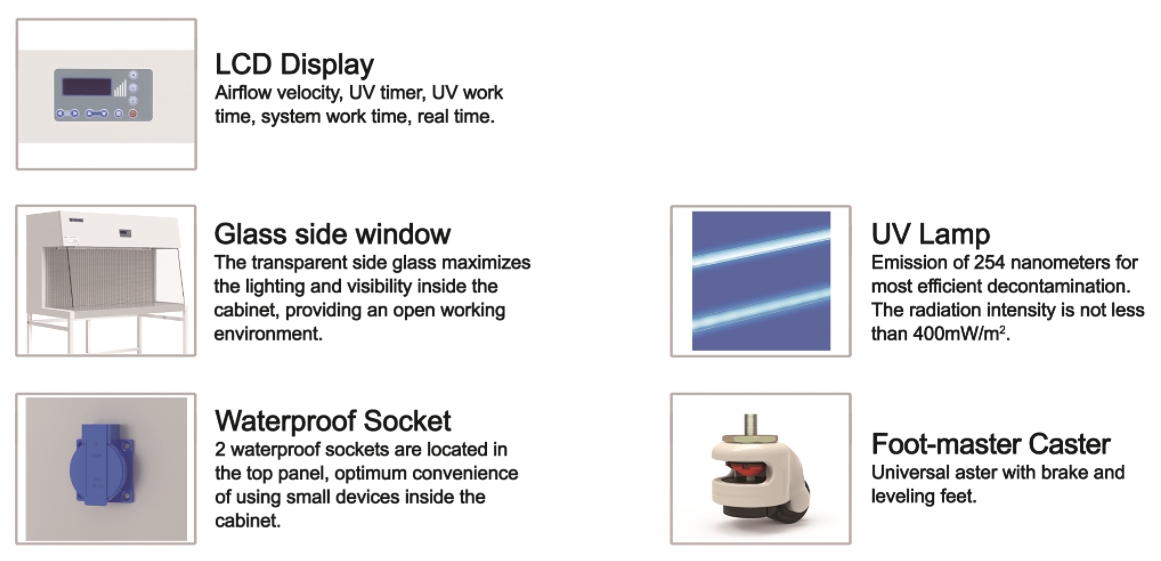

Laminar Flow Cabinet is used only for sample protection. Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream. Features: 1. Horizontal laminar flow, single-sided operation. 2. Made of high-quality cold rolled steel plate material, welding structure, surface electrostatic spraying, enhancing the stability of the cabinet. 3. Equipped with pre-flter, which can preliminarily filter large particulate matter, thus improving the service life of HEPA filter. 4. Work zone is made of SUS304 material, beautiful and corrosion resistance. 5. Footmaster casters design, convenient cabinet movement and fixation. 6. LCD screen, real-time display of running status(air velocity, timer, UV lamp time, HEPA filter running time). 7. With ultraviolet lamp, fan appointment timing function. 8. Unit conversion function, which switches units between PA and m/s. 9. The UV lamp is turned on after 5s to protect the safety of the operators. 10. Perfect alarm system: (1) Ultra-high filter pressure alarm (2) Filter failure replacement alarm (3) Low wind speed alarm 11. Interlocking function: UV lamp and fan, fluorescent lamp.
Technical Parameters for BBS-H1800(X):
| Parameter | Specification |
|---|---|
| External Size (WDH) | 1800 × 808 × 1890 mm |
| Internal Size (WDH) | 1700 × 500 × 800 mm |
| Work Surface Height | 750 mm |
| Display | LCD display |
| Airflow Velocity | 0.30 ~ 0.45 m/s |
| Material | Working area: SUS304 stainless steel Main body: 1.0 mm cold-rolled steel with anti-bacteria powder coating Glass side window: 8 mm toughened glass, anti-UV |
| Pre-Filter | Polyester fiber, washable |
| HEPA Filter | One, 99.995% efficiency at 0.3 μm |
| Noise Level | ≤65 dB(A) |
| Illumination | ≥300 lx |
| Vibration | ≤5 μm (rms) |
| Safety | Colonies Number ≤0.5 CFU/30 min |
| Clean Level | ISO level 5 (Class 100) |
| Waterproof Sockets | Two sockets |
| Max Power | 1000 W |
| Power Supply | AC220V ±10%, 50/60Hz (Standard) 110V ±10%, 60Hz (Optional) |
| Power Consumption | 1400 W |
| LED Lamp | 16 W × 2 |
| UV Lamp | 20 W × 2 (253.7 nm wavelength) |
| Standard Accessories | LED lamp, UV lamp × 2, Base stand, Waterproof socket × 2, Hook × 10 |
| Optional Accessory | Electric height adjustable base stand |
| Package Size (WDH) | 1940 × 1030 × 1550 mm |
| Gross Weight | 255 kg |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Clean-workstation quote checklist
Confirm product-protection objective, horizontal or vertical airflow preference, work-zone dimensions, process equipment inside the cabinet, electrical service, filtration and installation constraints.
Catalog relationship: Available Through Applied Physics
Related Applied Physics resources
Continue through the Medical portfolio
Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.
