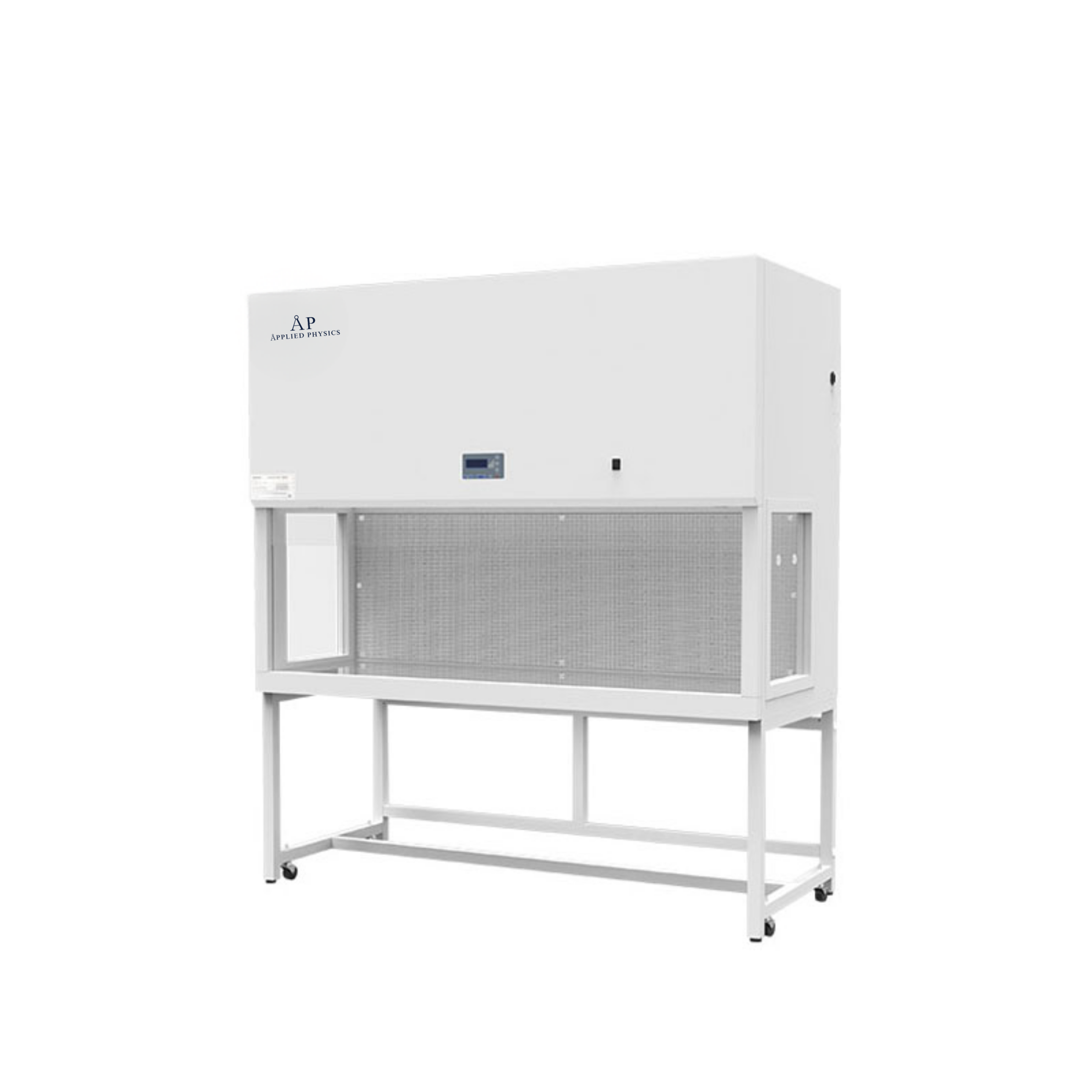

Horizontal Laminar Flow Cabinet BBS-H1300 BBS-H1800

Horizontal Laminar Flow Cabinet BBS-H1300 BBS-H1800

$0.00

Laminar Flow Cabinet is used only for sample protection. Laminar Flow Cabinet is a work bench or similar enclosure, which creates a particle-free working environment by taking air through a filtration system and exhausting it across a work surface in a laminar or unidirectional air stream.

Clean-workstation quote checklist

Confirm product-protection objective, horizontal or vertical airflow preference, work-zone dimensions, process equipment inside the cabinet, electrical service, filtration and installation constraints.

Request configuration guidance →
SKU: AP-BBS-HC-38 Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Horizontal Laminar Flow Cabinet BBS-H1300 BBS-H1800

laminar flow cabinetTechnical Parameters:

Model BBS-H1300 BBS-H1800
External Size(W*D*H) 1300*820*2040mm 1800*820*2070mm
Internal Size(W*D*H) 1200*500*570mm 1700*500*570mm
Work Surface Height 750mm

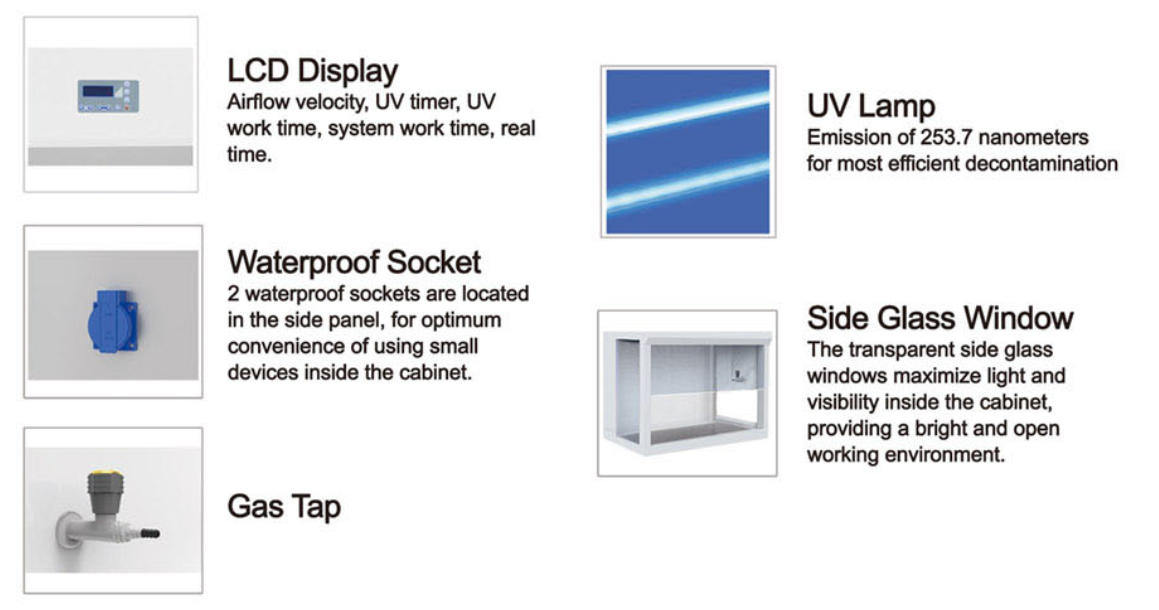

Display LCD display
Airflow Velocity Average of 0.3~0.5m/s
Material Main Body: Cold-rolled steel with anti-bacteria powder coating
Work Table: 304 stainless steel
Side and Front Window: 5mm toughened glass, anti-UV
Pre-filter Polyester fiber, washable
HEPA Filter 99.995% efficiency at 0.3μm
Noise <65dB
Front Window Motorized
Max Opening 430mm
LED Lamp 12W*1 16W*2
UV Lamp 30W*1 30W*1
Emission of 253.7 nanometers
Consumption 400W 500W
Waterproof Socket Two, total load≤500W
Caster Universal caster with leveling feet
Power Supply AC220V±10%, 50/60Hz; 110V±10%, 60Hz
Standard Accessory LED lamp, UV lamp*2, Base stand, Gas tap, Waterproof socket*2, Water tap(only for BBS-H1800)
Optional Accessory Electric height adjustable base stand
Gross Weight 254kg 328kg
Package Size(W*D*H) 1450*1060*1650mm 1950*1060*1600mm

Additional information

Model

BBS-H1300, BBS-H1800
