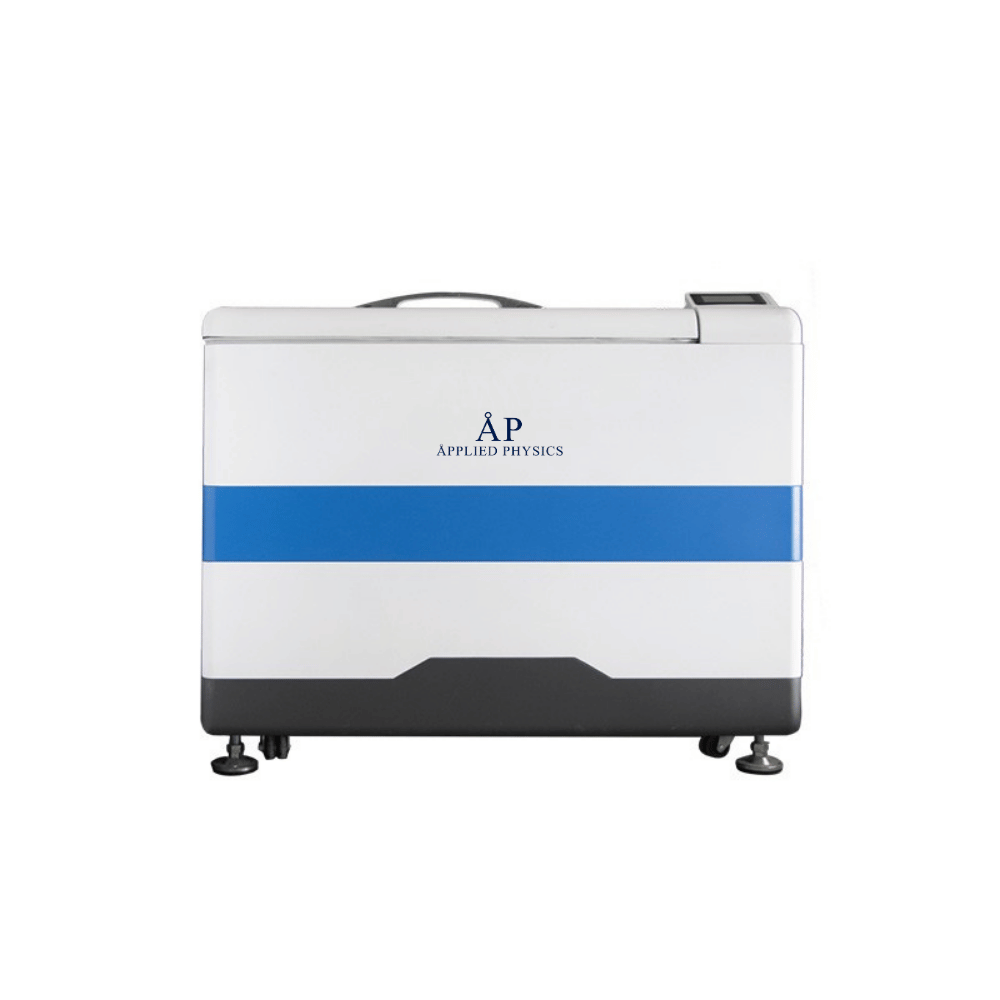

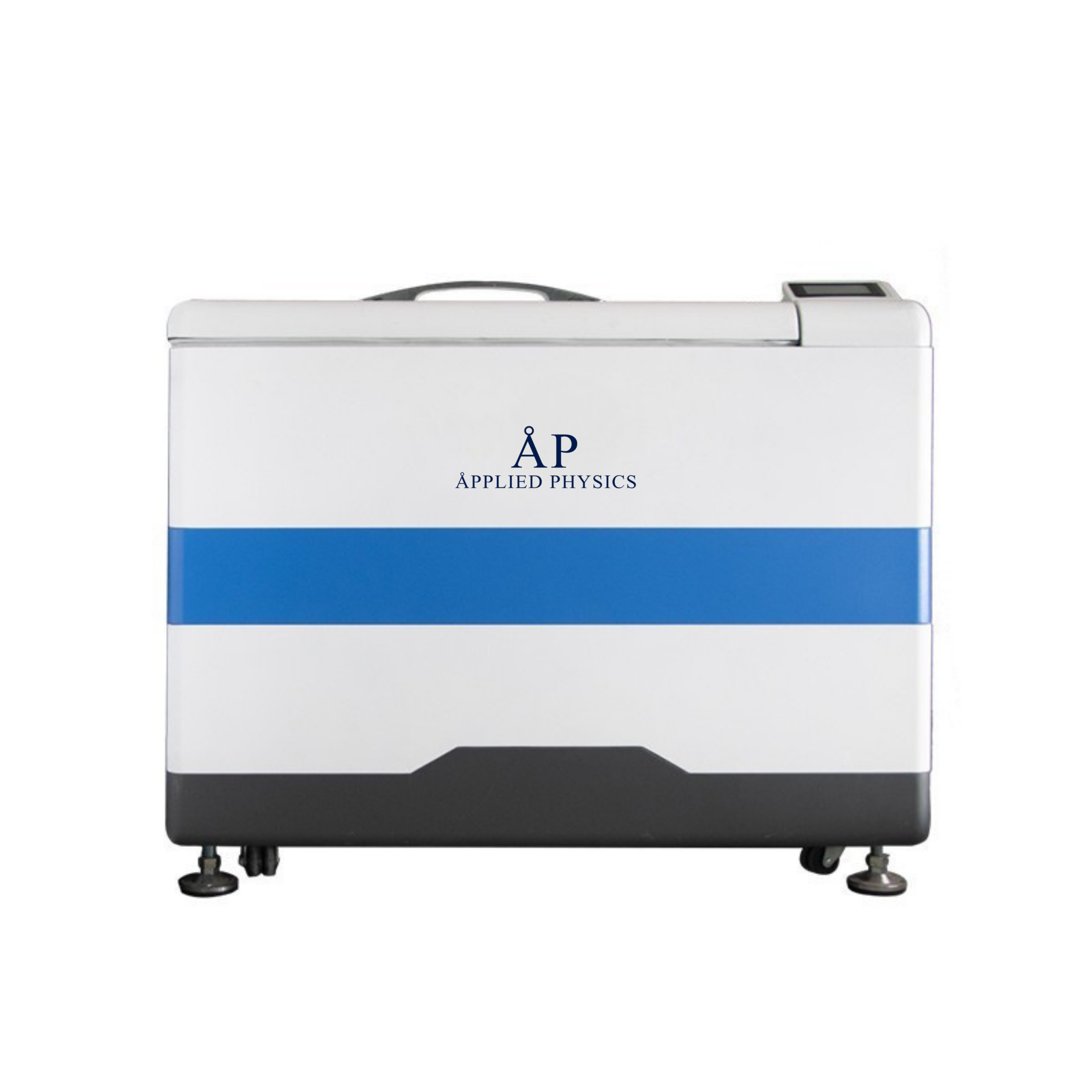

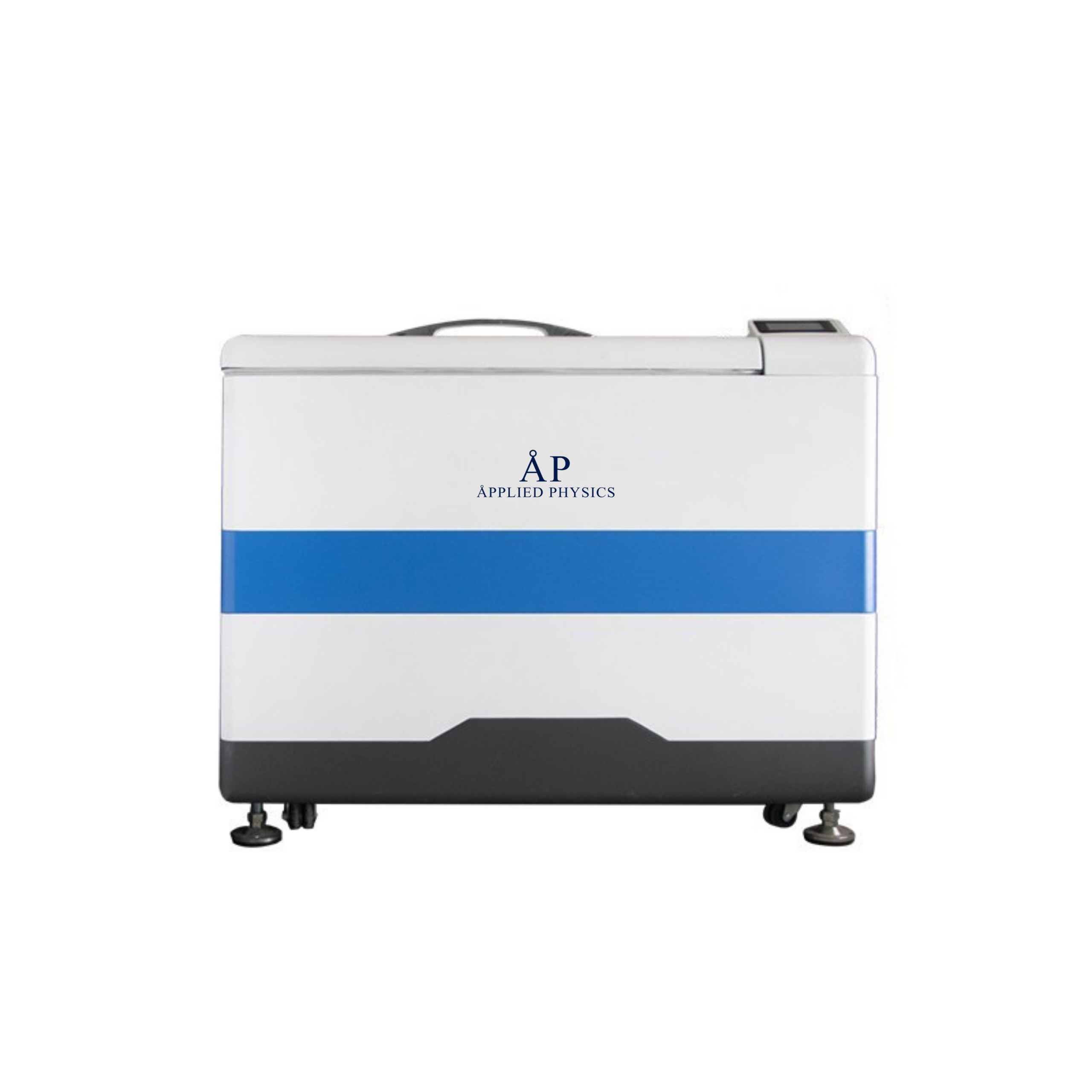

Horizontal Shaking Incubator BJPX-SW10 BJPX-SW10-L BJPX-SW20 BJPX-SW20-L

Description

Horizontal Shaking Incubator BJPX-SW10 BJPX-SW10-L BJPX-SW20 BJPX-SW20-L

Features:

1. Double Perspective Window

The large double-glazed observation window is both thermally insulated and sturdy, making it easy to watch the situation inside the box at any time.

2. Large Capacity

The super large internal space can hold up to 6 Erlenmeyer flasks with a capacity of 5000ml.

3. Humanized Design

The overall rounded corner design, micro switch, door opening and closing damping buffer, etc., protect the safety of operators in multiple directions.

4. Alarm Function

It has various alarm functions such as over-temperature, low-temperature, door opening, etc., to protect the safety of experimental samples to the greatest extent.



Technical Parameters:

Model

BJPX-SW10

BJPX-SW10-L

BJPX-SW20

BJPX-SW20-L

Shaking Amplitude

26mm

Shaking Method

Rotatory type

Display

5-inch LCD

Button display

5-inch LCD

Button display

Temp. Control Range

RT+5~60℃

4~60℃

Shaking Plate Size

900*470mm

Standard

Flask clamps 250ml*28/500ml*24/1000ml*15/2000ml*8/3000ml*6/5000ml*6.

If no request, 500ml*24 is default

Rotation Range r/min

30~300

Rotation Precision r/min

±1

Temp. Resolution ℃

0.1

Temp. Fluctuation ℃

≤±0.5

Temp. Uniformity ℃

≤±1（at 37° C）

Ambient Temp. ℃

15~35℃

Illumination

1 pc of light

UV

2 pcs of UV lights

Chamber Size mm

970*550*460

External Size mm

1280*760*1030

Curve Programming Set

Repeat, pace, eight curve programming setting

Time Set Range

0~999min

Power

1500w

Power Supply

Standard: 220V 50/60Hz; Optional: 110V 50/60Hz

Packing Size

1340*880*1212mm

Gross Weight

330kg

 Accessories:

Model

BJPX-SW10

BJPX-SW10-L

BJPX-SW20

BJPX-SW20-L

Max Flask Qty

50ml

95

100ml

64

150ml

42

250ml

40

500ml

28

1000ml

15

2000ml

8

3000ml

6

5000ml

6

Universal Spring Rack Qty

1

Tube Rack Qty

3

96 Elisa Plate

20

Rod Type Shaking Plate

2
