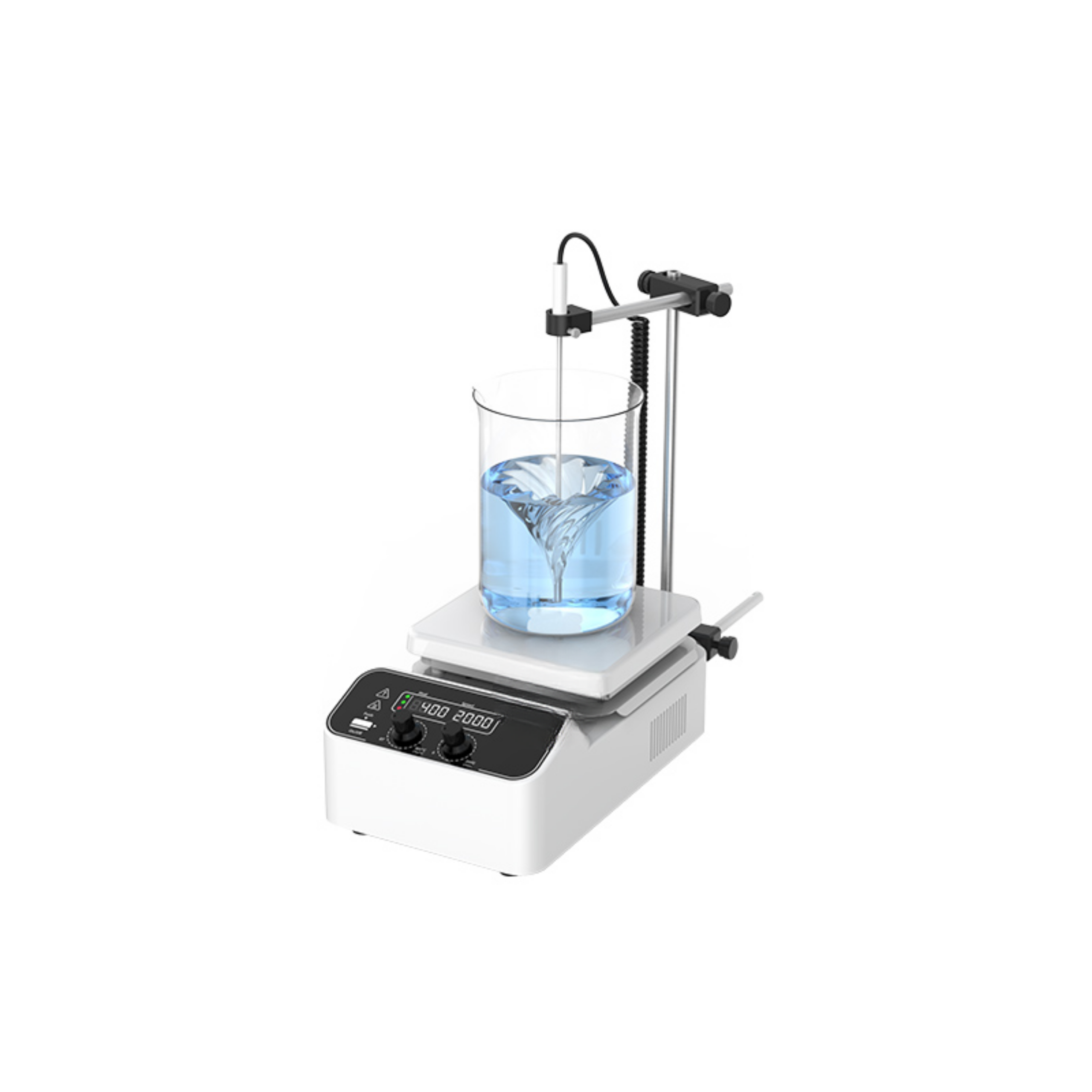

The Hotplate Magnetic Stirrer is a versatile laboratory instrument used for heating and stirring solutions simultaneously. It combines a heated surface with a magnetic stirrer, making it ideal for a wide range of chemical, biological, and medical applications where precise temperature control and uniform stirring are essential.
$0.00
Features:
1. Digital temperature control with a maximum temperature of 400°C.
2. The maximum rotation speed can reach 2000rpm.
3. The working plate with an aluminum die cast ceramic coated surface is highly resistant to chemical corrosion.
4. It can be externally connected to a PT1000 temperature sensor to precisely control the sample temperature, with a temperature control accuracy of ±0.2°C.
5. The LED display screen shows the temperature and rotation speed in real-time.
6. Safety circuit design: automatic power cut-off when the heating plate overheats to protect laboratory safety.
7. PID precise speed regulation ensures a smoother acceleration process and more accurate speed control.
8. Simple and aesthetic appearance, compact and delicate body, light weight, and it does not take up much laboratory space.
Technical Parameters:
| Model | BK-MS400 |
| Motor Type | DC brushless motor |
| Control Temp. Range | RT~400℃ |
| Stirring Speed | 150~2000rpm |
| Stirring Power | 36W |
| Heating Power | 650W |
| Temp. Display | LED |
| Rotation Display | LED |
| Heating Platform Material | Aluminum disc ceramic coating |
| Platform Size | 165*165mm |
| Max Capacity | 20L |
| Temp. Sensor | PT1000 |
| Ambient Temp.&Humidity | Temperature: 5~40℃; Humidity: ≤80% |
| Consumption | 700W |
| Power Supply | AC100~240V, 50/60Hz |
| Exteral Size(W*D*H) | 175*285*116mm |
| Packing Size(W*D*H) | 360*260*180mm |
| Net Weight | 4.5kg |
| Gross Weight | 5.4kg |
