Description

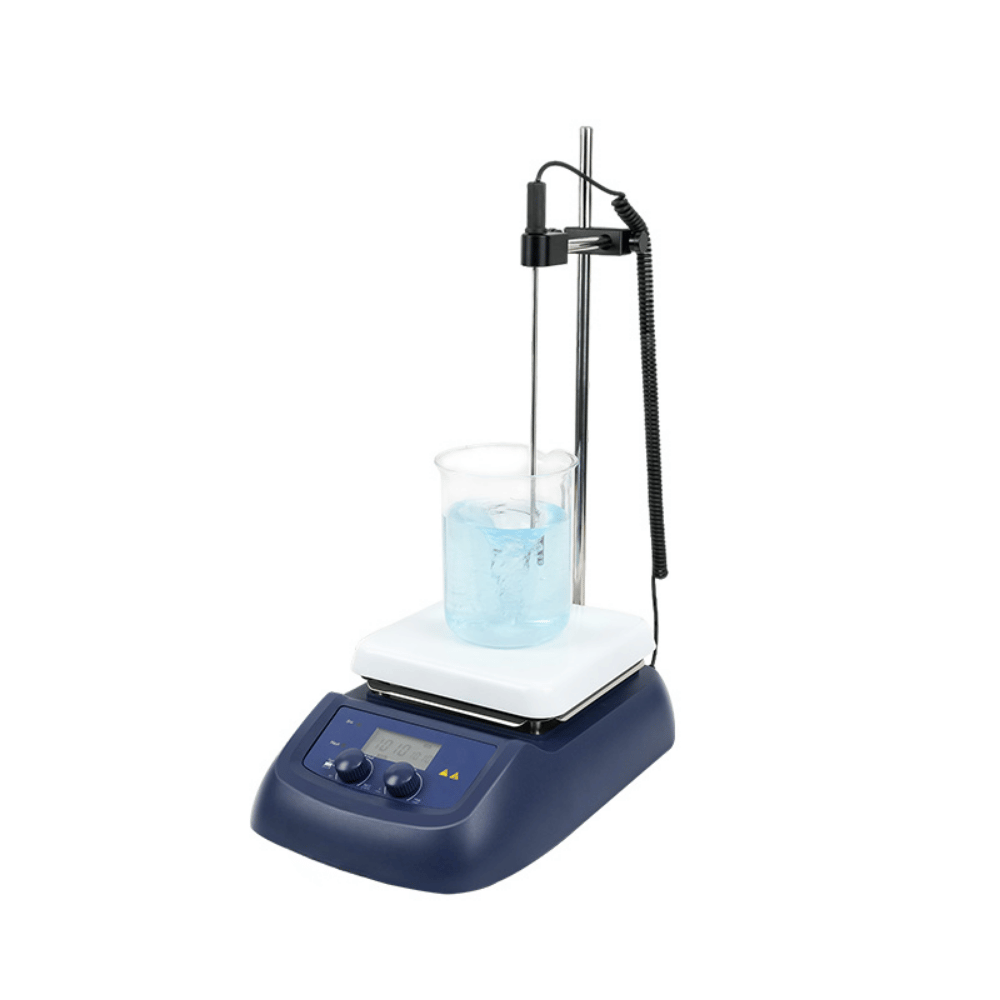

Features: 1. Aluminum cover with ceramic coating, strong corrosion resistance, easy to clean. 2. Efficient diversion platform and slope to prevent liquids from entering the machine and corroding electronic components. 3. Maximum heating temperature of 380℃, maximum stirring speed of 1500rpm, and maximum stirring volume of 20L[H₂O]. 4. LCD displays speed, time, and temperature parameters clearly and intuitively. 5. Can be connected to an external temperature sensor PT1000 for precise control of sample temperature. 6. Protection features: dry burn protection, over-current protection, ground fault protection, and over-temperature protection. 7. Residual heat warning function: when the disc surface temperature exceeds 50℃, heating will shut off, and the screen will flash “HOT” as a reminder of the high temperature, even if the power is turned off, the display will still flash “HOT”. Technical Parameters:
| Model | MS7-H380-E |
| Item No. | 8010122115 |
| Work Plate Size | 184*184mm |
| Work Plate Material | Aluminum cover with ceramic coating |
| Speed Range | 80~1500rpm |
| Display | LCD |
| Temperature Range | RT~380℃ Increment 1℃ |
| Max. Stirring Quantity(H2O) | 20L |
| Max. Magnetic Bar(Length) | 80*10mm |
| Heating Liquid Temperature Control | ±1℃(＜100℃) |
| Accuracy | ±1%(＞100℃) |
| Overheating Temperature Protection | 410℃ |
| External Temperature Sensor | PT1000(accuracy±0.2℃ ) |
| Standard Accessories | PT1000-A, temperature sensor(18901898); Support clamp of PT1000(18902044) |
| Consumption | 900W |
| Power Supply | AC110V±10%, 60Hz or AC220V±10, 50Hz |
| Protection Class | IP21 |
| External Size(W*D*H) | 366*240*126mm |
| Net Weight | 3.5kg |
| Packing Size(W*D*H) | 420*395*185mm |
| Gross Weight | 4.6kg |
