It is a device that produces high-purity hydrogen through electrolysis of water or other chemical methods. It is mainly used in laboratory analysis, industrial gas supply and other fields.
$0.00

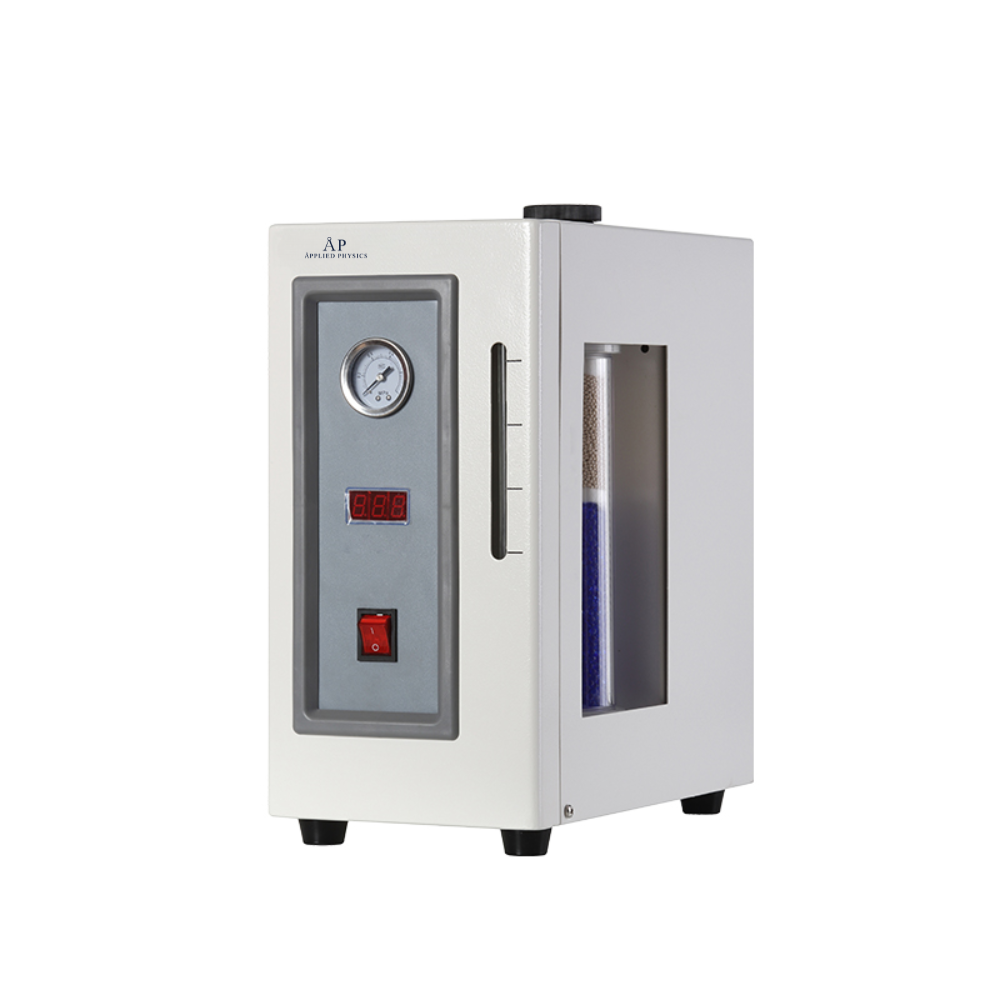

Hydrogen Generator HG-300II HG-500II
Features:
1. Easy to operate, safe and reliable, one-time add alkali, daily use only need to supplement distilled water. Turn on the power switch to produce hydrogen.
2. The air passage part is made of stainless steel pipe. Electrolytic polishing, ultrasonic cleaning. With over-pressure protection device, two-stage purification.
3. Unique anti-return device, to ensure that the instrument no liquid back phenomenon.
4. Cartridge type electrolytic tank, electrolytic materials imported special precious metals, effectively improve the electrolytic efficiency, constant cell temperature, promote the service life of the electrolytic tank greatly improved.
5. Stable output flow and automatic tracking. Purity does not decay, can be used continuously.
Technical Parameters:
Model
HG-300II
HG-500II
Output Flow(ml/min)
0~300ml/min
0~500ml/min
Output Pressure
0~0.5Mpa(Factory setting 0.4Mpa)
Purity
>99.999%
Surrounding Requirement
Temperature: 10~40°C
Humidity: ≤85%
Consumption
220W
Power Supply
AC220V±10%, 50Hz±5%(Standard); AC110V, 60Hz(Optional)
Instrument Size(W*D*H)
320*180*370mm
Package Size(W*D*H)
390*250*460mm
Net Weight
10kg
Gross Weight
14kg
| Model | HG-300II, HG-500II |
|---|
