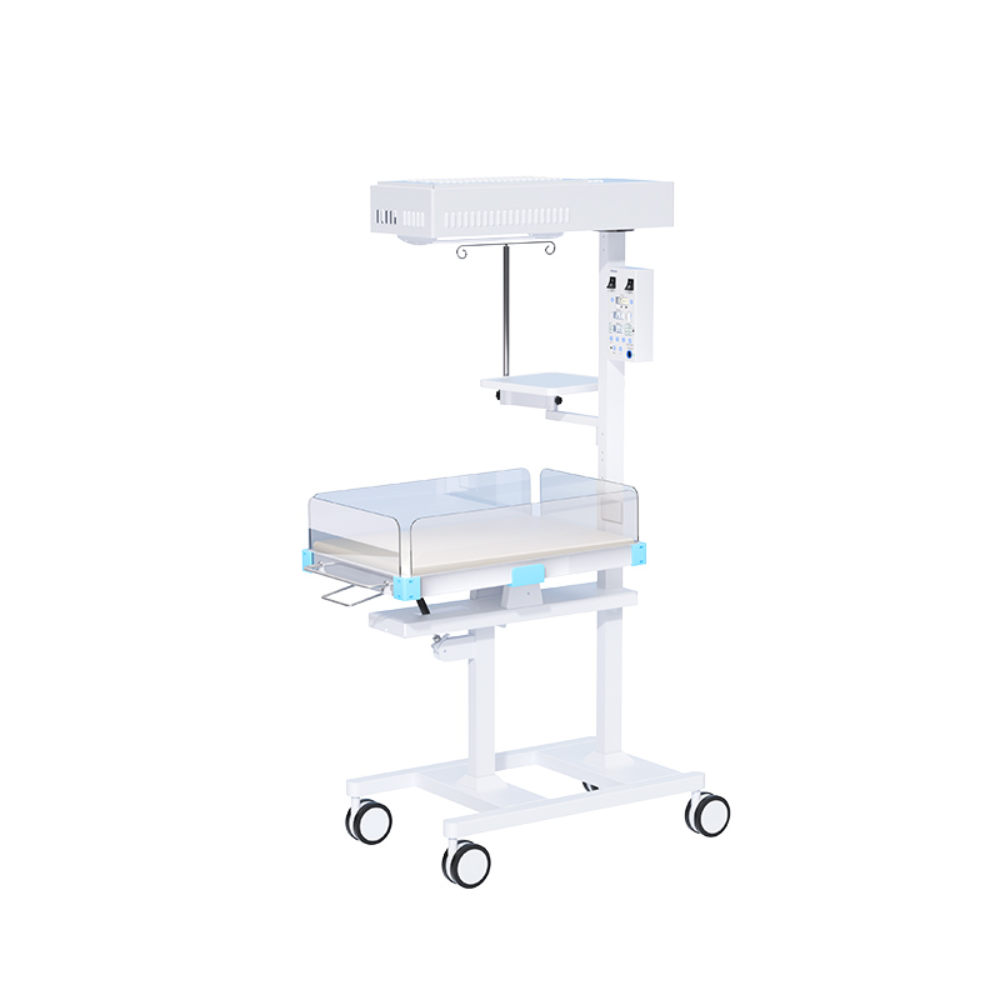

Infant Radiation Warmer

Description

Infant Radiation Warmer

Features:

1. Offers three temperature control modes: preheating, manual, and skin temperature.

2. Real-time LED split-screen display of set temperature, skin temperature, countdown, and heating power percentage.

3. Features an independent over-temperature protection system.

4. Adjustable horizontal angle of the radiation box and tilt angle of the infant bed.

5. Removable transparent acrylic panels around the infant bed for easy cleaning.

6. Sound and light alarms with self-check function for power failure, deviation, over-temperature, sensor failure, manual operation, and system alarms.

7. Temperature calibration function.

8. Skin temperature sensor disconnection alert.

9. APGAR score countdown function.

10. Reserved RS-232 interface for data connectivity.

11. LED lighting with independent switch and adjustable direction and angle.

12. Bed tilt mechanism uses a lockable gas spring mechanism for easy one-handed operation and smooth adjustment.

Technical Parameters:

Model

BK-IRW-I

Display

High-contrast digital split-screen

Temp. Modes

Preheat, skin temperature, manual

Skin Temp. Control Range

25~37.5°C

Skin Temp. Display Range

5~65°C

Temp. Accuracy

±0.5°C

Skin Sensor Accuracy

±0.3°C

Cot Temp. Uniformity

≤2°C

Heating Time

≤45minutes

Bed Height

850mm

Radiation Head Angle

±45° bidirectional rotation

Bed Tilt Angle

±12° stepless adjustment

Power Supply

AC220V, 50/60Hz

Power Rating

750VA

External Size(W*D*H)

700*1040*1820mm

Package Size(W*D*H)

750*1160*1220mm

Net Weight

55kg

Gross Weight

61kg
