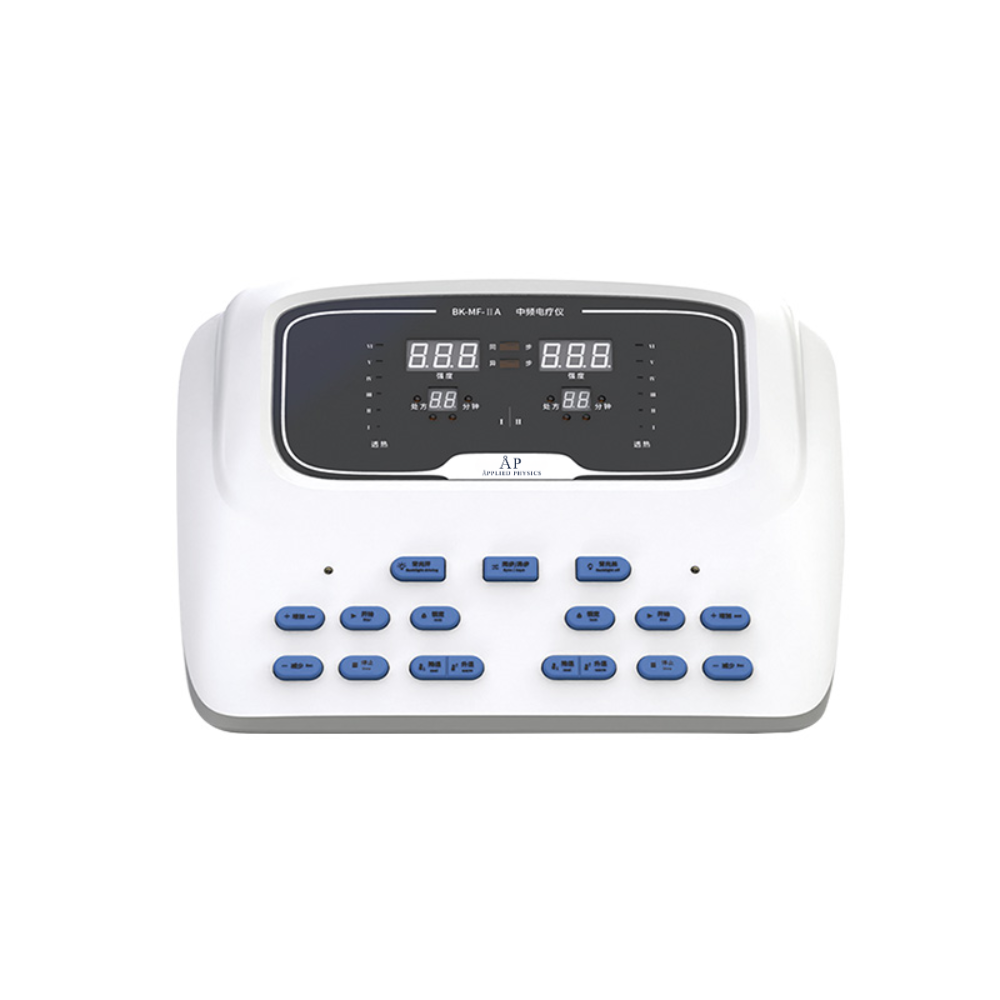

Intermediate Frequency Therapy Instrument BK-MF-IIA

Description

Intermediate Frequency Therapy Instrument BK-MF-IIA

Features:

1. Diathermy function, warm heat can promote blood circulation, improve tissue metabolism, stimulate tissue regeneration, and can relieve pain and strengthen tissue nutrition.

2. Deep penetration therapy, the intermediate frequency is up to 5kHz, which can penetrate deeper into the tissue.

3. Four rows of digital display can display the treatment time and dose of 2 channels at the same time.

4. The output current is less than or equal to 100mA, and 198 APM are adjustable.

5. Synchronous and asynchronous function, 2 patients can be treated synchronously or asynchronously.

6. Contains 29 different physiotherapy prescriptions.

Technical Parameters:

Model

BK-MF-IIA

Output

Double channels, two patients treated at the same time

Prescriptions

29

Modulation Waveform

Square wave, trapezoidal wave, triangle wave, sawtooth wave, exponential wave, sine wave, pulse wave and other amplitude wave

Carrier Frequency

2kHz, 3kHz, 4kHz, 5kHz

Modulated Frequency

0~150Hz

Current Intensity

0~100mA

Continuous Working Time

≥4h

Modulation

0, 100%

Power Supply

AC220/110V, 50/60Hz

Power

90VA

External Size(W*D*H)

344*266*118mm

Net Weight

3kg

Packing Size(W*D*H)

470*310*260mm

Gross Weight

4.5kg
