The inverted biological microscope is a microscope specifically designed for viewing living cells and other biological samples in culture. Its main feature is that the position of the objective lens and the lighting system is reversed, the objective lens is under the stage, and the transmitted light source is above the stage. This design makes the inverted biological microscope particularly suitable for applications in cell culture, tissue culture, plankton, environmental protection, and food inspection.
$0.00

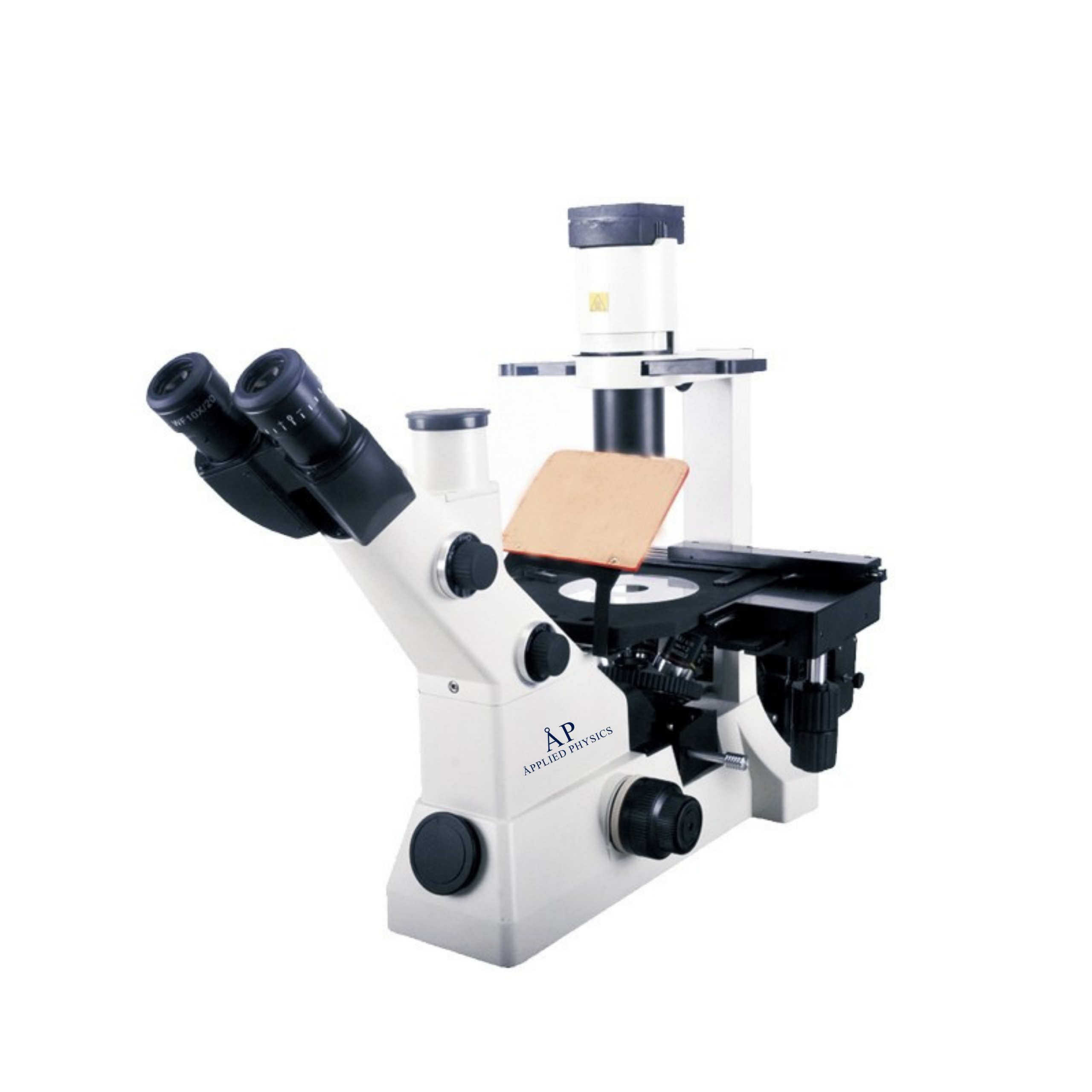

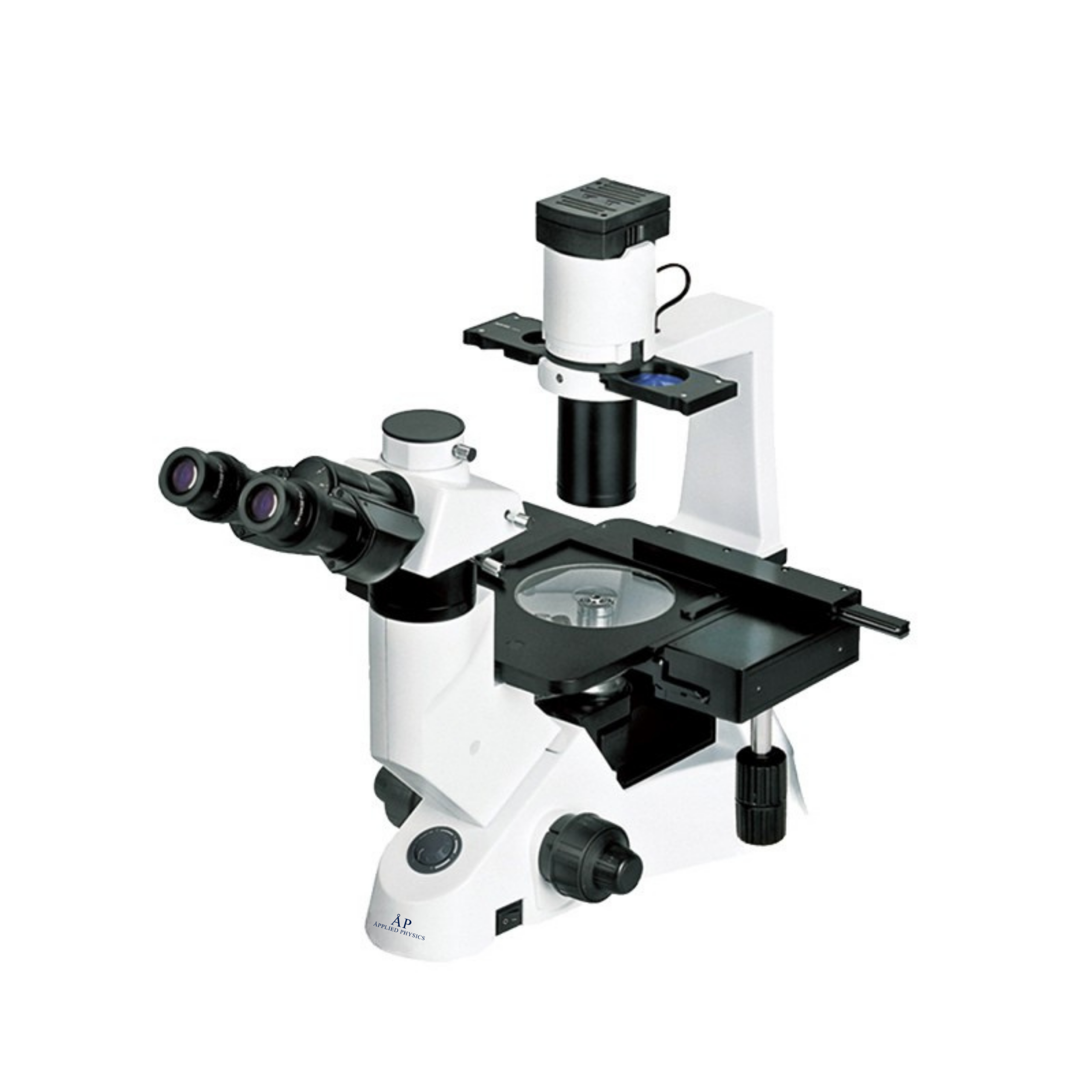

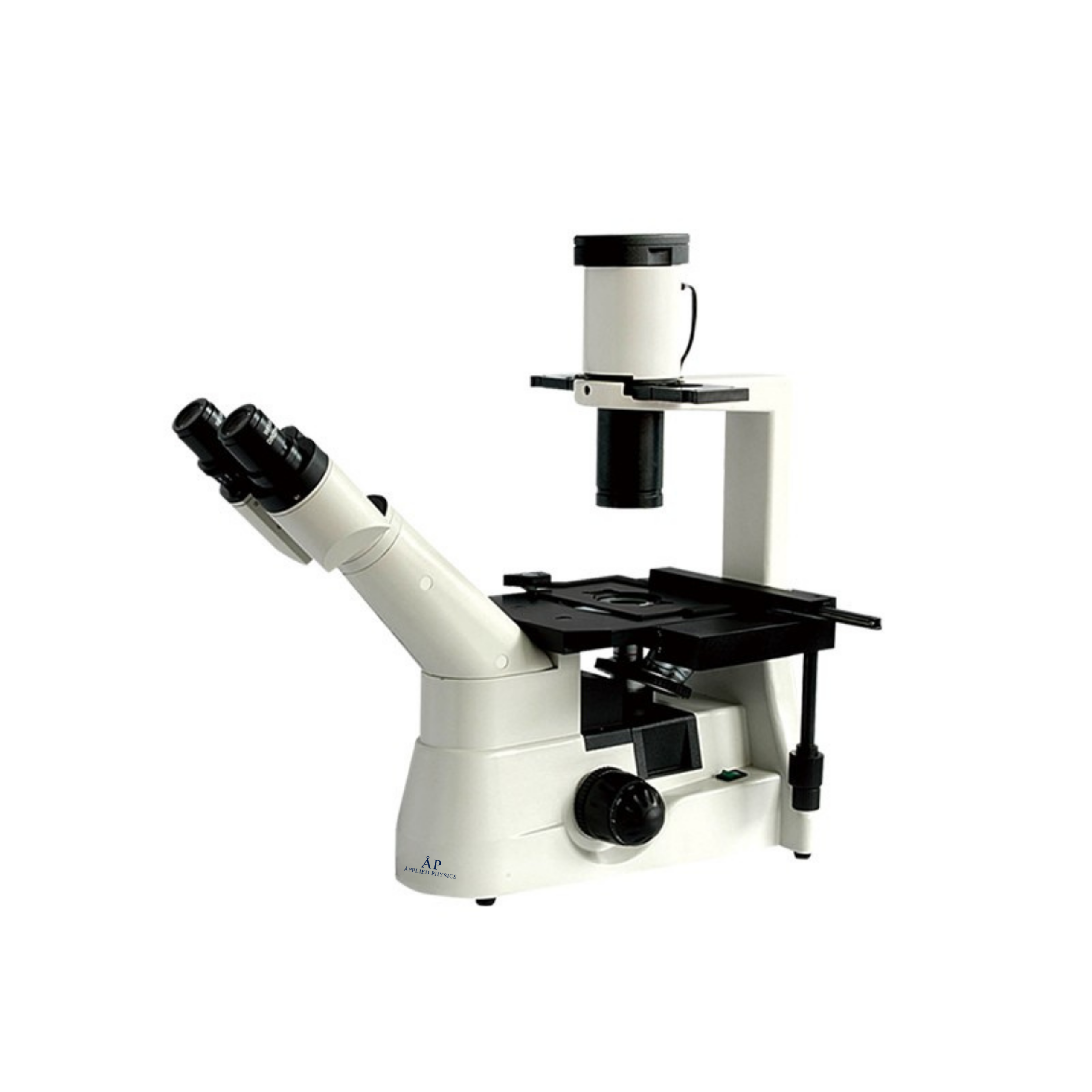

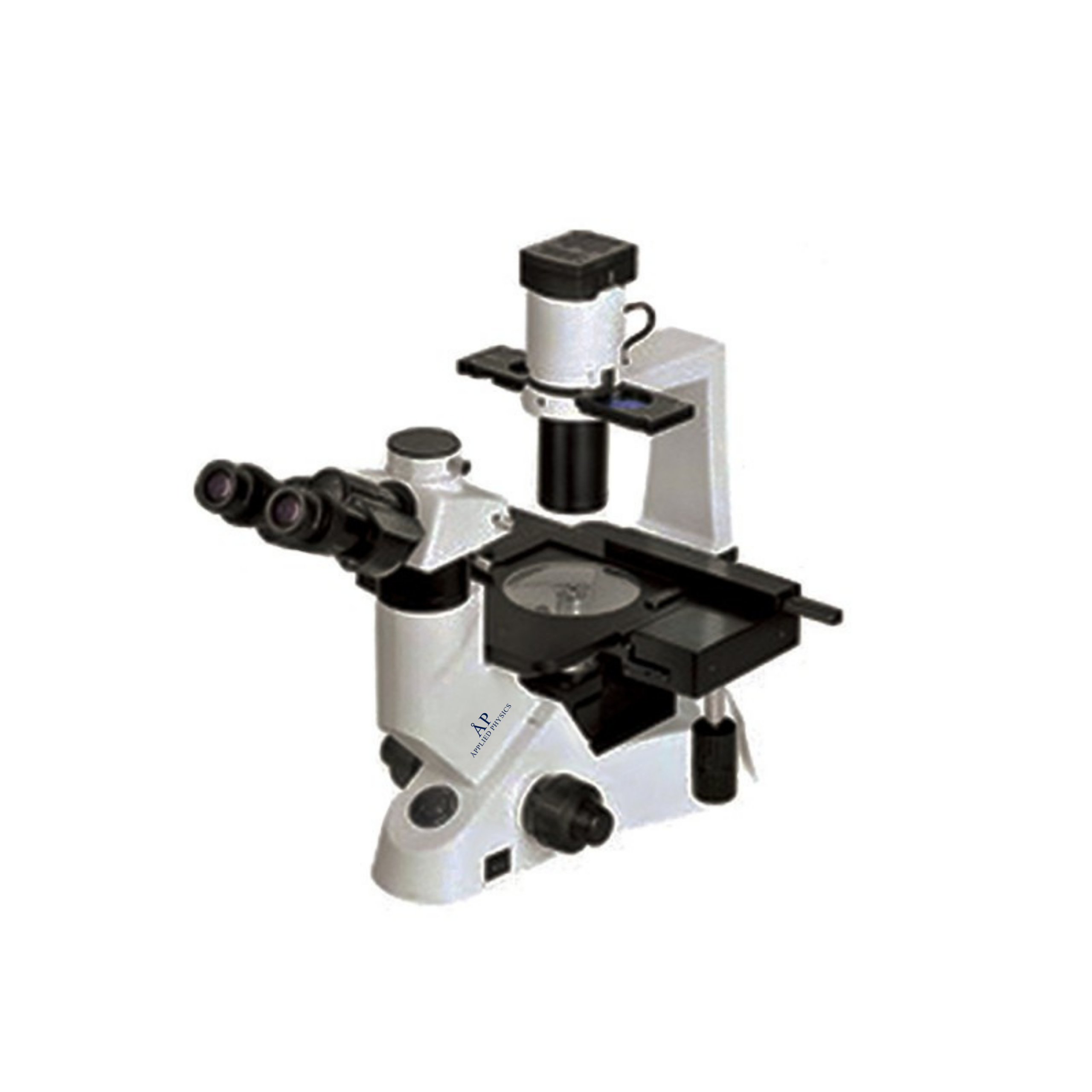

Inverted Biological Microscope BMI-100
Technical Parameters:
Model
BMI-100
Optical System
Infinite Optical System
√
Viewing Head
Trinocular Head Inclined at 30°, Interpupillary Distance 48~75mm
√
Eyepiece
High-point, Extra Wide Field Eyepiece EW10X/22
√
Objective
LWD Infinite Plan Objective
4X/0.1, WD 17.3mm
√
10X/0.25, WD 10mm
●
20X/0.4, WD 5.1mm
●
40X/0.6, WD 2.1mm
√
Infinite Plan Phase Objective
PH10X/0.25, WD 10 mm
√
PH20X/0.4, WD 5.1mm
√
PH40X/0.65, WD 2.1mm
●
Nosepiece
Quintuple Nosepiece
√
Condenser
ELWD Condenser NA 0.3, LWD 72mm(Without Condenser 150mm)
√
Centering
Centering Telescope(Φ30MM)
●
Phase Annulus
10X~20X, Phase Annulus Plate(Fixed)
√
10X~20X、40X Phase Annulus Plate(Adjustable)
●
Stage
Plain Stage 160X250mm
√
Glass Insert
√
Attachable Mechanical Stage, X-Y Coaxial Control，Moving Rang120X78mm
●
Auxiliary Stages70X180mm
√
Terasaki Holder
●
Φ35mm Petri Dish Holder
●
Φ54mm Slide Glass Holder
●
Φ90mm Petri Dish Holder
●
Focusing
Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke 37.7mm per Rotation, Fine Stroke 0.2mm per Rotation, Moving Range up 8mm, down 3mm
√
Illumination
Halogen Lamp 6V/30W
√
LED
●
Filter
Blue、Green and Ground Glass , Diameter 45mm
√
Power Supply
AC110~220V, 50/60Hz
√
Accessories
Inverted flurescent attahement FL-100, Photo Attachment, Video Adapter with C Mount
●
Package Size
468*397*665mm
√
Gross Weight
15.5kg
√
Note: √ Standard Outfit, ●Optional
Trinocular microscope can be installed camera and screen.
| Model | BMI-100 |
|---|
