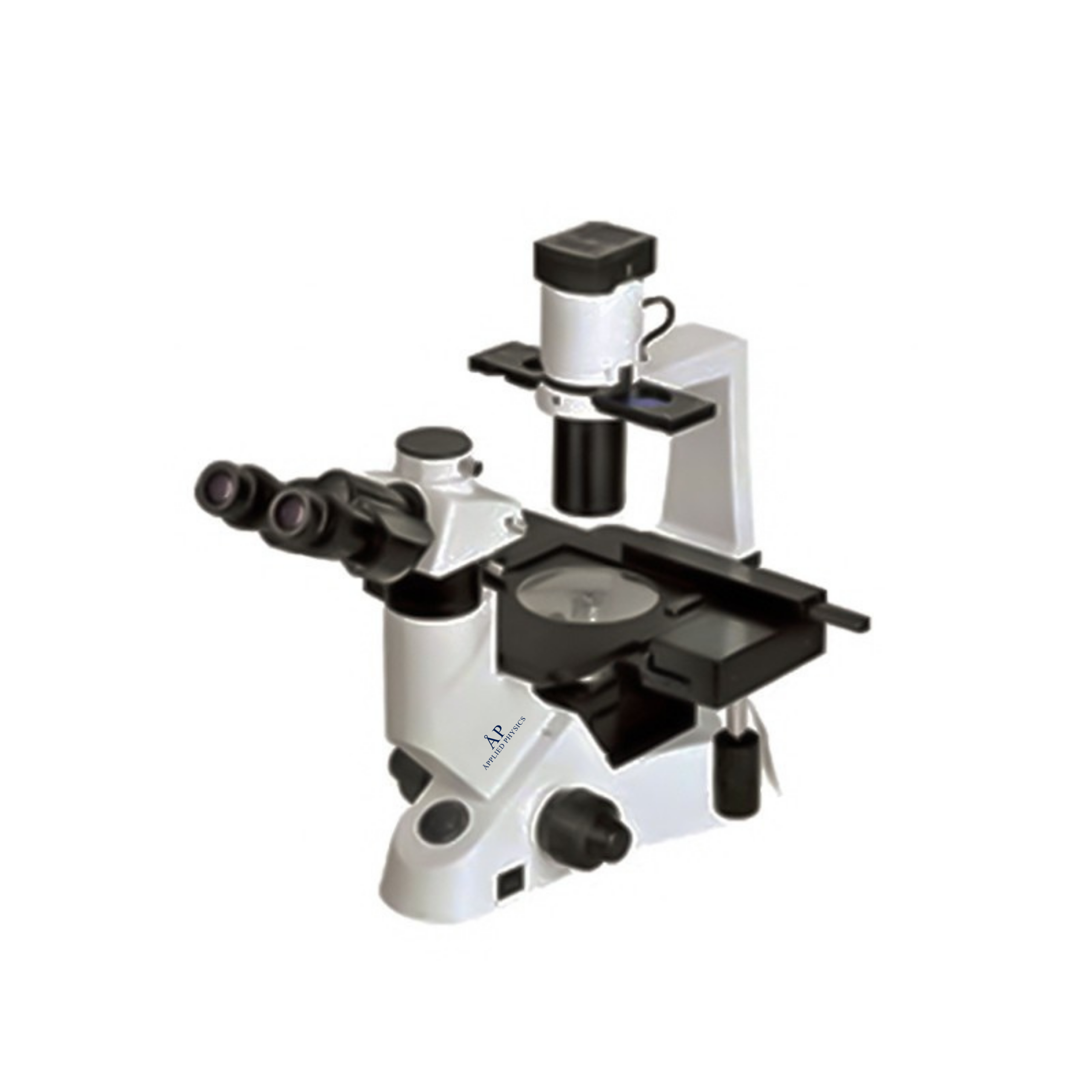

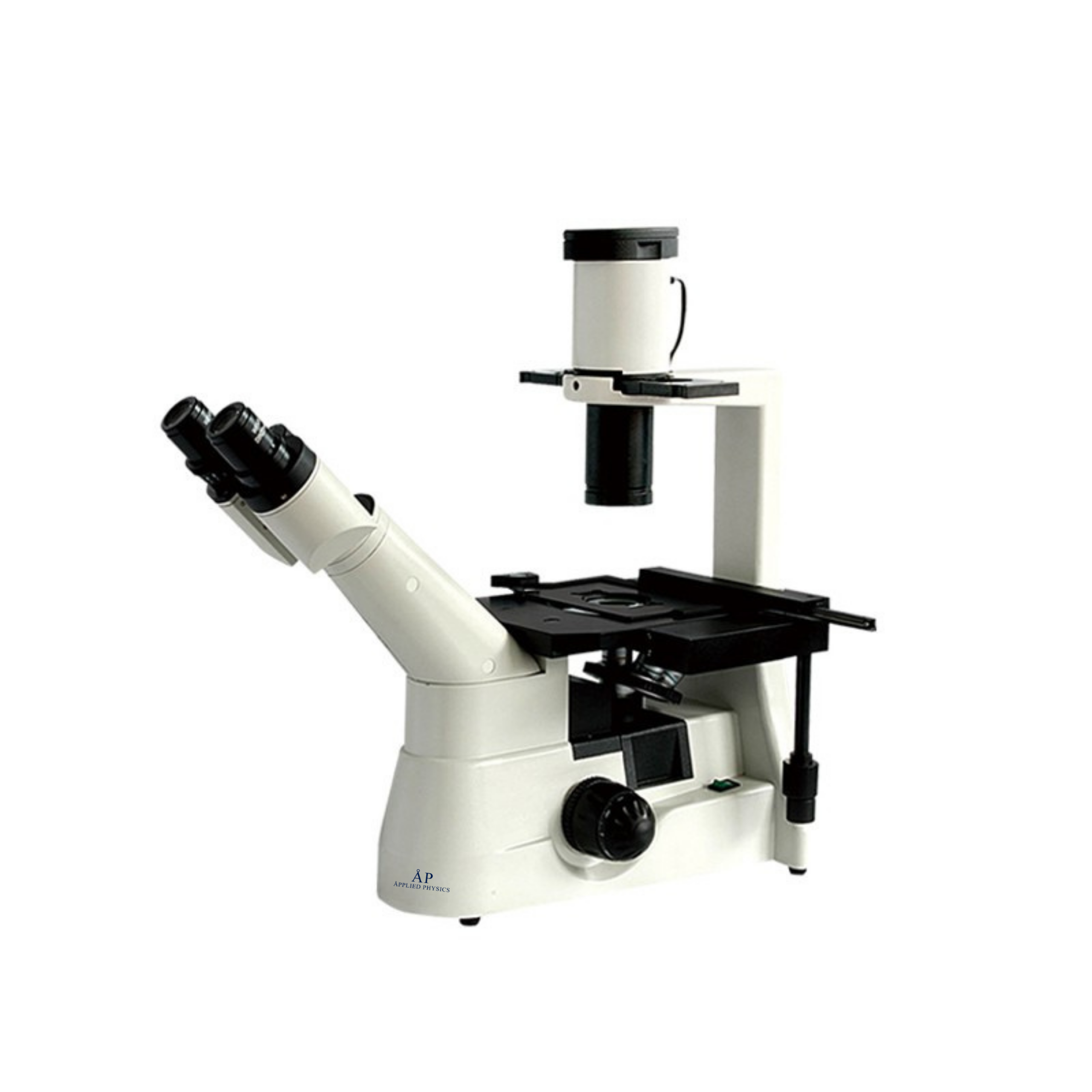

Inverted Microscope XDS-403

Description

Inverted Microscope XDS-403

Model:

Model

Specifications

XDS-403

NIB-100

Viewing Head

Trinocular viewing head, inclined at 45°

√

Trinocular viewing head, inclined at 30°

√

Eyepiece

WF10X/20mm

√

EW10X/22mm

√

Objective

LWD Plan objective 4X,10X,20X, 40X

√

LWD Infinite plan objective 4X,10X,20X, 40X Infinite plan phase objective 10X,20X, 40X

√

Stage

Double layers mechanical stage, stage size:242*172mm, central stage:(p110mm,

moving range: 75*50mm

√

Plain stage: 160*250mm, glass insert, attachable mechanical stage, X-Y coaxial control, moving range: 120*78mm

Auxiliary stage 70*180mm, Terasaki holder, Petri dish holder(p35mm/(p54mm/(p90mm, slide glass holder(p54mm

√

Condenser

NA 0.3 Abbe condenser W.D. 75mm

√

√

ELWD Condenser NA 0.3, LWD 72mm (without condenser 150mm)

√

√

Interpupillary Distance

50-75mm/48-75mm

√

√

Focusing

Coaxial coarse& fine adjustment, fine division 0.002mm

√

√

Phase Contrast Sliding Plate

Center of phase contrast ring plate adjustable

√

√

10X, 20X, 40X phase annulus plate (fixed)

10X, 20X, 40X phase annulus plate (adjustable)

√

Center Telescope

Center telescope

√

Center telescope((p30mm)

√

Illumination

Halogen lamp 12V/30W, adjustable brightness

√

LED lamp 3W/Halogen lamp 6V/30W

√

Filter

Blue, green, yellow and frosted glass

√

Blue, green and frosted glass

√

Optional Accessories

B, G wave band, 220V(110V)/100W Fluorescent Mercury lamp; photograph connecting tube, adapter with MD or PK mount, 4X photograph eyepiece

√

Inverted fluorescent attachment, photo attachment, video adapter with C mount

√

Power Supply

AC 110/220V±10%,50/60Hz

√

√

Package Size

350*250*508mm(XDS-403), 468*397*665mm(NIB・100)

√

√

Gross Weight

15kg

√

√
