IVC Mouse Cage System

Description

IVC Mouse Cage System

Features:

1. IVC mouse cage system is composed of three parts: cage box, cage frame and main machine.

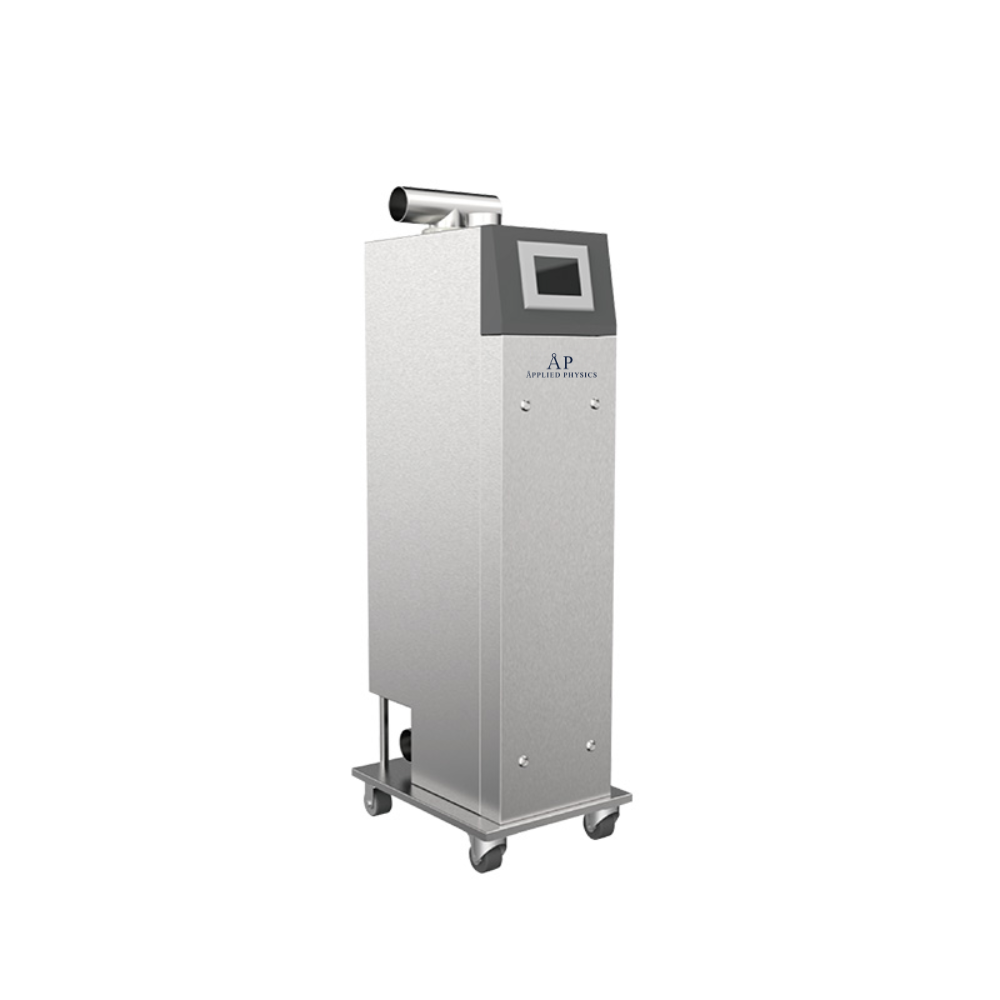

Main Machine:

1. PLC or MCU control, inlet and exhaust fans are well-known domestic brands, stable and reliable operation.

2. With high-precision wind speed pressure difference sensor, temperature and humidity sensor.

3. Built-in UPS, the fan continues working when the external power supply interrupted.

4. With filter timing function to remind users to update the filter.

5. With abnormal parameters alarm, filter life alarm, power failure alarm.

6. Supporting remote monitoring through computer or mobile phone(PLC).

Main Machine Technical Parameters:

Ventilation Rate

10~85 times/h

Airflow Velocity

≤0.1m/s

Air Cleanliness

ISO Level 5

Noise

≤55dB

Colony Number

0

Pressure Difference

≥10pa

Power Supply

110~220V, 50/60Hz

External Size

470*605*1550mm

Package Size

570*705*1700mm

Gross Weight

105kg

Cage Frame

1. Cage frame material is SUS304 stainless steel.

2. The gas pipe and the cage box are connected by a silicone gas nozzle. The inlet and exhaust vents of the cage box and cage frame adopt non-invasive structure.

3. Inlet and exhaust duct can be disassembled for easy cleaning and disinfection.

4. 4-inch PU wear-resistant universal wheel, no scratching PVC floor, flexible movement without noise. The arc angle structure prevents the damage of the during handling.

5. The vertical and horizontal positions of the cage frame are numbered with letters such as A, B, C and numbers such as 1, 2, 3, which is convenient for experiment management.

6. The cage guide rail is made of ABS engineering plastic, and with instructions for cage installation in place(if not in place, there are light instructions to remind the operator).

Cage Box

1. The cage box is composed of plastic base box, box cover, stainless steel mesh cover, drinking bottle and record card. The box cover has exhaust valve, silicone sealing circle and hasp.

2. Base box and cover are molded by PPSU or PSU plastic. PPSU thermal deformation temperature>180℃, steam sterilization for more than 500 times without deformation on condition that 205kPa, 134°C, 5min. Thermal deformation temperature of PSU material> 150℃, steam sterilization over 200 times without deformation on condition that 205kPa, 134°C, 5min.

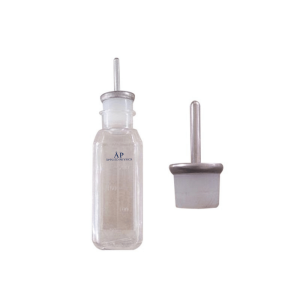

3. The cage box and 500ml drinking bottle are autoclavable.

4. The box cover exhaust outlet is provided with a metal filter(25*50mm) to prevent the dust in the cage from being inhaled the cage frame and blocking the pipeline.

5. The ventilated window is directly connected to the outside world, covered with 0.2µm high efficiency filter membrane, which can be directly washed and autoclavable.

6. After the cage box is removed from the cage frame, the air inlet and exhaust valves of the cage box will automatically close immediately.

Rat IVC Cage System

The rat IVC cage system is composed of intelligent main machine, cage frame, cage box and other parts. It is suitable for feeding and experiment of clean grade or SPF grade less harmful infected rats, especially suitable for raising immunodeficient and transgenic animals, to effectively ensure the safety of operators, animals and the environment.

Technical Parameters:

Model

Cage Number(pc)

Cage Frame Size(L*W*H)mm

Cage Size(L*W*H)mm

Packing Information

Main Unit Packing Size(L*W*H)mm

Main Unit Gross Weight(kg)

Cage Frame&Cage Packing Size(L*W*H)mm

Cage Frame&Cage Gross Weight(kg)

BK-IVC-SL500-24(4*6)-1

24

1186*540*1945

500*274*226

754*620*2060

115

1706*670*2162

107

BK-IVC-SL500-30(5*6)-1

30

1475*540*1945

500*274*226

754*620*2060

115

1995*670*2162

126

BK-IVC-SL500-36(6*6)-1

36

1764*540*1945

500*274*226

754*620*2060

115

2284*670*2162

145

BK-IVC-SL500-48(4*6)-2

48

1186*540*1945

500*274*226

754*620*2060

115

1706*1210*2162

205

BK-IVC-SL500-60(5*6)-2

60

1475*540*1945

500*274*226

754*620*2060

115

1995*1210*2162

241

BK-IVC-SL500-72(6*6)-2

72

1764*540*1945

500*274*226

754*620*2060

115

2284*1210*2162

278

Mouse IVC Cage System

It is composed of intelligent main machine, cage frame, cage box and so on. It is suitable for feeding and experiment of clean grade or SPF grade less harmful infected mice, to effectively ensure the safety of operators, animals and the environment.

Technical Parameters:

Model

Cage Number(pc)

Cage Frame Size(L*W*H)mm

Cage Size(L*W*H)mm

Packing Information

Main Unit Packing Size(L*W*H)mm

Main Unit Gross Weight(kg)

Cage Frame&Cage Packing Size(L*W*H)mm

Cage Frame&Cage Gross Weight(kg)

BK-IVC-SL385-32(4*8)-1

32

806*490*1812

400*179*166

754*620*2060

115

1326*620*2029

105

BK-IVC-SL385-36(4*9)-1

36

806*490*2005

400*179*166

754*620*2060

115

1326*620*2222

111

BK-IVC-SL385-40(5*8)-1

40

1000*490*1812

400*179*166

754*620*2060

115

1520*620*2029

119

BK-IVC-SL385-45(5*9)-1

45

1000*490*2005

400*179*166

754*620*2060

115

1520*620*2222

125

BK-IVC-SL385-48(6*8)-1

48

1194*490*1812

400*179*166

754*620*2060

115

1714*620*2029

133

BK-IVC-SL385-54(6*9)-1

54

1194*490*2005

400*179*166

754*620*2060

115

1714*620*2222

139

BK-IVC-SL385-56(7*8)-1

56

1388*490*1812

400*179*166

754*620*2060

115

1908*620*2029

143

BK-IVC-SL385-63(7*9)-1

63

1388*490*2005

400*179*166

754*620*2060

115

1908*620*2222

150

BK-IVC-SL385-64(8*8)-1

64

1582*490*1812

400*179*166

754*620*2060

115

2102*620*2029

159

BK-IVC-SL385-72(8*9)-1

72

1582*490*2005

400*179*166

754*620*2060

115

2102*620*2222

165

BK-IVC-SL385-72(9*8)-1

72

1776*490*1812

400*179*166

754*620*2060

115

2296*620*2029

169

BK-IVC-SL385-81(9*9)-1

81

1776*490*2005

400*179*166

754*620*2060

115

2296*620*2222

176

BK-IVC-SL385-96(6*8)-SM-1

96

1194*890*1812

400*179*166

754*620*2060

115

1714*1020*2029

169

BK-IVC-SL385-108(6*9)-SM-1

108

1194*890*2005

400*179*166

754*620*2060

115

1714*1020*2222

180

BK-IVC-SL385-112(7*8)-SM-1

112

1388*890*1812

400*179*166

754*620*2060

115

1908*1020*2029

186

BK-IVC-SL385-126(7*9)-SM-1

126

1388*890*2005

400*179*166

754*620*2060

115

1908*1020*2222

198

BK-IVC-SL385-128(8*8)-SM-1

128

1582*890*1812

400*179*166

754*620*2060

115

2102*1020*2029

204

BK-IVC-SL385-144(8*9)-SM-1

144

1582*890*2005

400*179*166

754*620*2060

115

2102*1020*2222

216

BK-IVC-SL385-144(9*8)-SM-1

144

1776*890*1812

400*179*166

754*620*2060

115

2296*1020*2029

231

BK-IVC-SL385-96(6*8)-2

96

1194*490*1812

400*179*166

754*620*2060

115

1714*1110*2029

256

BK-IVC-SL385-108(6*9)-2

108

1194*490*2005

400*179*166

754*620*2060

115

1714*1110*2222

268

BK-IVC-SL385-112(7*8)-2

112

1388*490*1812

400*179*166

754*620*2060

115

1908*1110*2029

275

BK-IVC-SL385-126(7*9)-2

126

1388*490*2005

400*179*166

754*620*2060

115

1908*1110*2222

288

BK-IVC-SL385-128(8*8)-2

128

1582*490*1812

400*179*166

754*620*2060

115

2102*1110*2029

305

BK-IVC-SL385-144(8*9)-2

144

1582*490*2005

400*179*166

754*620*2060

115

2102*1110*2222

318

BK-IVC-SL385-144(9*8)-2

144

1776*490*1812

400*179*166

754*620*2060

115

2296*1110*2029

325

BK-IVC-SL385-162(9*9)-2

162

1776*490*2005

400*179*166

754*620*2060

115

2296*1110*2222

338

BK-IVC-SL385-192(6*8)-SM-2

192

1194*890*1812

400*179*166

754*620*2060

115

1714*1910*2029

327

BK-IVC-SL385-216(6*9)-SM-2

216

1194*890*2005

400*179*166

754*620*2060

115

1714*1910*2222

351

BK-IVC-SL385-224(7*8)-SM-2

224

1388*890*1812

400*179*166

754*620*2060

115

1908*1910*2029

361

BK-IVC-SL385-252(7*9)-SM-2

252

1388*890*2005

400*179*166

754*620*2060

115

1908*1910*2222

384

BK-IVC-SL385-256(8*8)-SM-2

256

1582*890*1812

400*179*166

754*620*2060

115

2102*1910*2029

396

BK-IVC-SL385-288(8*9)-SM-2

288

1582*890*2005

400*179*166

754*620*2060

115

2102*1910*2222

420

BK-IVC-SL385-288(9*8)-SM-2

288

1776*890*1812

400*179*166

754*620*2060

115

2296*1910*2029

450

Guinea-pig IVC Cage System

Technical Parameters:

Model

Cage Number(pc)

Cage Frame Size(L*W*H)mm

Cage Size(L*W*H)mm

Packing Information

Main Unit Packing Size(L*W*H)mm

Main Unit Gross Weight(kg)

Cage Frame&Cage Packing Size(L*W*H)mm

Cage Frame&Cage Gross Weight(kg)

BK-IVC-SL520-16(4*4)-1

16

1638*580*1476

520*389*270

754*620*2060

115

2158*710*1693

121

BK-IVC-SL520-20(4*5)-1

20

1638*580*1781

520*389*270

754*620*2060

115

2158*710*1998

142

BK-IVC-SL520-32(4*4)-2

32

1638*580*1476

520*389*270

754*620*2060

115

2158*1290*1693

234

BK-IVC-SL520-40(4*5)-2

40

1638*580*1781

520*389*270

754*620*2060

115

2158*1290*1998

274

Rabbit IVC Cage System

Technical Parameters:

Model

Cage Number(pc)

Cage Frame Size(L*W*H)mm

Cage Size(L*W*H)mm

Packing Information

Main Unit Packing Size(L*W*H)mm

Main Unit Gross Weight(kg)

Cage Frame&Cage Packing Size(L*W*H)mm

Cage Frame&Cage Gross Weight(kg)

BK-IVC-TL520-12(3*4)-1

12

1236*580*2026

520*385*415

754*620*2060

115

1756*710*2243

116

BK-IVC-TL520-16(4*4)-1

16

1638*580*2026

520*385*415

754*620*2060

115

2158*710*2243

145

BK-IVC-TL520-24(3*4)-2

24

1236*580*2026

520*385*415

754*620*2060

115

1756*1290*2243

223

BK-IVC-TL520-32(4*4)-2

32

1638*580*2026

520*385*415

754*620*2060

115

2158*1290*2243

279
