BY-D-І Jaundice Meter adopts advanced fiber technology, optical technology, electronics and information processing technology, the light and electricity organically combined for dynamically monitoring neonatal serum bilirubin percutaneous value. The device can measure percutaneous bilirubin value related to serum bilirubin concentration through neonatal skin by rapid noninvasive determination, eliminating the pain caused by repeated blood samples to neonates, but also reducing difficulties of medical staff to collect blood samples.BY-D-I and BY-D-ll have self-calibration functions.
$0.00

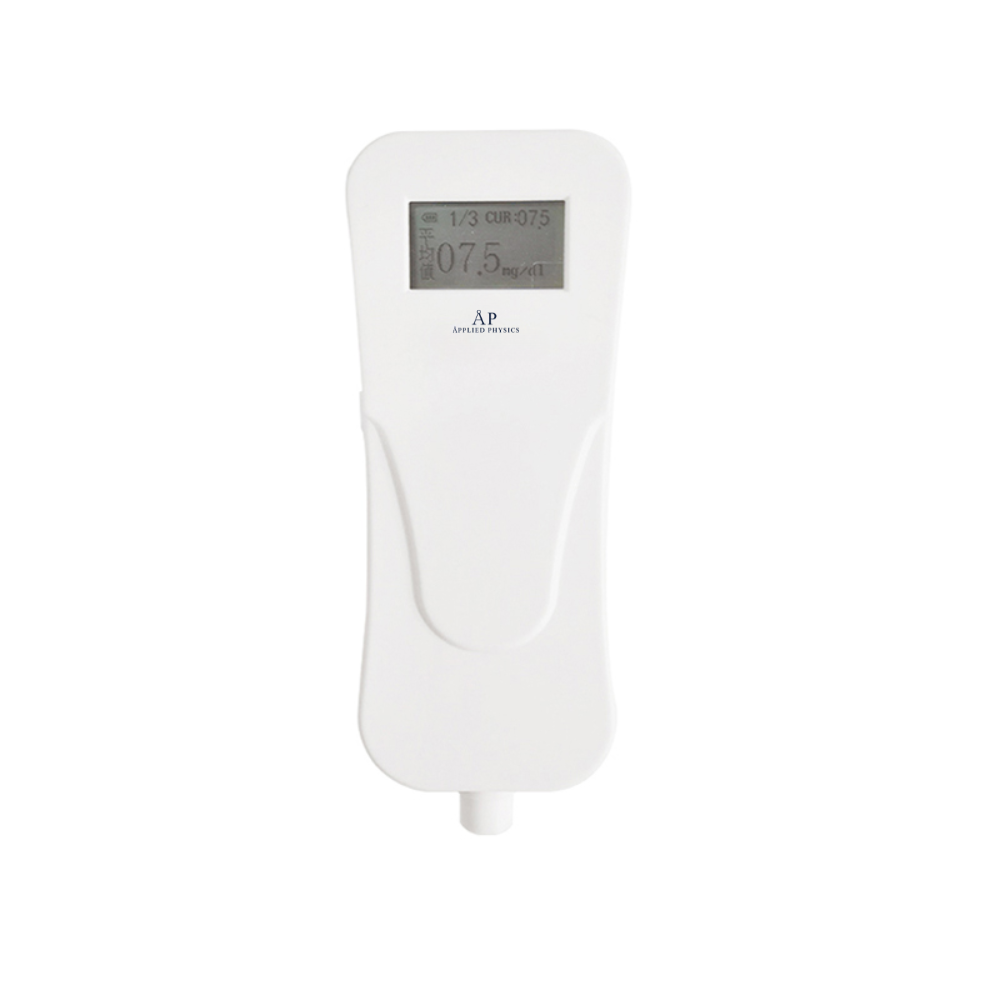

Jaundice Meter
Product Configuration:
Jaundice meter, calibration plate and charger.
Technical Parameters:
Model
BY-D-І
BY-D-II
Measuring Method
Light reflection
Light Source
Xenon flash
Display
1.6-inch LCD display
2.2-inch LCD display
Measuring Range
0.0~29.9mg/dL(0.0~425μmol/L)
Indication Error
00~15±1(mg/dL)
16~25±1.5(mg/dL)
Measuring Accuracy
RSD＜2%
Battery
4 Triple A rechargeable nickel-metal hydride batteries
Built-in lithium battery
Measuring Times
800 times after each full charge
Measuring Units
mg/dL; μmol/L
mg/dL; μmol/L(Simultaneous display)
Measuring Averages
2~5 sets
1~5 sets(Display both test values and averages)
Calibration Plate
White screen 00.0 or 00.1mg/dL
Yellow screen 20.0±1mg/dL
Working Temp
10~30℃
Working Relative Humidity
≤80%
Working Atmospheric Pressure
75~106Kpa
Storage Function
/
Stores up to 100 records
Power Supply
Input: AC100~240V, 50/60Hz
Output: DC6.0V
Input: AC100~240V, 50/60Hz
Output: DC5.0V
External Size(W*D*H)
175*68*26mm
168*62*26mm
Package Size(W*D*H)
275*135*235mm(carton box)
Net Weight
0.157kg(including batteries)
0.11kg(without battery)
0.155kg
Gross Weight
1.33kg
| Model | BY-D-II, BY-D-І |
|---|
