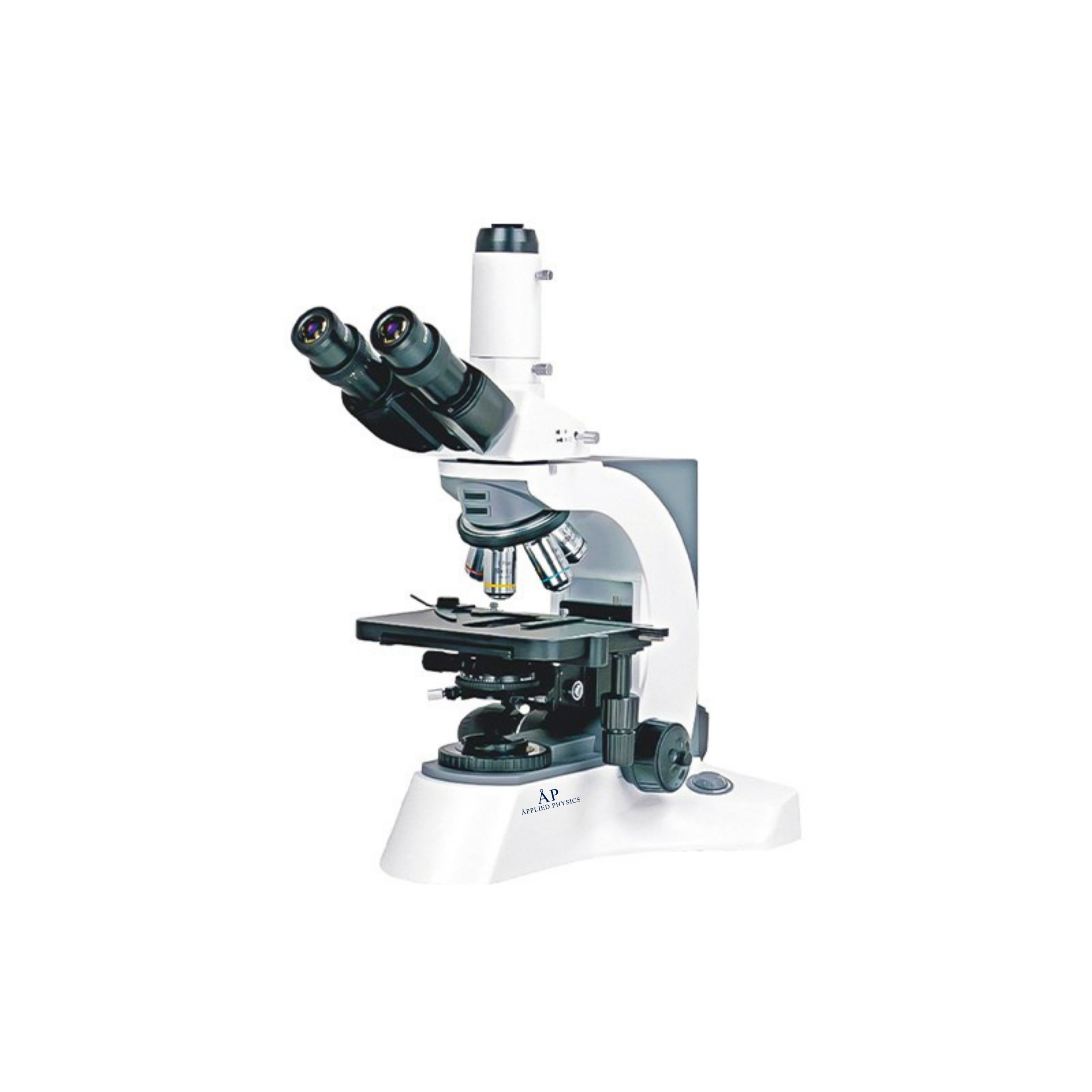

Laboratory Biological Microscope DM-800M

Description

Laboratory Biological Microscope DM-800M

Technical Parameters

Model

DM-800M

Optical System

Infinite optical system

●

Viewing Head

Seidentopf type trinocular head, inclined at 30℃,interpupillary 48-75mm

●

Tiltable binocular/trinocular head

○

Eyepiece

Extra wide field eyepiece EW10×/22, eyepiece tube diameter 30mm

●

Nosepiece

Backward quintuple nosepiece

●

Objective

Infinite plan achromatic objective 4×, 10×, 40×, 100×

●

Infinite plan achromatic objective 20×

○

Condenser

Swing condenser NA 0.9.0.25

●

Focusing

Coaxial coarse and fine adjustment, fine division 0.001mm

●

Stage

Double layers mechanical stage 185*142mm, moving range 75*55mm

●

Kohler illumination

External illumination, aspherical collector, halogen lamp 6V/30W

●

External illumination, aspherical collector, halogen lamp 24V/100W

○

Optional Accessories

Photo attachment, C mount 1×, C mount 0.5×, polarization attachment, turret phase contrast kit, dark field condenser(dry), dark field condenser(oil), epi-fluorescent attachment, temperature controlling stage

○

Power Supply

220V/110V 50/60Hz

Packing Size

430*384*606mm

Gross Weight

14kg

Remark:● is standard;○is optional
