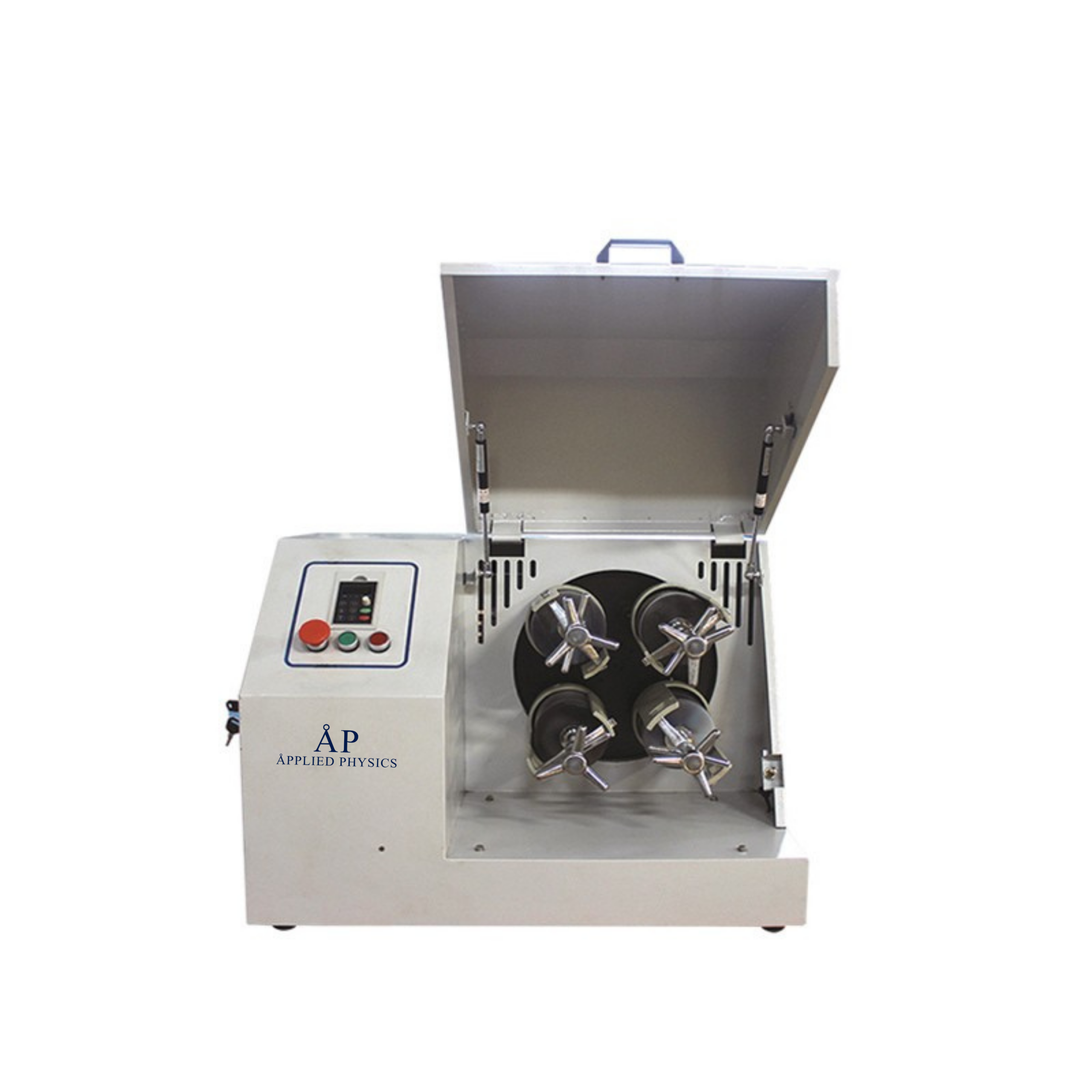

Light Horizontal Planetary Ball Mill

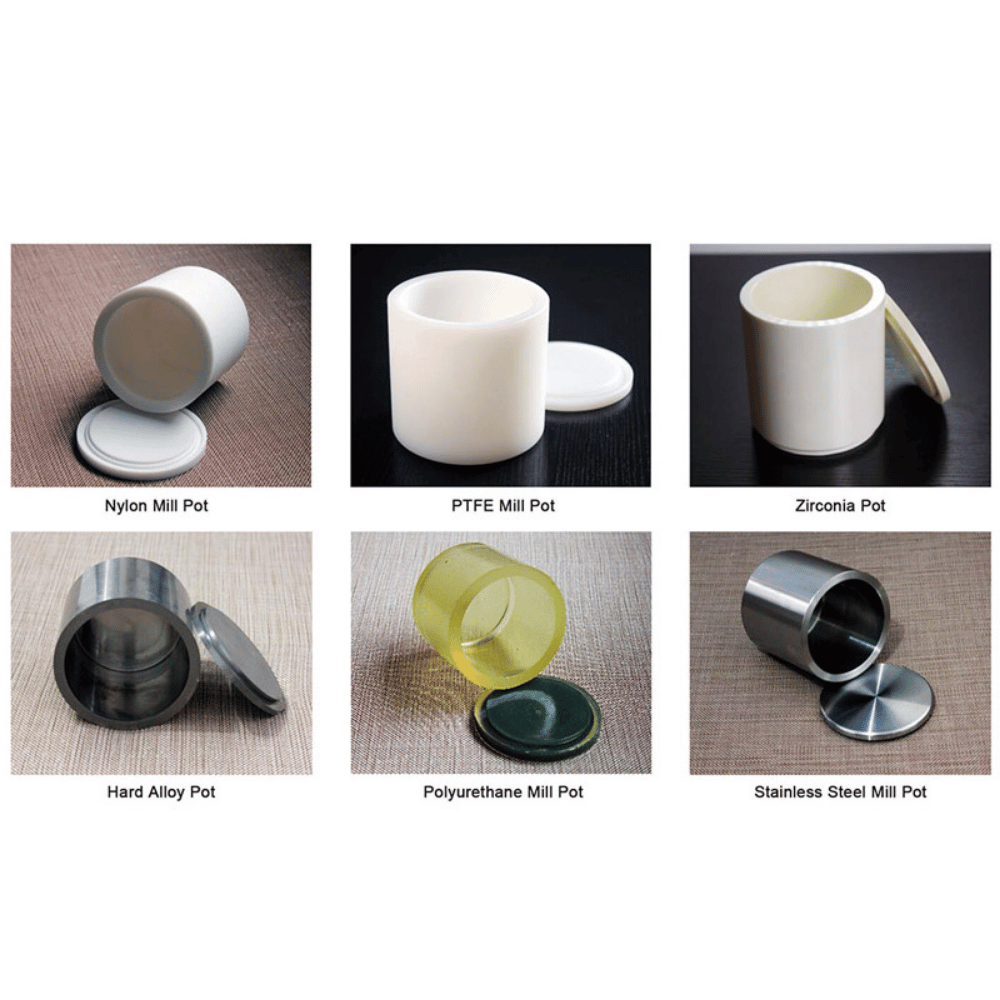

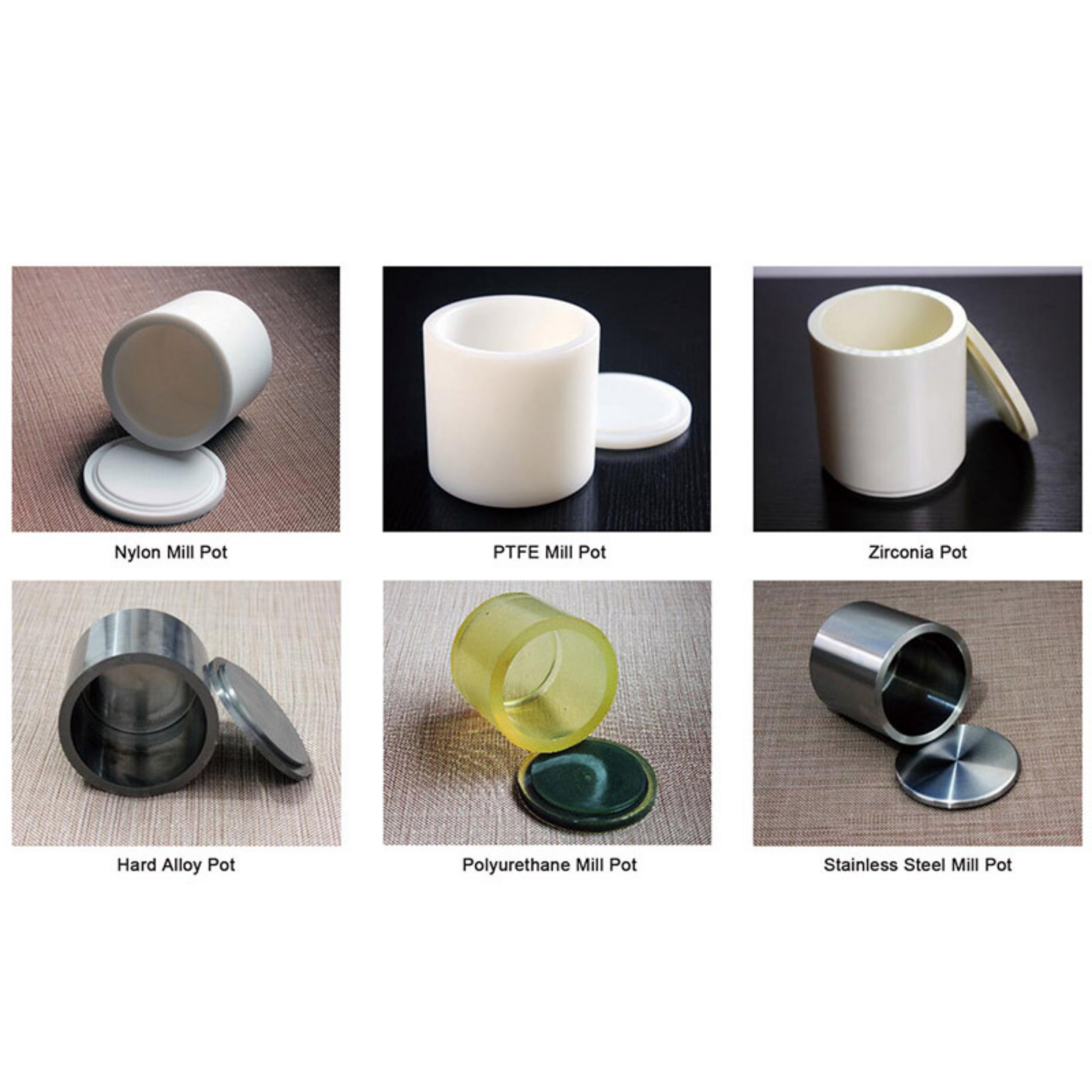

Light Horizontal Planetary Ball Mill Features: 1. Horizontal structure of grinding pots. 2. Special gear with low noise. Technical Parameters: Model BKBM-H2L Capacity 2L Volume of Each Capacity 50~500ml Pot Quantity 4pcs Running Time Range 1~9999min Reciprocal Running Time 1~999min Adjustable Speed Revolution Revolution 35~335rpm Rotation 70~670rpm Noise 60±5dB Transmission Mode Gear drive Working Mode 2 or 4 pots can be used each time Maximum Sample Volume(Material+Grinding Ball) 2/3 of the volume of the ball mill tank Feed Size Soft and Crispy material<10mm, Other materials<3mm Out-put Granularity Minimum Granularity can be reached to 0.1pm Adjusting Mode of Rotate Speed Frequency converter with stepless speed regulation Speed Control Mode Frequency control Consumption 0.75KW Power Supply AC110/220V±10%, 50/60Hz External Size(W*D*H)mm 700*570*520 Package Size(W*D*H)mm 800*610*670 Net Weight(kg) 86 Gross Weight(kg) 150 Note: Both pot and ball are optional. For a ball mill with a capacity of 2L, if the matching mill pot specification is 25ml or 50ml, you need to purchase a base holder separately.   Optional: Selection of pot’s material: Pot’s material has no pollution to the grinding materials and no effect to the appearance of powder.   Technical Parameters: Category&Request of Grinding Material Reference for Mill Pots’ Material Option Soil and other Materials which impurities are not allowed to be brought. Agate Pot Metal and non-metal materials which impurities are not allowed to be brought. Zirconia Pot High hardness materials like diamond, hard alloy. Hard Alloy Pot Strong acid and strong alkali substances, and materials under high temperature. PTFE Mill Pot Iron and steel minerals, impurities are not highly sensitive materials. 304 Stainless Steel Mill Pot Pigment material, and materials which can be processed at high temperature. Nylon Mill Pot Containing aluminum material like ceramic glaze. Corundum Pot Electronic material like lithium battery. Polyurethane Mill Pot Easily oxidized materials which need to be protected by special gas. Vacuum Mill Pot
