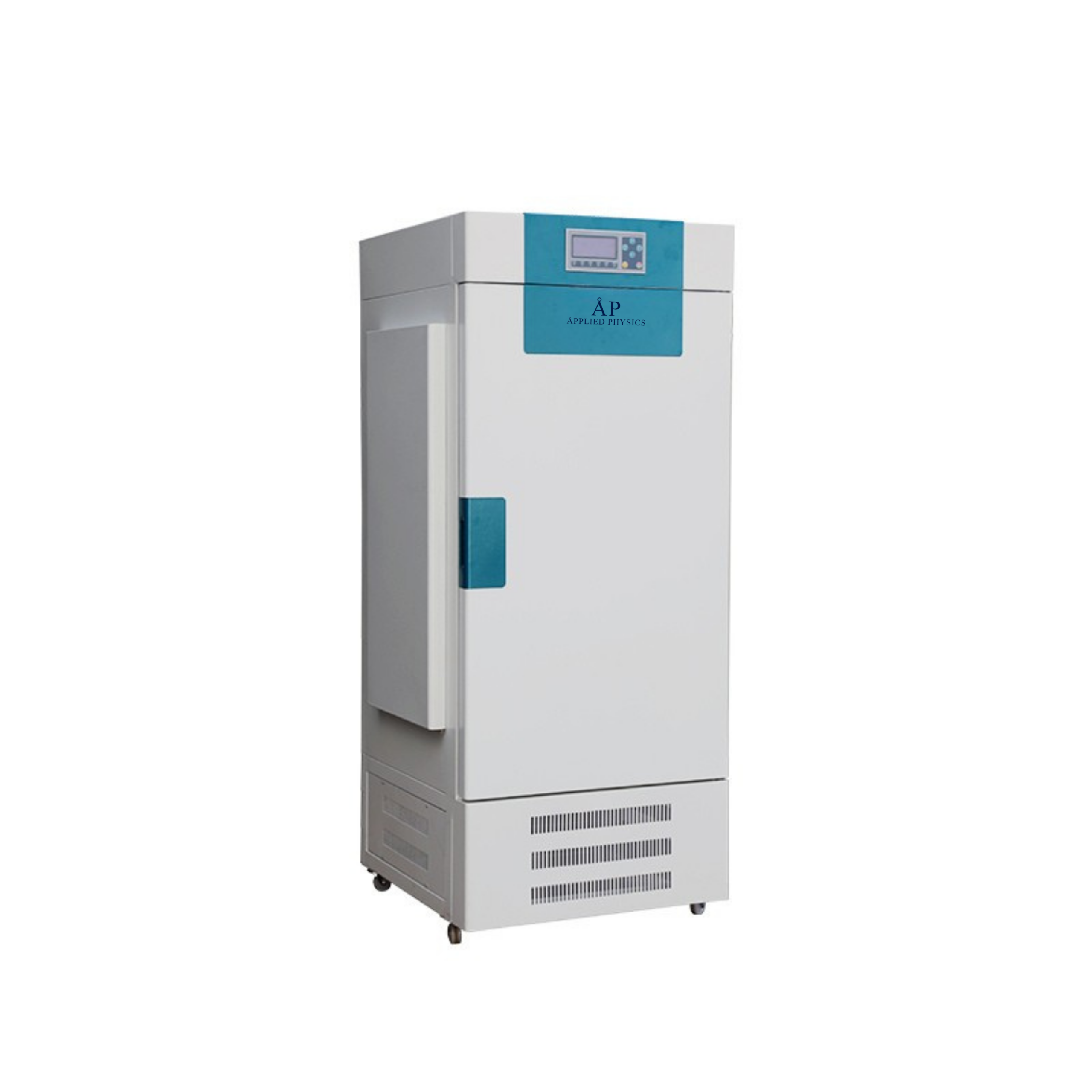

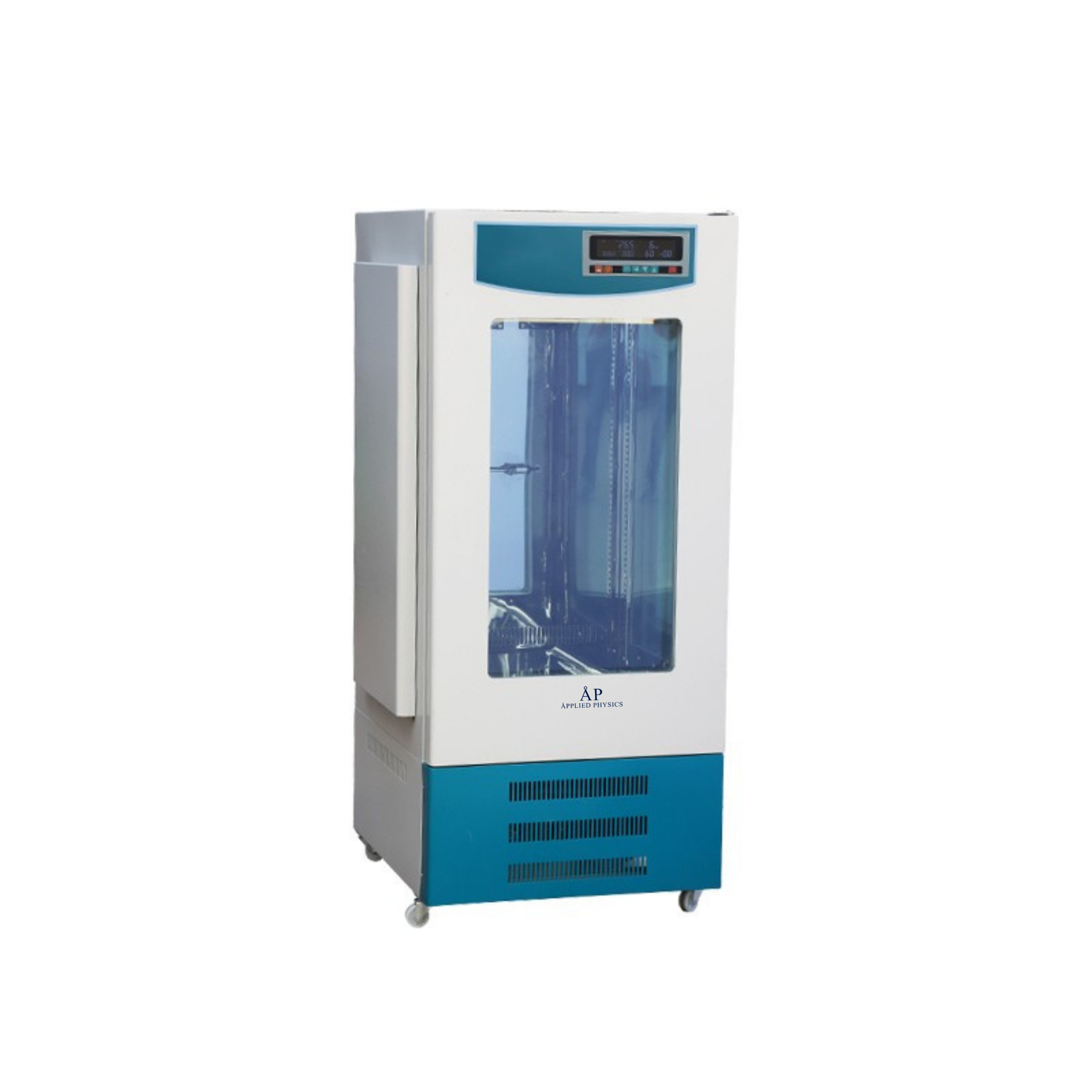

Lighting Incubator BJPX-LB/E Series

Description

Lighting Incubator BJPX-LB/E Series

Features:

* LCD display.

* Unique air circulation system ensures uniform distribution of air flow in the operating chamber without causing any harm to the seedlings.

* Seting of 30 sections of program .It has parameter ettings for automatic storage in case ofpower failure, and the original program setting will run after power resumption.

* Separate alarming system for temperature limit enables automatic termination of system operation in case temperature exceeding thelimit.(optional)

* Two sets of compressors are intelligently converted to ensure long-term operation of the test equipment .(optional)

* It can realize CO₂ concentration monitoring and control .(optional)

* RS485 interface and built-in printer. (optional, only E series)



Technical Parameters:

Model

BJPX-L160B/E

BJPX-L250B/E

BJPX-L300B/E

BJPX-L400B/E

Capacity

160L

250L

300L

400L

Lighting Type

Two-sided lighting, three-sided lighting (optional).

Temp.Control Range

With illumination: 10~50 °C, Without illumination: 5~50 °C

Temp. Fluctuation

±1°C

Temp.Resolution

0.1°C

Lighting  Illumination

Standard: General lighting 0-6000LX, adjustable in 6 steps.

Optional: Strong lighting 0~12000LX or 20000LX or 25000LX or 30000LX , adjustable in 6 steps or stepless adjustment.

TimingRange

1-9999min

Shelves

 2pcs/adjustable

3pcs/adjustable

4pcs/adjustable

Consumption

1500W

2000W

2500W

2800W

Power Supply

AC220V±10%, 50/60Hz(Standard)

AC110±10%, 60Hz(Optional)

Internal Size (W*D*H)mm

500*380*790

498*450*794(E)

530*480*1000

528*480*1000(E)

560*500*1200

564*500*1050(E)

600*550*1250

600*600*1100(E)

External Size(W*D*H)mm

680*590*1250

722*665*1440(E)

710*700*1450

752*695*1650(E)

746*715*1650

788*715*1690(E)

789*765*1700

824*865*1750(E)

Packing Size(W*D*H)mm

780*690*1350

822*765*1540(E)

810*800*1550

852*795*1750(E)

846*515*1750

888*815*1790(E)

889*865*1800

924*965*1850(E)

Gross Weight(kg)

70

90

130

150
