Manifolds Vacuum Filtration

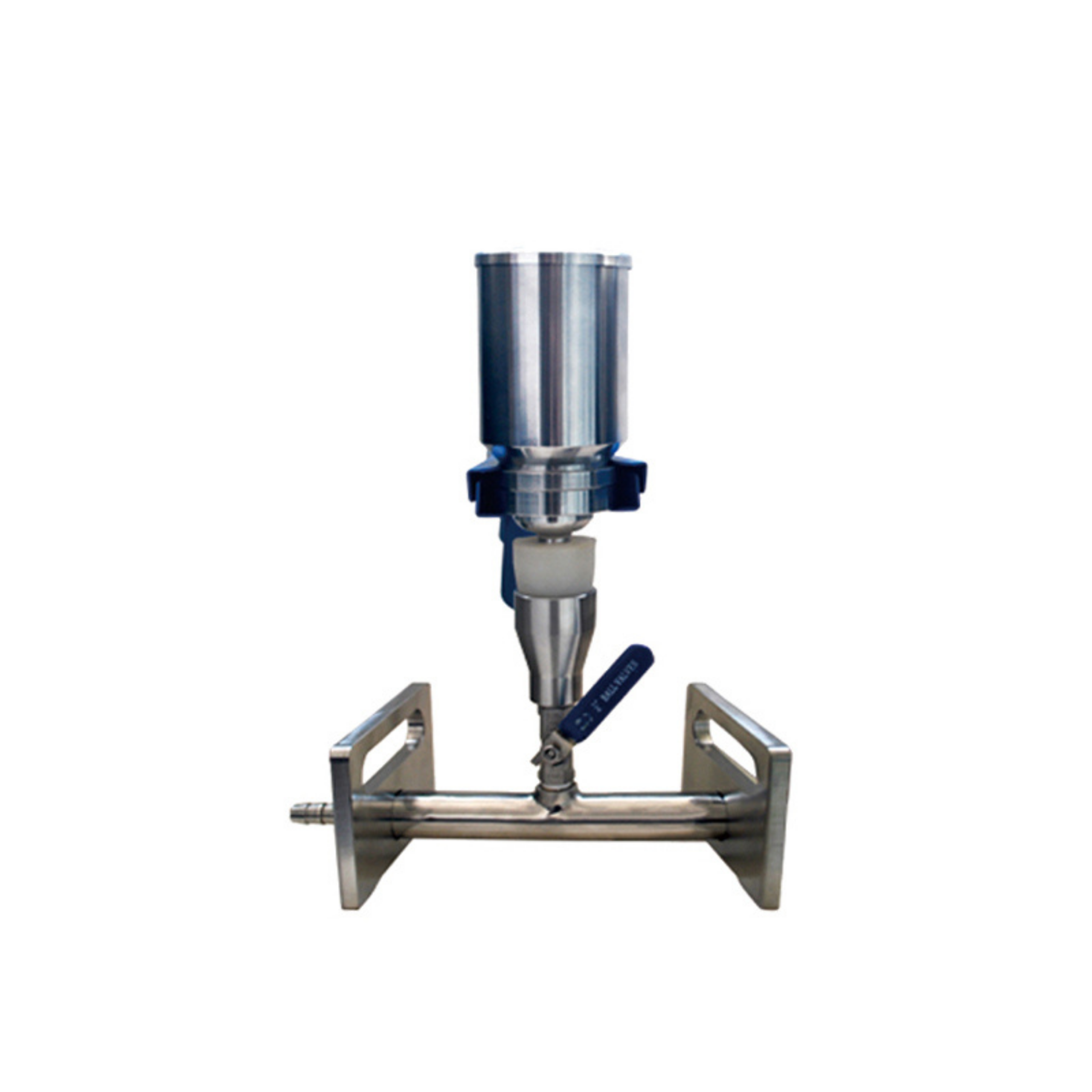

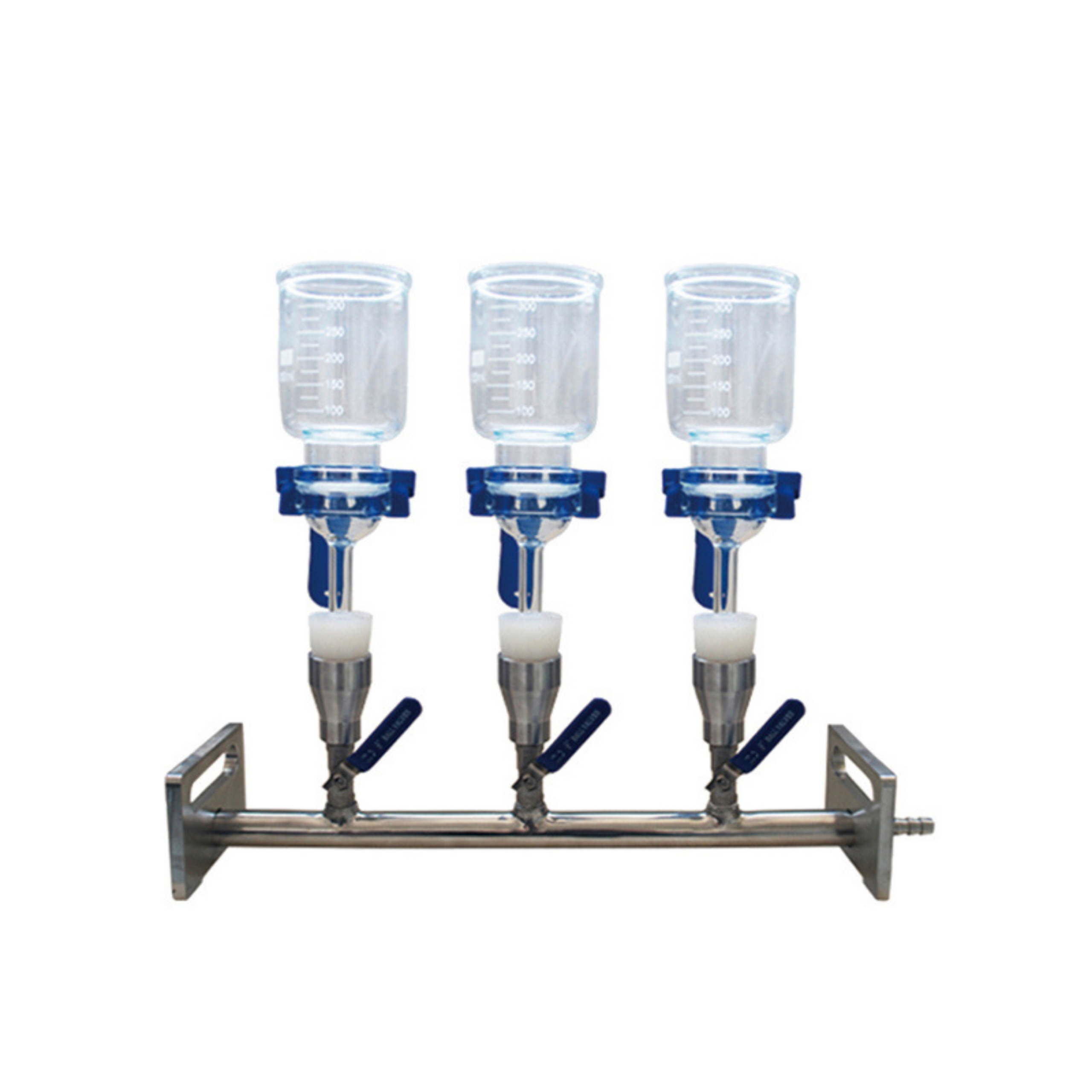

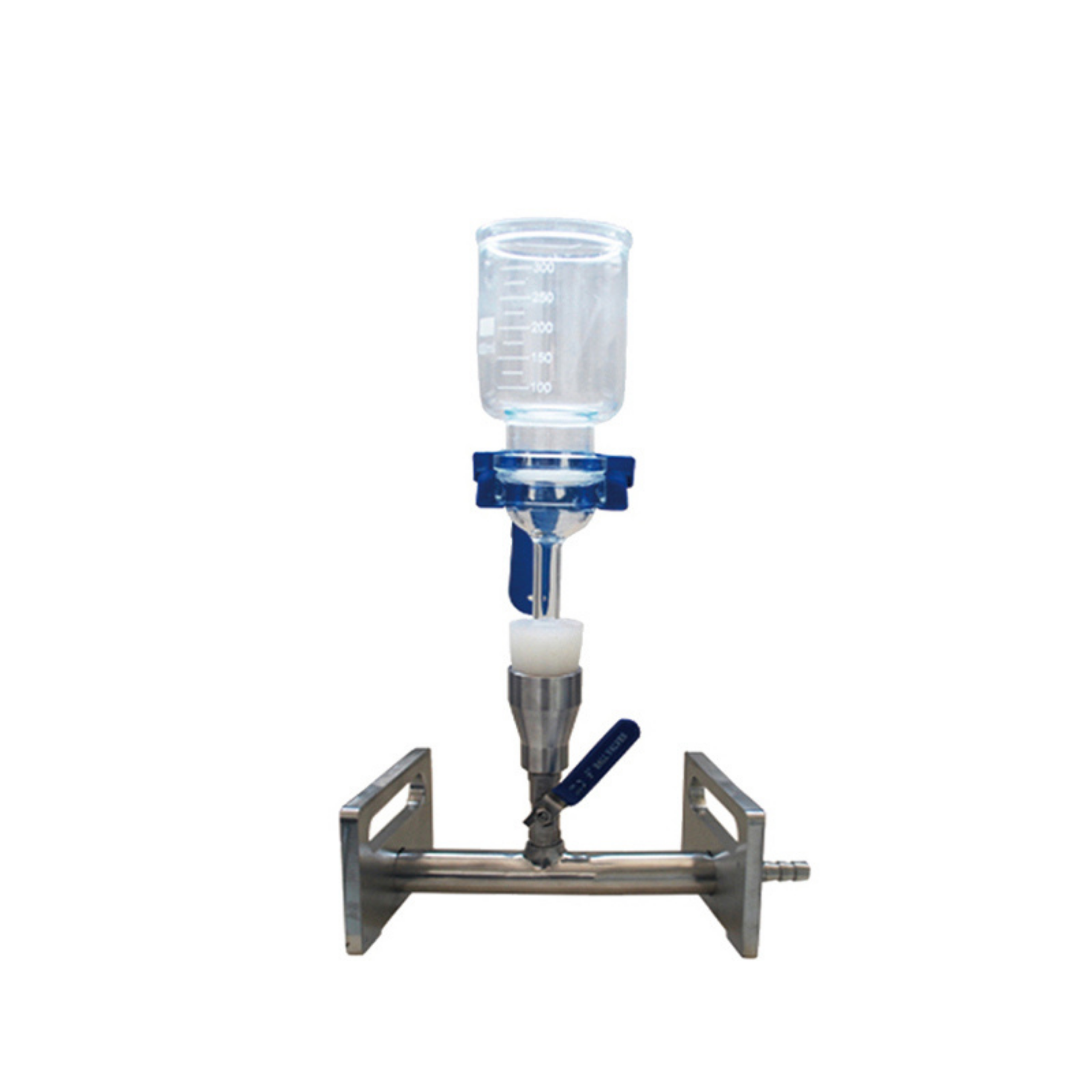

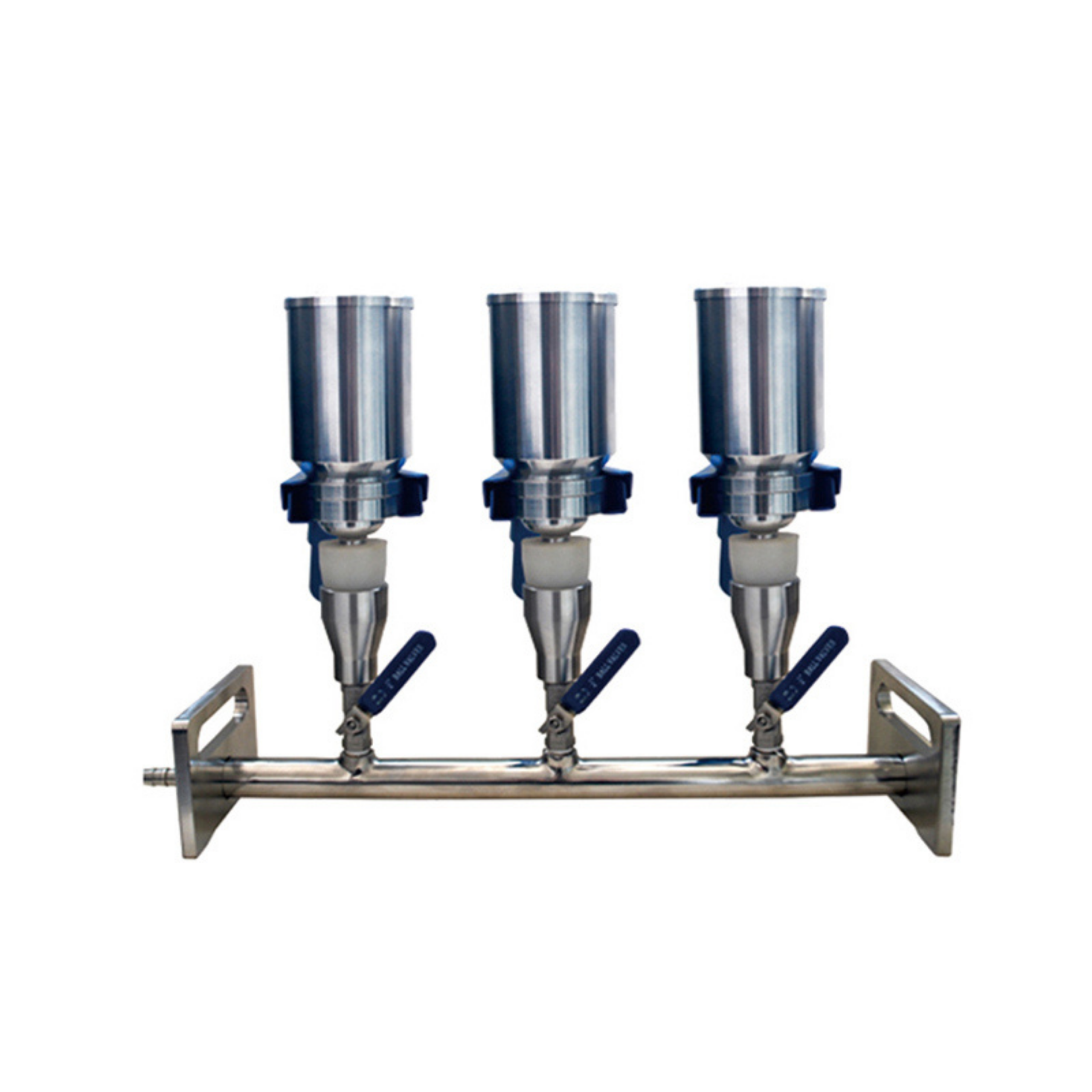

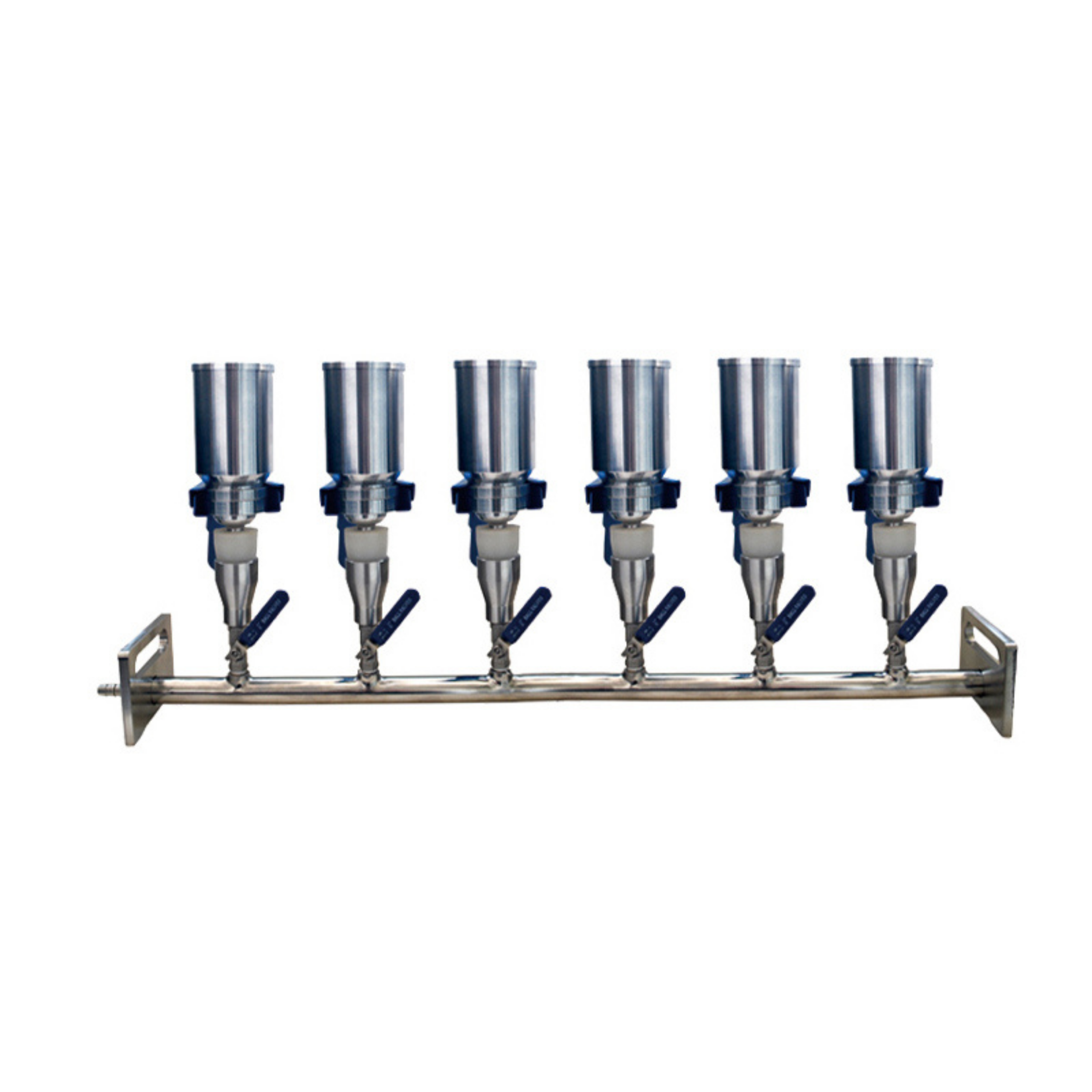

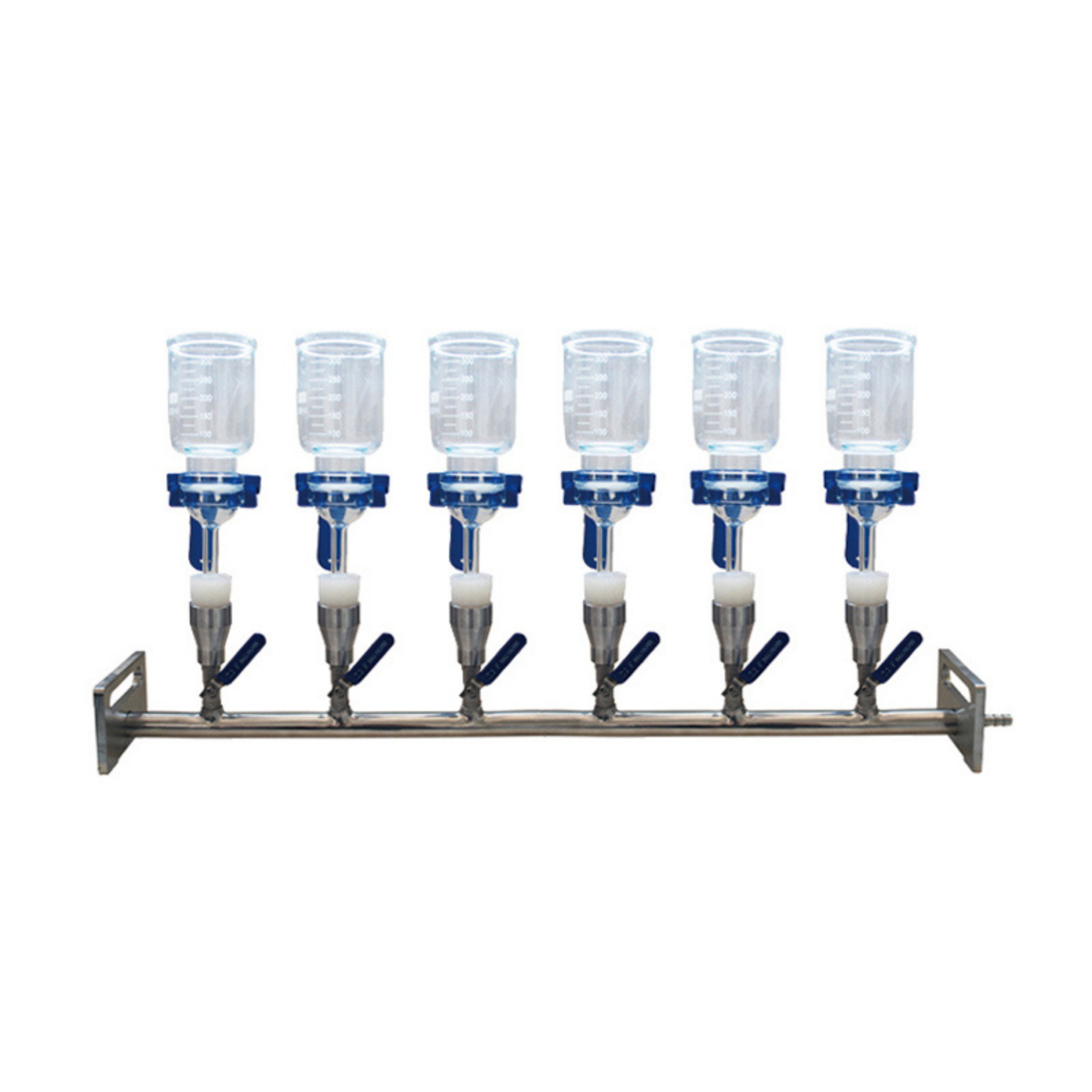

Manifolds Vacuum Filtration Features: 1. It is convenient to filtrate several samples at the same time. 2. 316L stainless steel holder, corrosion resistance, acid and alkali resistance. 3. Each holder has individual control valve, so one vacuum pump can support operations of single and multi-branch manifold filter. 4. It can be widely used in chemistry analysis, pharmaceutical, sanitation test, water quality analysis, science research fields and so on. Standard Accessories: 1.  316L stainless steel holder. 2.  Glass funnel(300ml)/316L stainless steel funnel(300ml). 3.  Borosilicate glass filter head/316L stainless steel filter head. 4.  Lid. 5.  Stainless steel valve. 6.  Clamp of aluminum alloy. Optional Accessories: 1. MVF-1G&MVF-1S: GM-0.2/0.33II/0.5/0.5II/1.0 Vacuum pump; Liquid collecting bottle. 2. MVF-3G&MVF-3S: GM-0.5/0.5II/1.0 Vacuum pump; Liquid collecting bottle. 3. MVF-6G&MVF-6S: GM-1.0 Vacuum pump; Liquid collecting bottle. Note: The vacuum pump and liquid collecting bottle are essential optional accessories. Otherwise, it cannot be used. Technical Parameters: Model Type Funnel Connection Holder Package Size(W*D*H) G.W. MVF-1G 1-branch Glass Ground Joint SS316 310*310*370mm 4kg MVF-1S SS316 Integral, SS316 SS316 270*260*140mm 3kg MVF-3G 3-branch Glass Ground Joint SS316 530*360*370mm 9kg MVF-3S SS316 Integral, SS316 SS316 490*260*140mm 5.7kg MVF-6G 6-branch Glass Ground Joint SS316 970*360*370mm 17kg MVF-6S SS316 Integral, SS316 SS316 920*260*140mm 10.3kg
