The Muffle Furnace is a high-temperature laboratory heating device designed for precise heat treatment, material testing, ashing, and calcination processes. It provides a controlled environment for heating materials to extreme temperatures while ensuring uniform temperature distribution.
$0.00

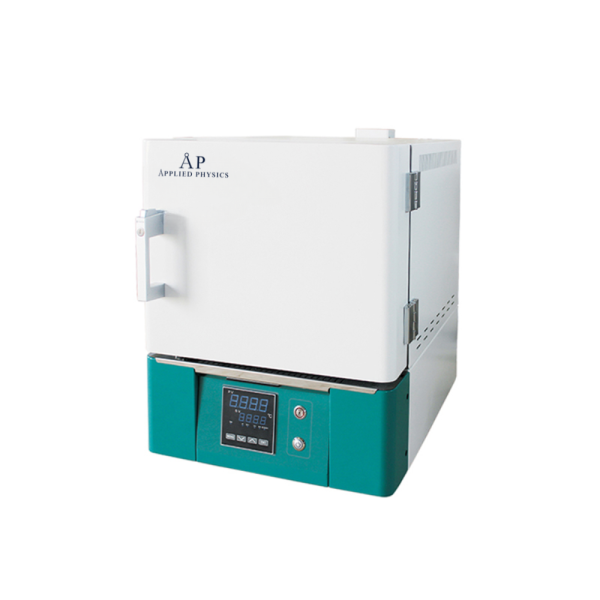

AP Medical MC2.5-12 MC5-12 MC10-12 Lab 1200 Degree Celsius Muffle Furnace
Features:
1. The fully mirrored stainless steel furnace mouth remains unchanged despite long-term use.
2. The high-quality, double-insulated ceramic liner ensures stable performance.
3. The vacuum-formed polycrystalline mullite fiber furnace chamber provides efficient heat preservation.
4. The high-precision microcomputer controller and precision sensors are perfectly integrated to ensure precise temperature control.
5. The double-shell design features an air jacket for insulation and dual air ducts, ensuring excellent ventilation and low shell temperature rise.
6. The power connection for MC10-12 is through the air switch
Technical Parameters:
Model
MC2.5-12
MC5-12
MC10-12
Max Temp.
1200°C
Temp. Rising Time(Empty)
≤30min
Temp. Accuracy
±1°C
Capacity(L)
2
7
16
Power(KW)
1.5
3
6
Power Supply
Standard: AC220V, 50/60Hz;
Optional: AC110V, 50/60Hz
Standard: AC380V, 50/60Hz;
Optional: AC220V, 50/60Hz
Internal Size(W*D*H)mm
120*200*80
200*300*200
250*400*160
External Size(W*D*H)mm
450*685*600
530*785*640
600*895*700
Packing Size(W*D*H)mm
570*770*740
650*870*780
720*980*845
Gross Weight(kg)
37
50
96
| Model | MC10-12, MC2.5-12, MC5-12 |
|---|
