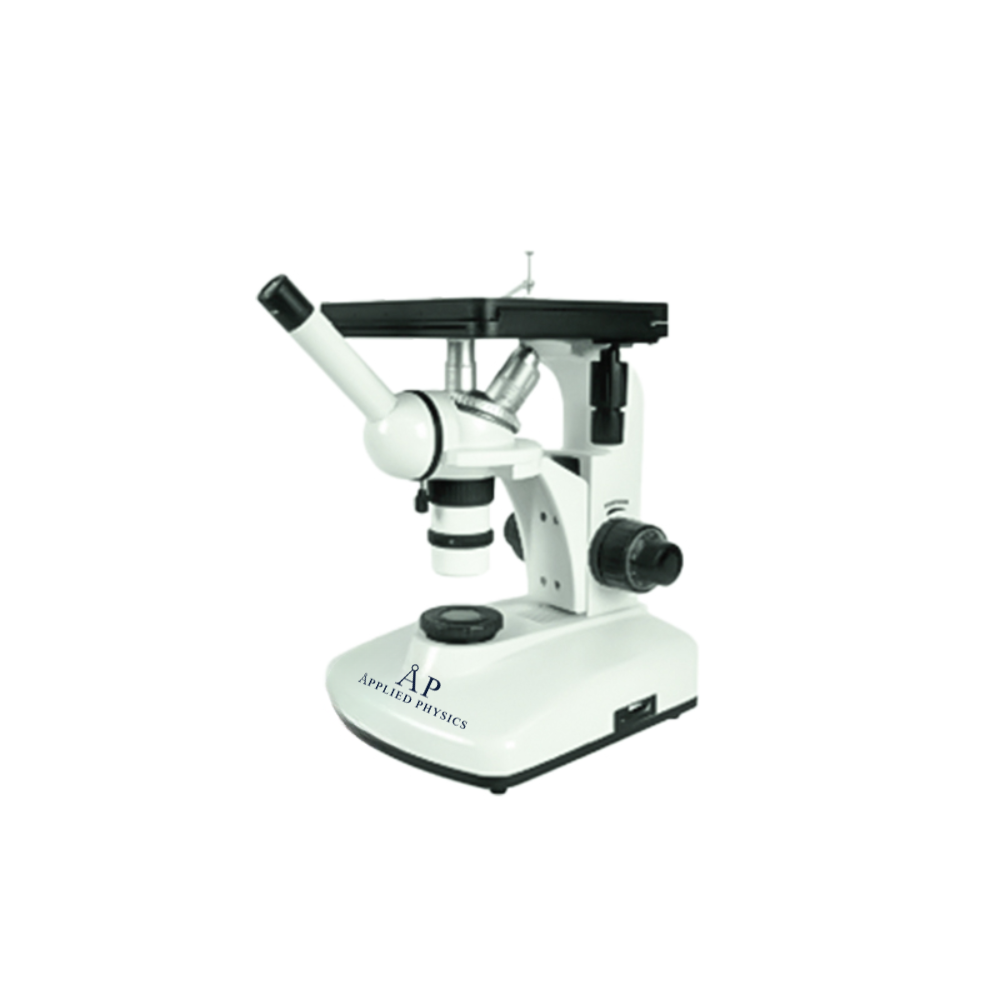

Metallurgical Microscope XJD-100 XJD-200 XDS-1 4XC

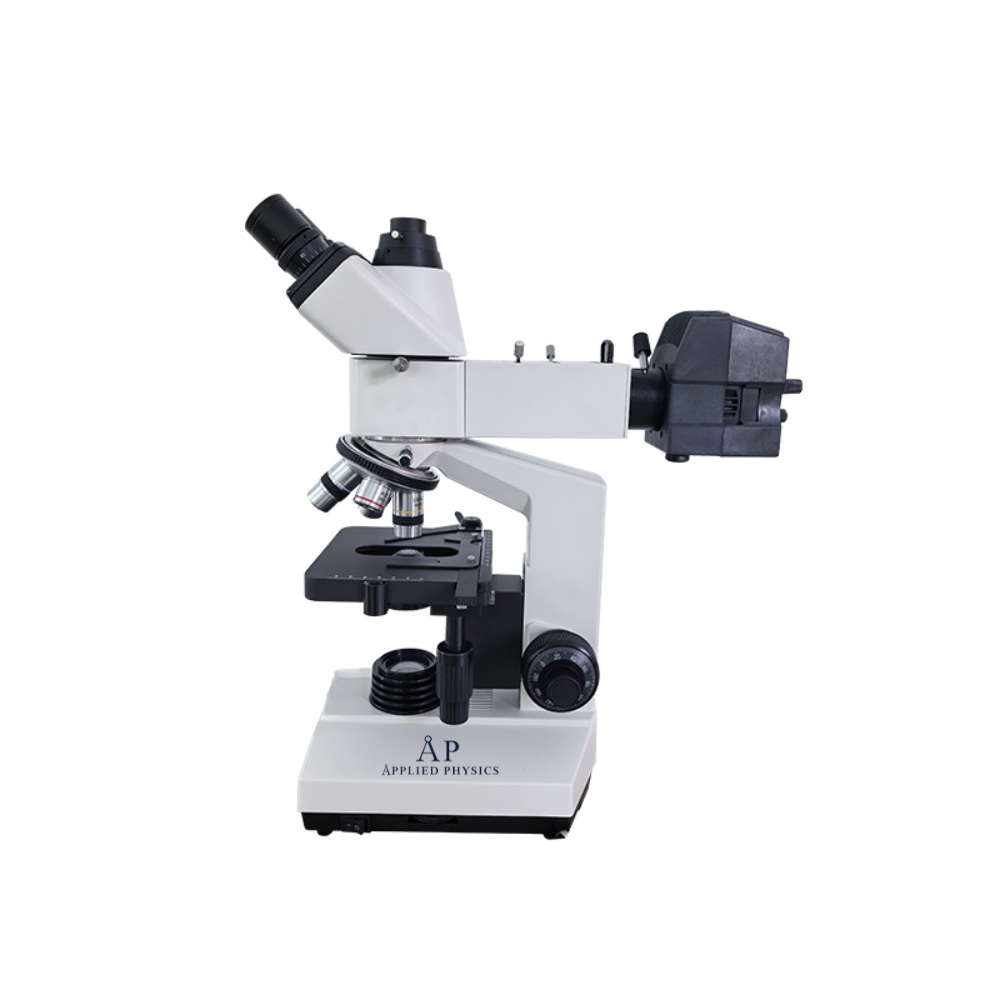

Metallurgical Microscope XJD-100 XJD-200 XDS-1 4XC - Image 2

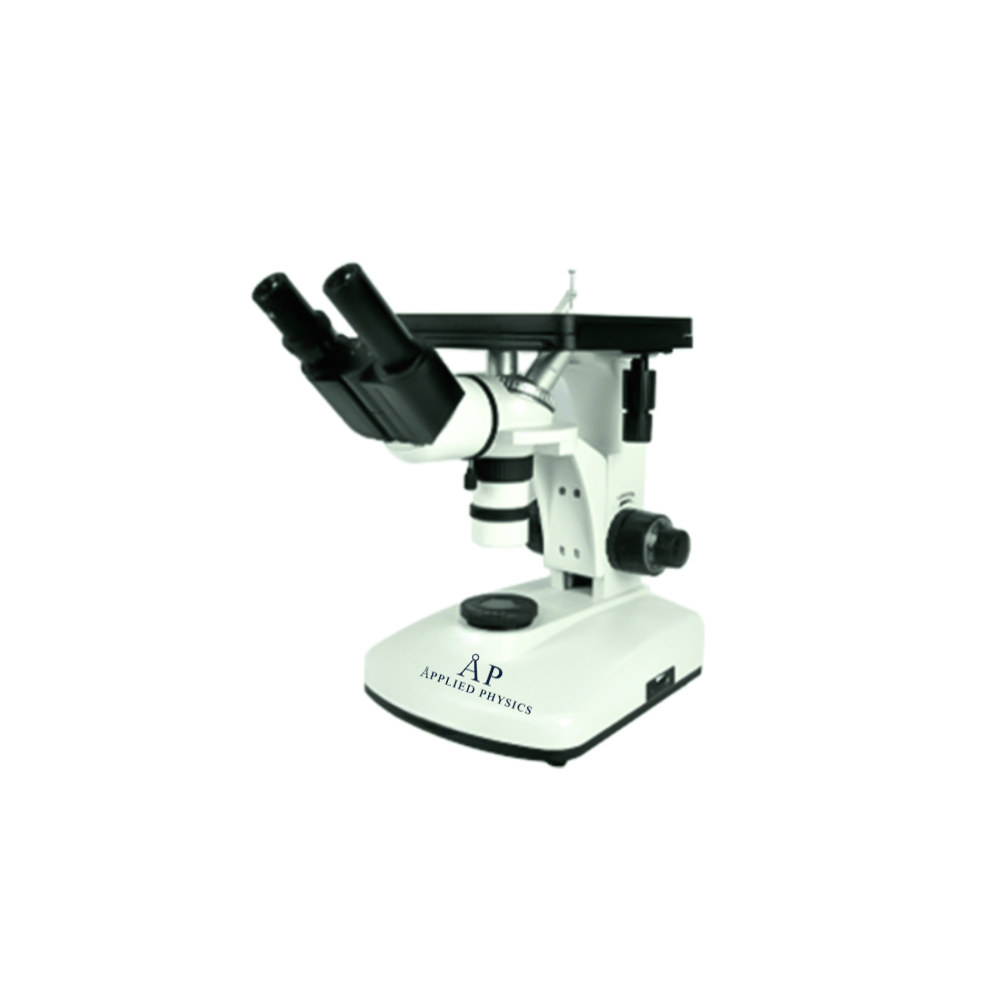

Metallurgical Microscope XJD-100 XJD-200 XDS-1 4XC - Image 3

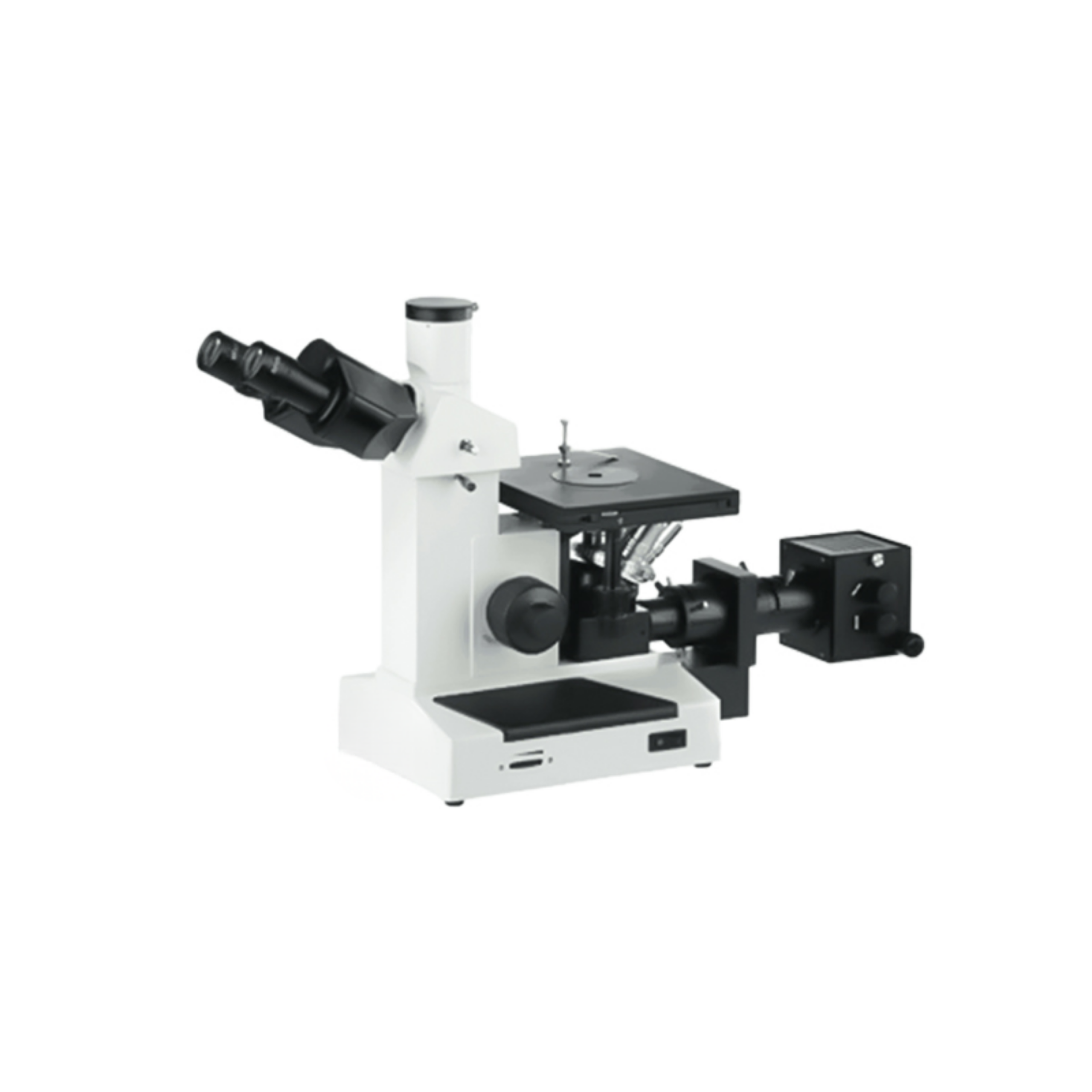

Metallurgical Microscope XJD-100 XJD-200 XDS-1 4XC - Image 4

Metallurgical Microscope XJD-100 XJD-200 XDS-1 4XC

Request a Quote

Metallographic microscope ‌ is a high-tech product which combines optical microscope technology, photoelectric conversion technology and computer image processing technology perfectly. It can easily observe metallographic images on a computer, analyze and grade metallographic maps, edit, save and print the pictures.

SKU: AP-MIC-MET-XJD-SER Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Technical Parameters:

Specification Model
XJD-100 XJD-200 XDS-1 4XC
Observation Head Monocular observation head tilted 45° √
Articulated binocular observation head tilted 45° √
Translational sliding trinocular observation head 45° tilt √
Articulated trinocular viewing head tilted 30 ° √
Nosepiece Four-aperture nosepiece √ √ √ √
Eyepiece WF10X √ √
WF10X18mm √ √
Objective Lens Achromatic objective lens: 10X, 100X

LWD plan achromatic objective: 40X

 √ √
Achromatic objective lens 4X, 10X, 40X, 100X √
LWD plan achromatic

objectives 10X, 20X, 40X,

Achromatic objective lens 100X

 √
Stage Double-layer mechanical platform 180*150mm moving range 15*15mm √
Double-layer mechanical platform 140*135mm moving range 70*50mm √
Double-layer mechanical stage 175*135mm √ √
Focusing Coaxial coarse and fine focusing, using rack and pinion mechanism, fine focusing value 0.002mm √ √ √ √
Illumination Built-in lighting, halogen lamp 6V/20W √ √ √
LED lighting √
Filter Blue, green, yellow √ √ √ √
Polarized Light √
Power Supply AC100~240V, 50/60Hz √ √ √ √
Packing Size 420*350*520mm 330*280*440mm; 370*260*470mm 400*300*450mm
Gross Weight 10kg 6.5kg; 5kg 11kg

Additional information

Model

XJD-100, XJD-200, XDS-1, 4XC
