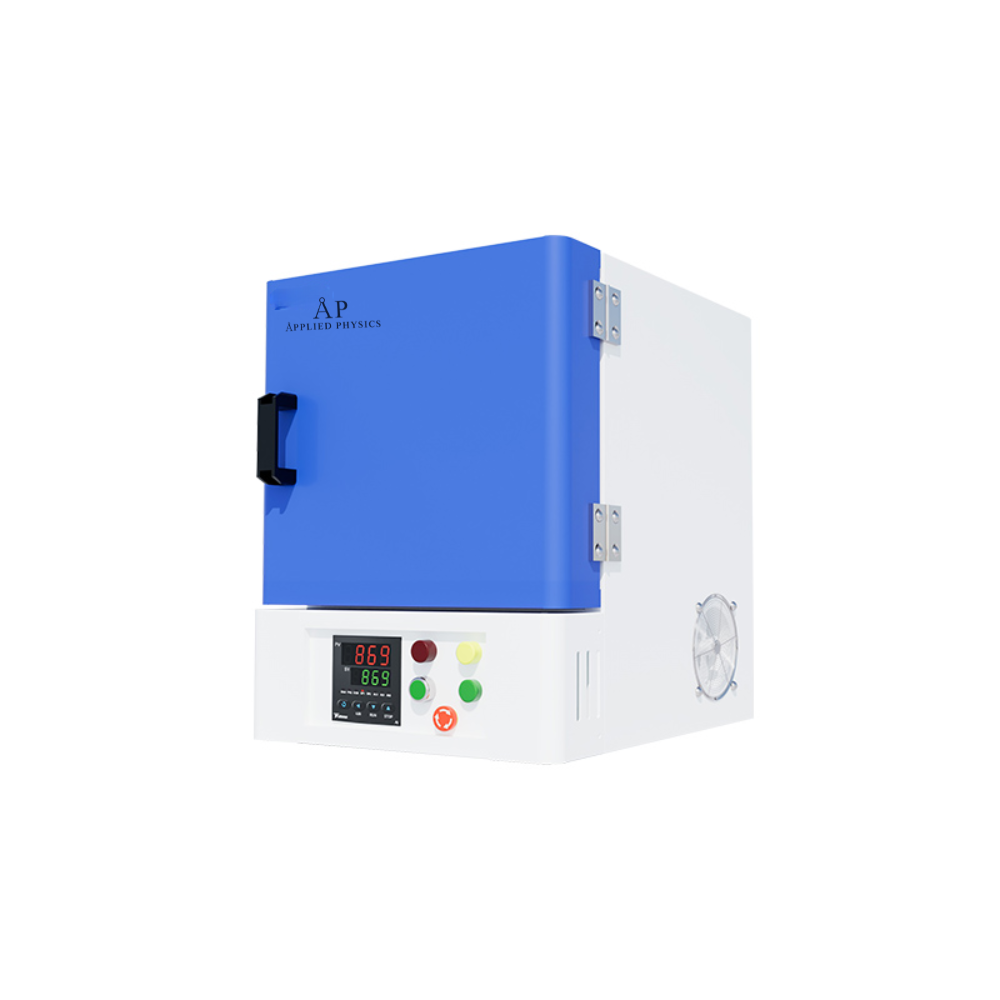

Muffle Furnace 2L 7.2L 16L 30L

Description

Muffle Furnace 2L 7.2L 16L 30L

Features:

1. External material: cold-rolled steel with anti-bacterial powder coating, Internal material: high density ceramic fiber.

2. Dual ceramic inner chamber and hollow heat insulation ensure that the temperature can go up quickly.

3. Automatic parallel pressure door technology ensures the inner chamber temperature evenness and without leakage under the high temperature.

4. PID micro digital screen controller, fixing temperature, over-temperature alarming and auto-stop.

5. Safety protection measures: thermocouple failure, cut off power automatically when open the door and over temperature protection to avoid accidents occurring.

6. Double-shell hollow thermal insulation, the shell not hot and the furnace interior cool quickly.

7. TP series has 50-segment programmable temperature control, T series only has a single temperature segment.

Technical Parameters:

Model

MX2-10T/TP

MX7-10T/TP

MX16.5-10T/TP

MX30.5-10T/TP

Max. Temp.(℃)

1000

Capacity(L)

2

8

16

30

Temp. Accuracy(℃)

1

Temp. Uniformity(℃)

±15

Rising Time(Empty)

40 minutes

Material

External material: cold rolled steel carbon steel spraying

Internal material: ceramic inner chamber

Heating Element

Iron-chromium-aluminum

Function TP series has 50-segment programmable temperature control, T series only

has a single temperature segment

Standard Accessory

Two crucibles, one pair of crucible pliers

Optional Accessory

Power off upon door opening, timing function

Consumption(KW)

1.5

3.5

6

12

Power Supply

Standard: AC220V, 50/60Hz; Optional: AC110V, 50/60Hz

Standard: AC380V, 50Hz

Internal Size(W*D*H)mm

200*120*80

300*200*120

400*250*160

500*300*200

External Size(W*D*H)mm

420*500*545

520*600*670

590*720*730

650*820*760

Package Size(W*D*H)mm

512*590*595

612*690*780

682*820*780

742*920*810

Gross Weight(kg)

75

95

180

240
