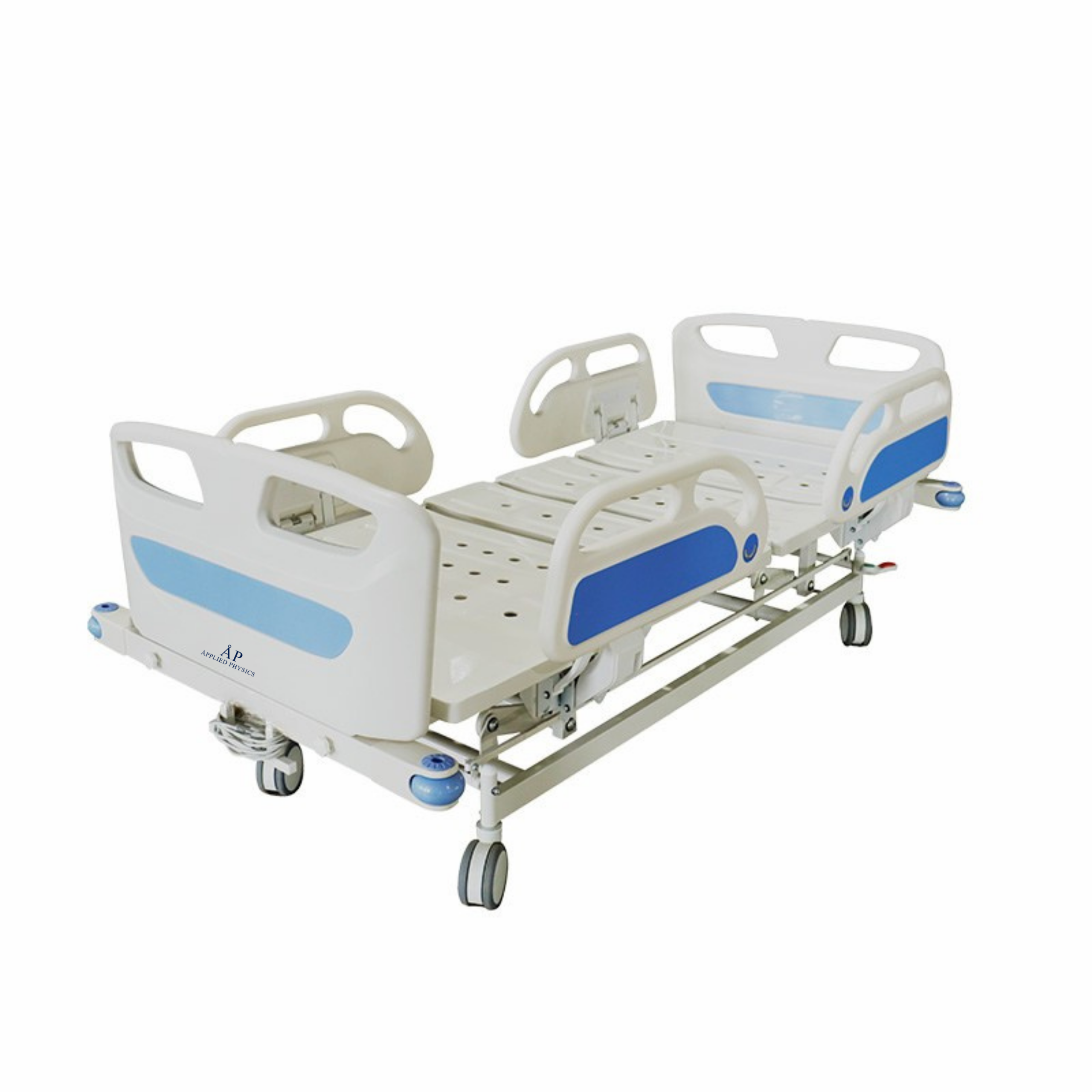

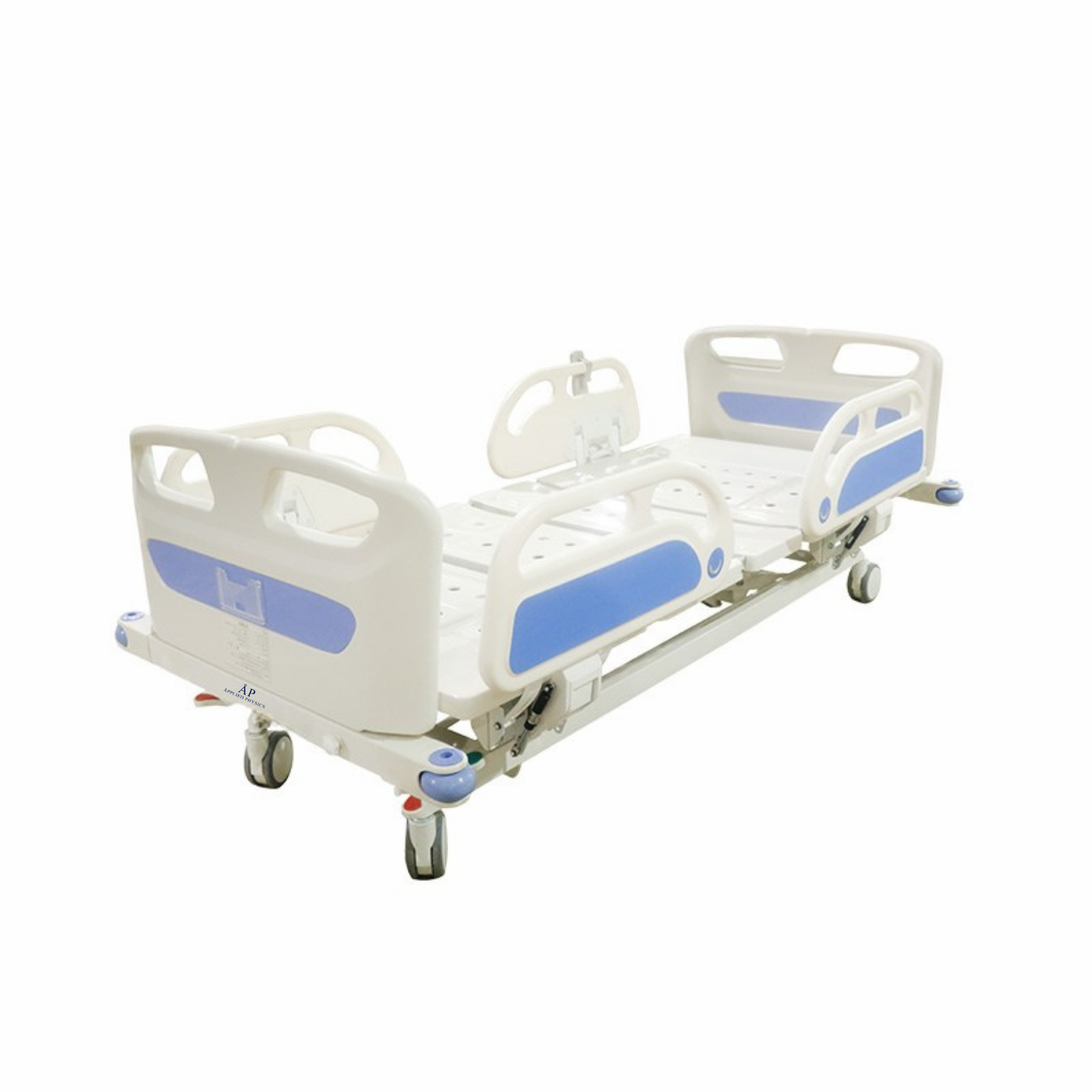

Multifunctional Electric Bed

Multifunctional Electric Bed Features: * Use high-quality materials: the bed frame and the bed board are made of high-quality steel plate, and the surface is electrostatically sprayed; the head and foot of the bed are made of ABS high-quality engineering plastics for one-time molding. * Casters: 125mm central control casters, flexible rotation, one-foot brake, four-wheel brake, safety, stability, high wear resistance, no noise. * Guardrails: Butterfly-shaped lifting guardrails are used on both sides to keep up and down synchronously with the bed board. The angle display accurately displays the angle of each part and can be easily lifted. * Electronic control system: using high-quality motors and control systems, the system runs stably and has high safety. Technical Parameters: Model MF401D-22 MF301DS-22 InstrumentSize 2250*1115*500~800（±10）mm 2165*1115*530~770mm BackAngle 75°±5° BentLegAngle 35°±5° BackplateAdjustableAngleRange 0°~70° ThighPlateAdjustableAngleRange 0°~30° AdjustableAngle ofCalfBoard 0°~10° BackwardTiltAngle ofTheWholeBed ≥12°(electric) ≥12°(manual) FrontTiltAngle ofTheWholeBed ≥12°(electric) / LiftingRange 500~800mm 520~770mm GuardrailHeight (above the bed) 380mm(±10mm) OverallForwardAngle ≥12° / OverallTiltAngle ≥12° / SafeLoad 175kg Power supply 110~220V,50/60Hz Net Weight 145kg Package Size 2200*1200*730mm Gross Weight 215kg
