Neonatal Jaundice Therapy Apparatus BHZ-001 BHZ-002

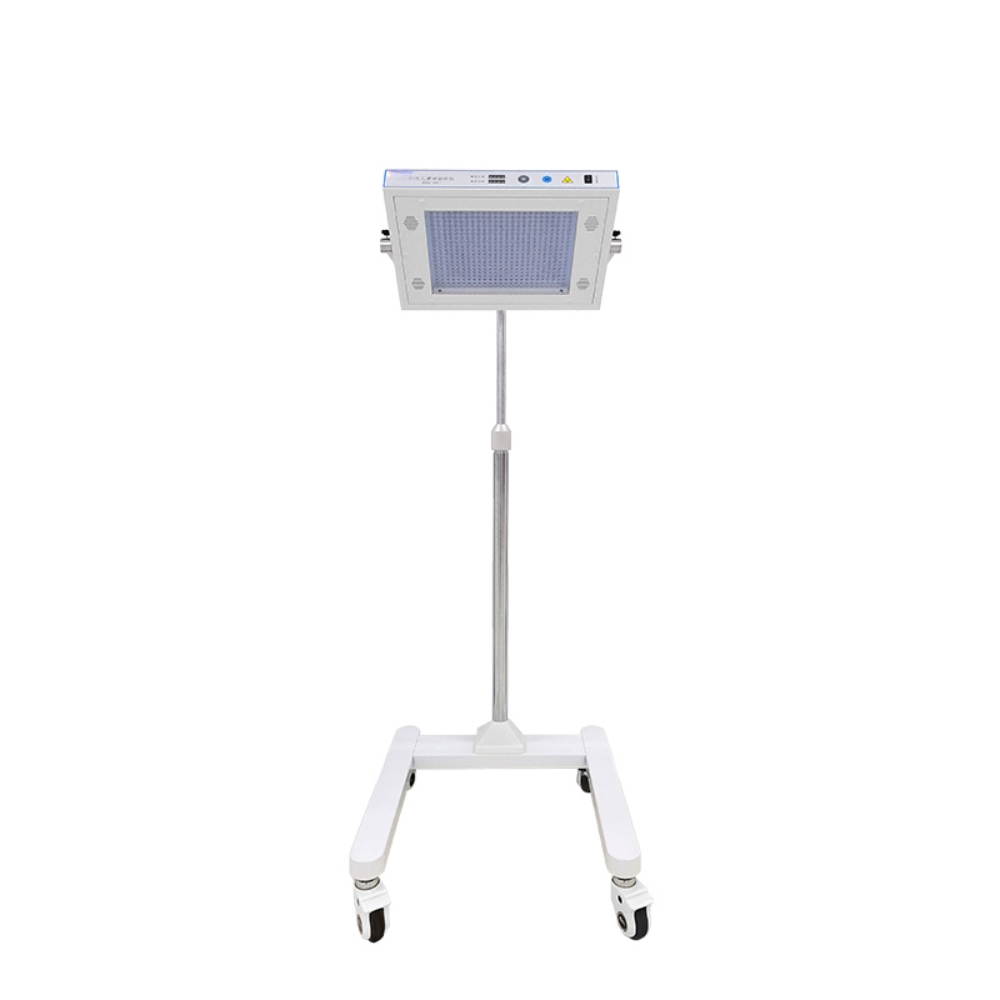

Neonatal Jaundice Therapy Apparatus BHZ-001 BHZ-002 Features: BHZ-001: 1. The adjustable range of the irradiation angle for the  mobile jaundice treatment lamp box should be from 0° to 90°, with free adjustment up and down. 2. Square lift guide, guide to prevent left and right rotation at the same time. BHZ-002: 1. It can be fixed to the top of the incubator by the bottom suction cup. Technical Parameters: Model BHZ-001 BHZ-002 Light Source LED Dominant Wavelength of Blue Light(nm) 425~475 Lifetime of the LED 5000h Product Service Life 6 years Radiation Therapy Distance(mm) Distance light box 450 Distance light box 450 Phototherapy Effective Surface Area(mm) 300*200 The Total lrradiance for Maximum Bilirubin on the Effective Surface Area 5.2mW/cm2±0.5mW/cm2 2.4mW/cm2+0.3mW/cm2 The Total lrradiance on the Effective Surface Area? ≥2.5mW/cm2 ≥1.0mW/cm2 Average Value of the Total lrradiance for Bilirubin 4.0mW/cm2±0.5mW/cm2 1.5mW/cm2±0.5mW/cm2 Uniformity of the Total lrradiance for Bilirubin >0.4 Noise ≤45dB(A) Light Box lrradiation Angle Adjustment Range 0~90° adjusted up and down Light Box Height Adjustment Range(mm) 1350~1650 Display Timer Range 0~9999hours59minutes Ambient Air Movement Rate(m/s) <0.3 Working Temp. 5~35℃ Working Relative Humidity 30%~80% Working Atmospheric Pressure 700~1060hPa Overvoltage Category II Pollution Grade 2 Waterproofing Grade IPXO Application Environment Elevation(m) ≤3000 Power Supply AC100~240V, 50/60Hz External Size(W*D*H) 705*620*1350~1650mm 470*320*65mm Packing Size(W*D*H) 750*710*1250mm 615*415*180mm Net Weight 15kg 4kg Gross Weight 33kg 5.1kg
