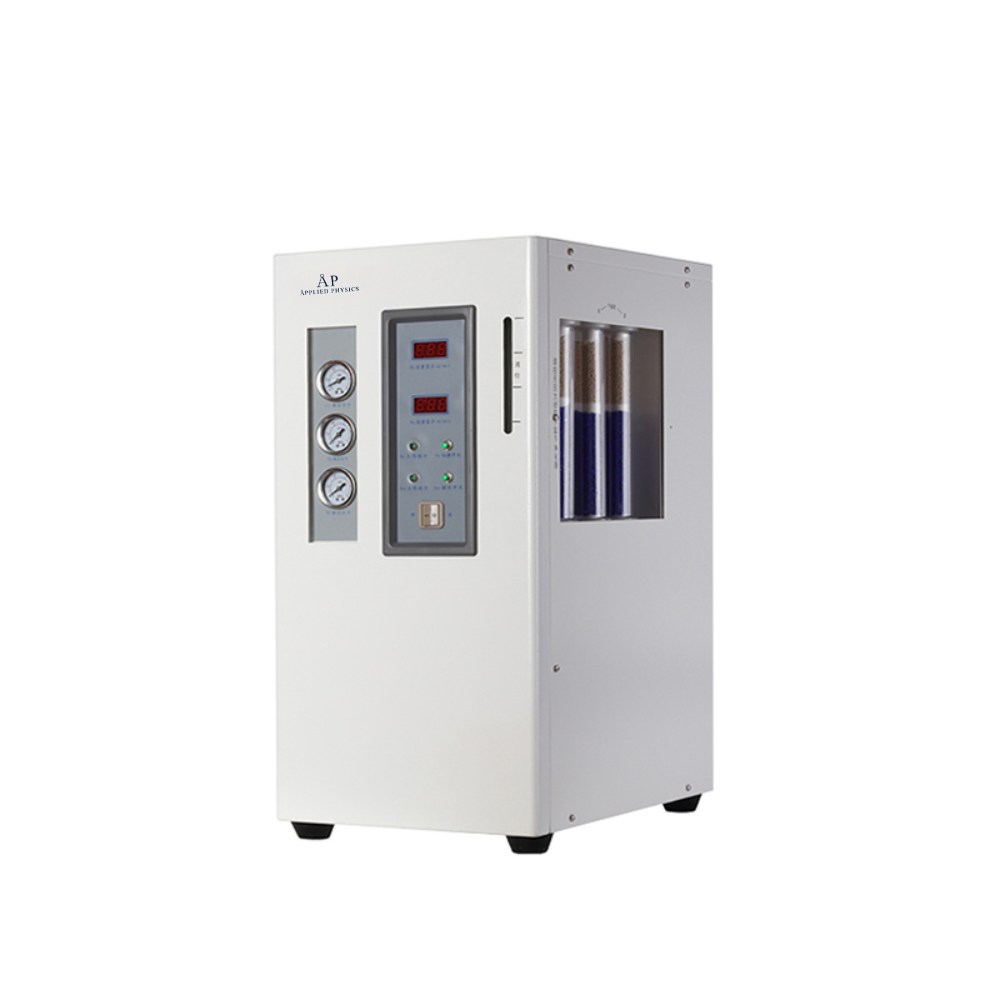

Nitrogen & Hydrogen & Air Generator

Description

Nitrogen & Hydrogen & Air Generator

Features:

1. Compact structure, high integration, easy to use, saving laboratory space.

2. Stainless steel gas storage tank, safe and reliable, can replace laboratory cylinders.

3. Hydrogen part: automatic anti-retum alkali, automatic flow tracking, three-stage filtration.

4. Nitrogen part: automatic anti-retum alkali. Automatic flow tracking, three-stage filtration.

5. Oil-free compressor, better air quality, heat insulation pad choose dow, cylinder type electrolytic cell electrolytic area, long service life.(NHA-300G)

6. Air part: use oil-free compressor, stainless steel gas tank, two-stage voltage stabilization, three-stage filter, high precision, automatic drainage and perfect protection measures.

Technical Parameters:

Model

NHA-300G

NHA-300II

Output Flow(ml/min)

Nitrogen Hydrogen

0~300ml/min

Output Pressure

Nitrogen Hydrogen Air

0~0.5Mpa(Factory setting 0.4Mpa)

Purity

Nitrogen

>99.997%

Hydrogen

>99.999%

Surrounding Requirement

Temperature

10~40°C

Humidity

≤85%, No large amount of dust and corrosive gas

Consumption

850W

500W

Power Supply

AC220V±10%, 50Hz±5%(Standard)

AC110V, 60Hz(Optional)

Instrument Size(W*D*H)

300*455*665mm

Package Size(W*D*H)

530*380*750mm

Gross Weight

46kg

39kg
