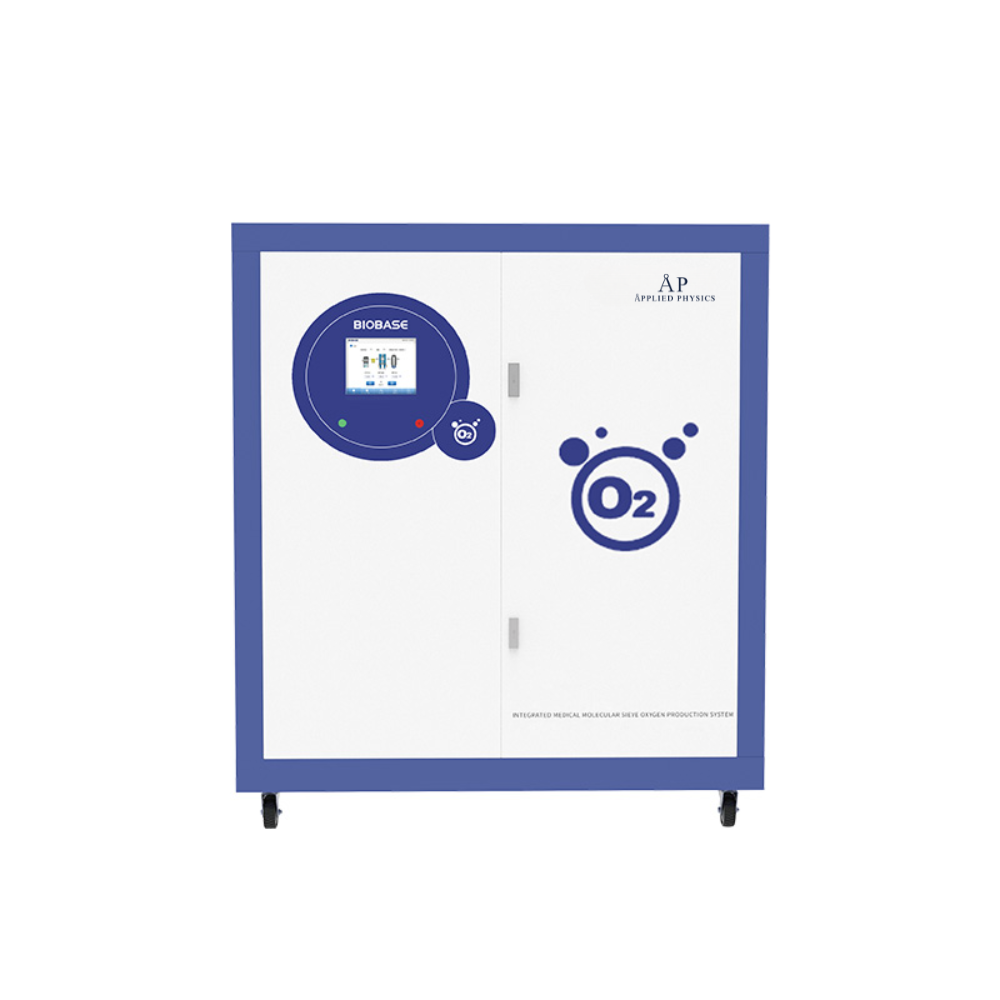

Oxygen Production System

Description

Oxygen Production System

Features:

1. Overall structure assembly, easy installation, unique technology to achieve zero pressure start.

2. Professional oxygen filter, improve filtration efficiency.

3. Precision gas mass flow controller, real-time measurement and control of oxygen flow.

4. 10 inch color human-computer interaction interface, automatic control, easy to use.

Technical Parameters:

Model

BSZY-3

BSZY-6

BSZY-10

Oxygen Supply Flow(m³/h)

3.0

6.0

10.0

Oxygen Concentrations

≥90%

Oxygen Outlet Pressure

0.2~0.5MPa adjustable

Consumption(KW)

9

13

25

Power Supply

AC380V, 50Hz; Three-phase AC220V, 50Hz(Optional)

Noise

≤85dB(A)

Using Temp.

5~40℃

Environmental Humidity

≤80%

External Size(mm)

1900*1380*1945

1900*1430*1945

2100*1530*2115

Package Size(mm)

2070*1520*2100

2070*1570*2100

2270*1670*2270

Net/Gross Weight(kg)

960/1120

1030/1200

1300/1500
