Description

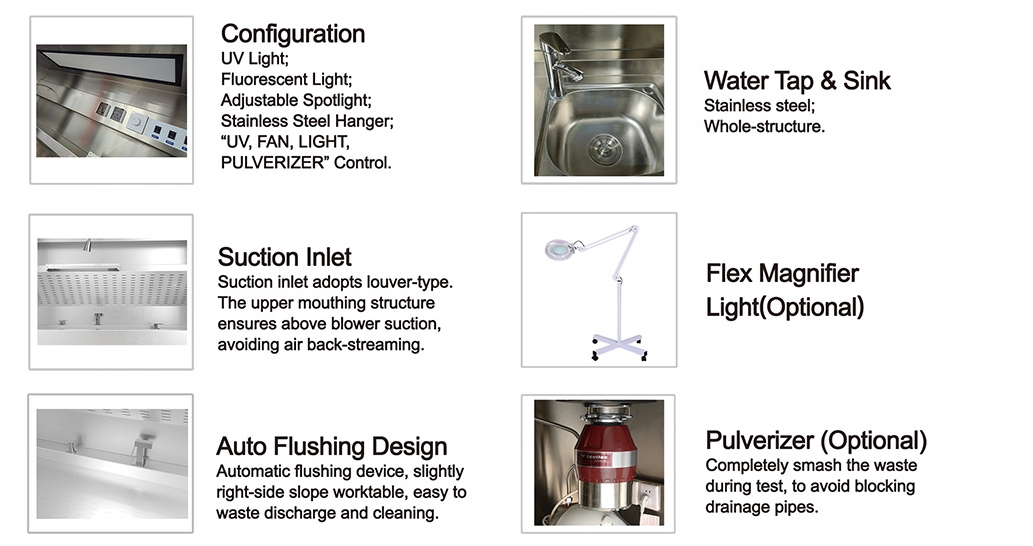

Application: Pathological sampling bench is widely used in hospital pathology department, pathology laboratory, etc. Reasonable ventilation system protects operator away from the harmful gas produced by the formalin during sampling. The hot&cold water system ensures it can adapt work in different climates. Features: 1. Odor-remove function. 2. Single water sink, two-person operations. 3. Exhaust air system: High-power suction device, low noise. 4. Optional water heater is available, realizing hot&cold water adjustment. 5. The base cabinet is inward-concave type, convenient for sitting operation. 6. Optional pulverizer can completely smash the waste during test, to avoid blocking drainage pipes. 7. Automatic flushing device, slightly right-side inclined worktable, easy for waste discharge and cleaning.
Technical Parameters:
| Model | QCT-1000 | QCT-1500 | QCT-1800 | |
| External Size(W*D*H) | 1000*750*1950mm | 1500*750*1950mm | 1800*750*1950mm | |
| Working Area Size(W*D*H) | 895*430mm | 1395*430mm | 1695*430mm | |
| Work Surface Height | 850mm | |||
| Consumption | 300W | 300W | 300W | |
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Exhaust Airflow Volume | 500~600m³/h | |||
| Material | Main Body | 304 stainless steel | ||
| Work Table | 304 stainless steel | |||
| Standard Accessories | Built-in fan, UV lamp, spotlight, LED lighting, telescopic faucet, activated carbon filter, hot and cold taps, transparent socket, sink, side countertop flushing part | |||
| Optional Accessories | Water heater, pulverizer, eye washer, magnetic adsorption tool, LED floor magnifying glass, sampling plate, computer stand, stainless steel paper box, camera, large object imaging system, splash guard, hand dryer, external exhaust fan | |||
| Package Size(W*D*H)mm | 1160*890*2170 | 1660*890*2170 | 1960*890*2170 | |
| Gross Weight | 250kg | 300kg | 340kg | |
Applied Physics Medical · Pathology workstations
Ventilated pathology sampling with a defined local exhaust path

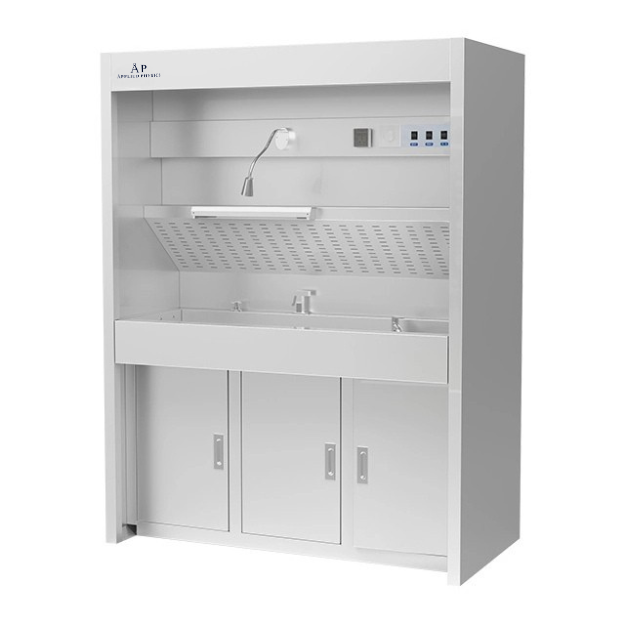

The QCT-1500 is a pathology sampling workstation for hospital pathology departments and pathology laboratories. The published configuration combines local exhaust, stainless work surfaces, lighting, sink/plumbing features and accessories around the sampling workflow.
External size1500 × 750 × 1950 mm
Working area1395 × 430 mm
Exhaust airflow500–600 m³/h
Construction304 stainless steel
Pathology sampling
Designed around pathology sampling and grossing workflows where local fume capture and cleanable work surfaces are important.
Workflow utilities
Published standard accessories include built-in fan, lighting, sink, faucet, activated-carbon filter and work-surface flushing features.
Configuration
Confirm facility exhaust connection, voltage, accessories, drainage/plumbing and the intended pathology workflow before quoting.
Use the product’s native quote control for the actual QCT-1500 configuration and voltage selection.
Technical FAQ
Questions engineers and validation teams ask
Product relationship
Applied Physics OEM Medical
This is Applied Physics-branded OEM medical or laboratory equipment, contract manufactured for Applied Physics. Applied Physics provides product selection, quotation and customer support.
Applied Physics portfolio: Medical
Pathology workstation quote checklist
Confirm workstation footprint, operator workflow, ventilation/formalin-control requirement, sink and utilities, storage, work-surface accessories, delivery path and installation constraints.
Product family: Applied Physics Medical › Pathology Lab Equipment › Pathology WorkstationsCatalog relationship: Applied Physics OEM Medical
