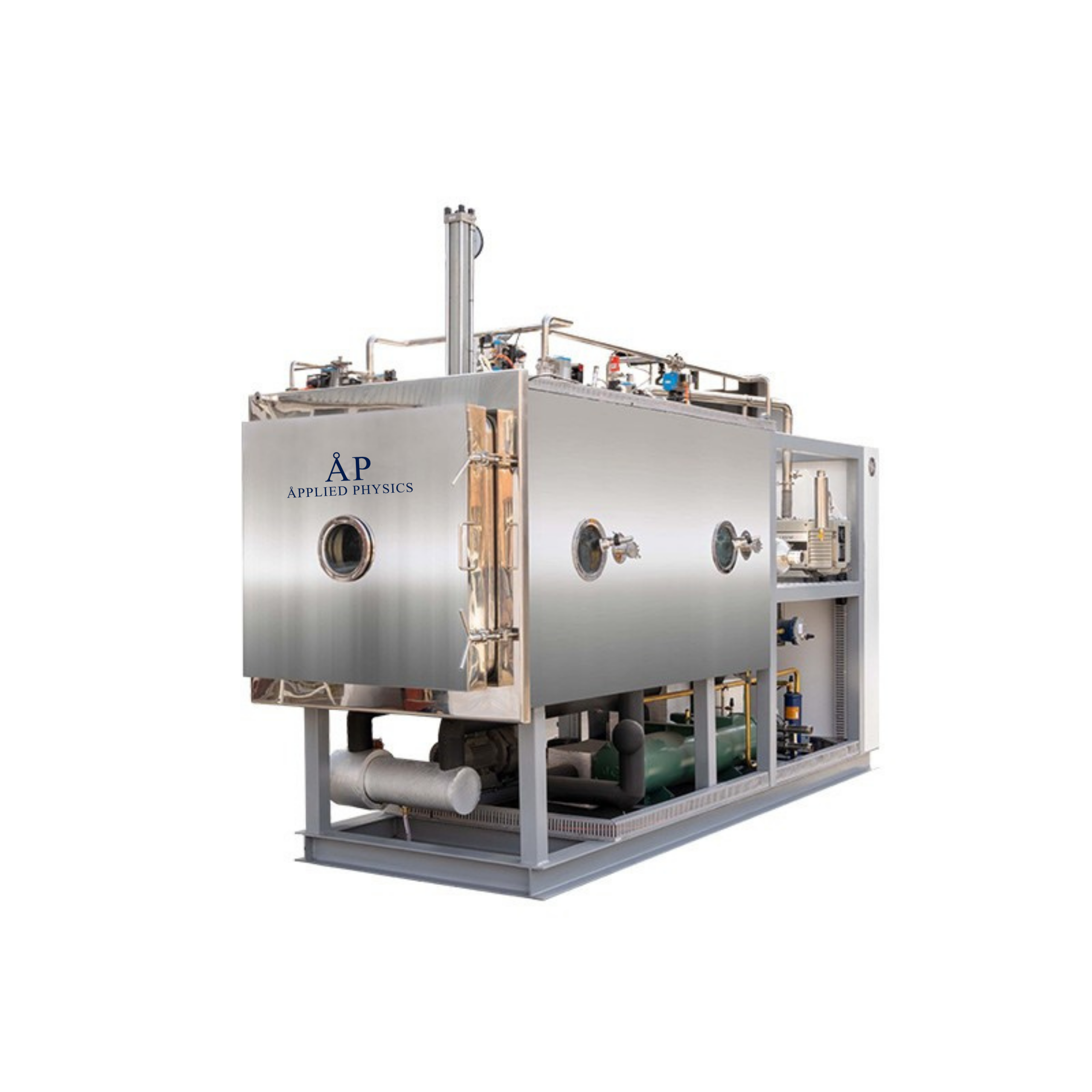

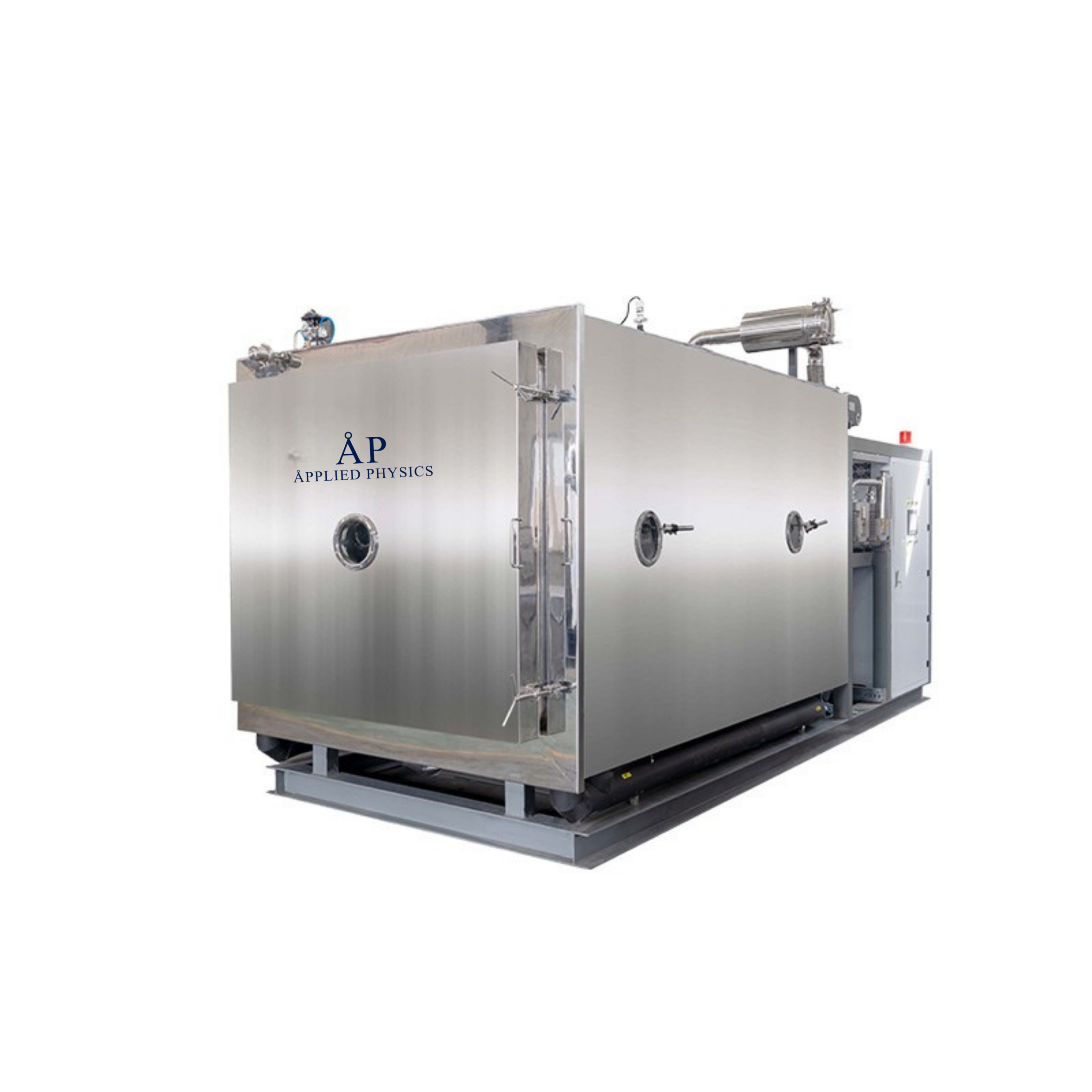

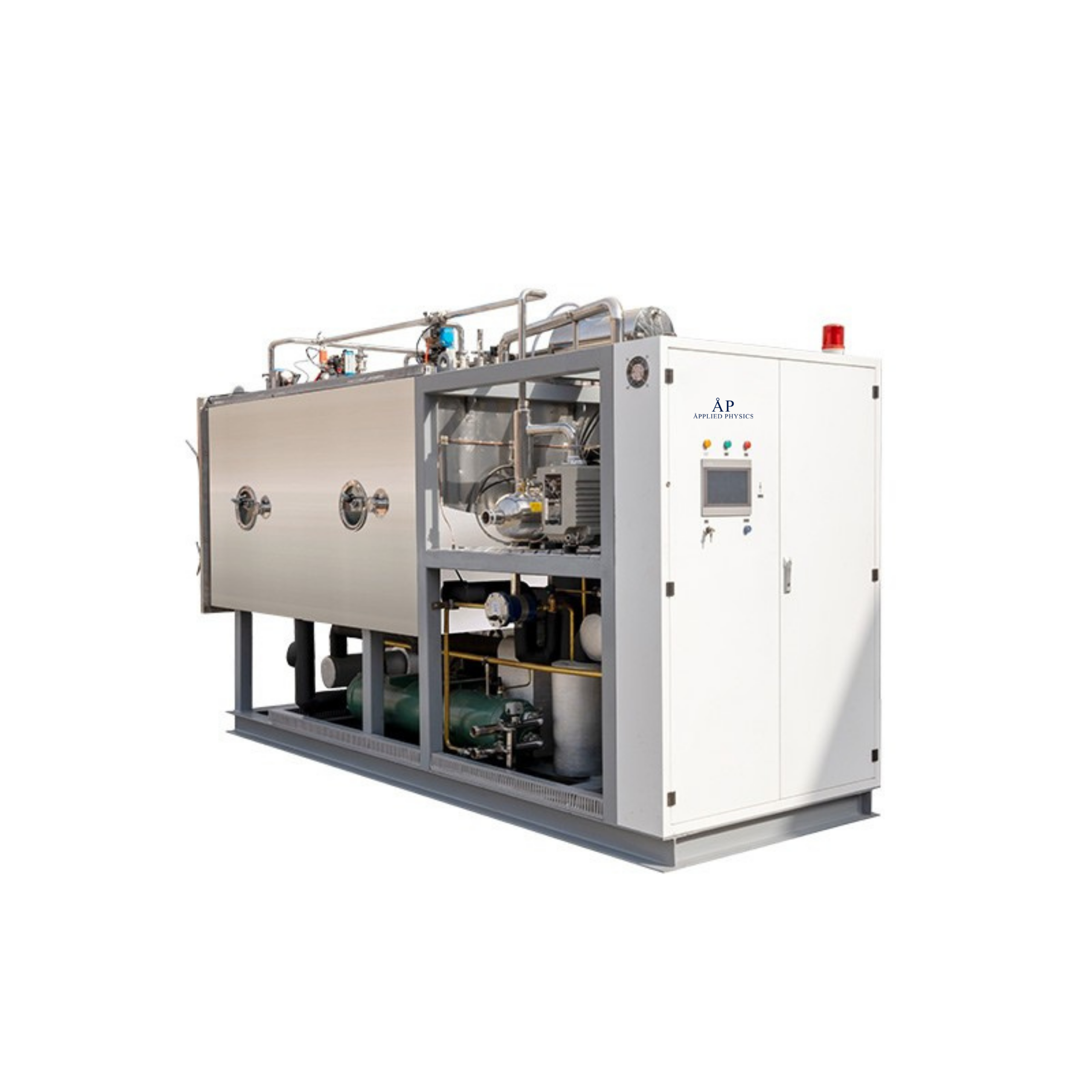

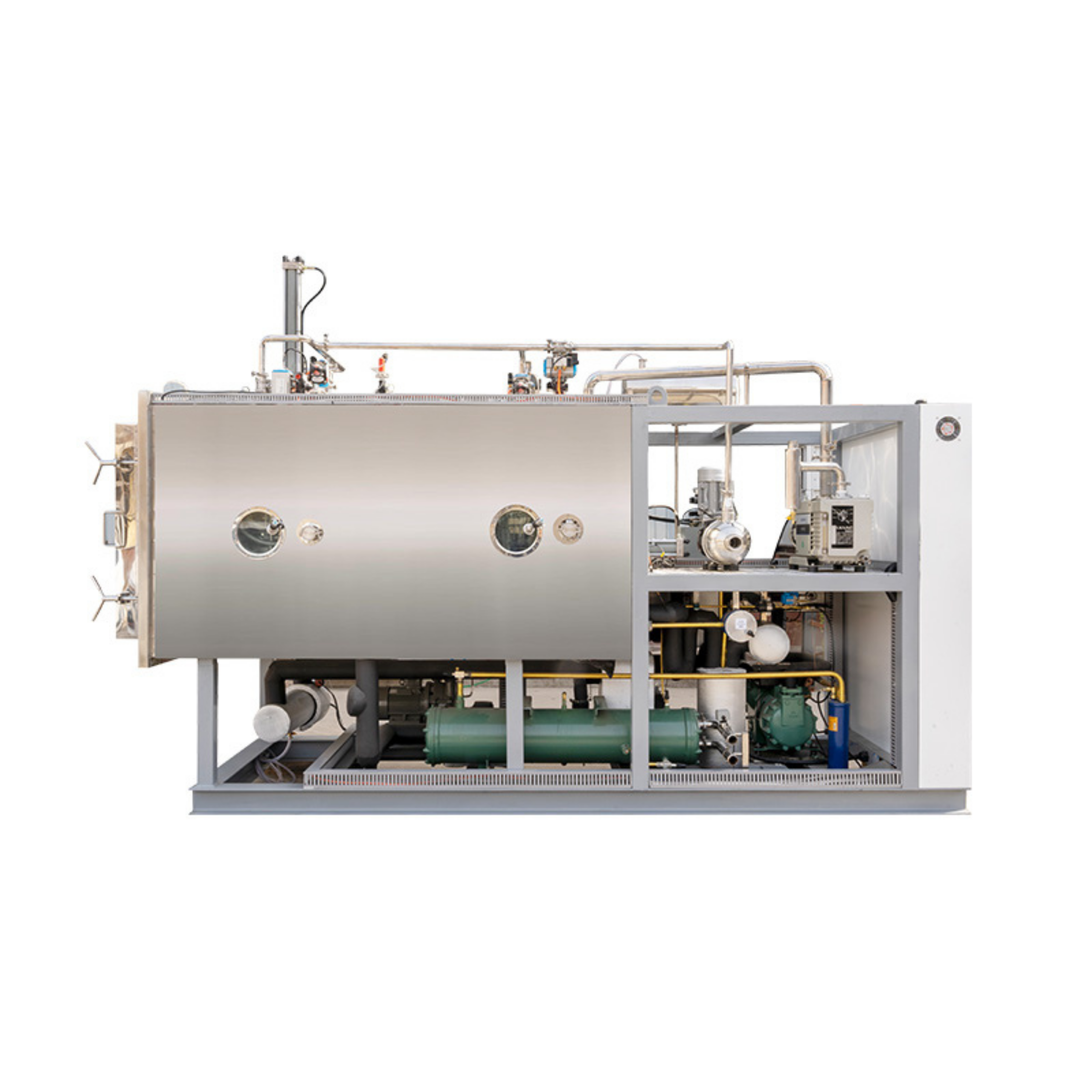

Pharmaceutical Freeze Dryer

Description

Pharmaceutical Freeze Dryer

Application:

Widely used in vaccine, traditional Chinese medicine, biopharmaceutical, biochemical drugs, biological agents, probiotics, extracts, nutritional supplements, diagnostic reagents, blood products and other freeze-dried products manufacturing.



Advantage:

1. The cabinet is processed in one piece, reducing the risk of leakage. The interior structure of the cabinet is simple, without dead corners, making it easy to clean and sterilize.

2. The plate layers are manufactured using patented welding technology, ensuring temperature uniformity and improving heat exchange efficiency.

3. The steam flow guiding device maximizes the effectiveness of the cold trap area. The cold trap coil has a large and even ice formation.

4. The vacuum system is high-performance, with a large exhaust capacity, significantly improving product sublimation and freeze-drying efficiency.

5. The refrigeration system operates independently in a closed loop. The Bitzer refrigeration unit has strong cooling capacity, low energy consumption, and a large reserve of cooling capacity.

6. Advanced PLC and SCADA systems enable operators to easily manage the freeze-drying system and complete complex freeze-drying process cycles.

7. Provide front-end equipment such as filling machines and automatic material handling systems according to customer requirements.

8. Pharmaceutical freeze dryers can be configured with CIP (Clean-in-Place) and SIP (Sterilize-in-Place) options as needed to meet GMP (Good Manufacturing Practices) requirements.

9. Customization available based on user requirements.



Parameter:

Model

BK-PFD5MS

(Standard)

BK-PFD5MT

(Stoppering)

BK-PFD10MS

(Standard)

BK-PFD10MT

(Stoppering)

BK-PFD20MS

(Standard)

Freeze Drying Area(m2)

5.25

10.5

20.2

Vacuum Level(Pa)

≤1

Cold Trap Temperature(℃)

-75

Maximum ice capacity(kg/B)

＞100

＞200

＞400

Shelf Temperature Range(℃)

-50~+70

Shelf Size(W*D*H) (mm)

750*1000*20

990*1520*20

1220*1520*20

Number of Shelf Layers(pcs)

7+1

7+1

7+1

Stoppering Mode

/

automatic

/

automatic

/

Total Qty. Of Vial (φ16mm（2ml)）

22540

45360

84942

Dimensions(mm)

4000*1360*2800

5500*1670*2800

6500*1980*2800

Power Supply

AC380V 50Hz

Overall Power

24kw

46kw

85kw



Model

BK-PFD20MT

(Stoppering)

BK-PFD30MS

(Standard)

BK-PFD30MT

(Stoppering)

BK-PFD40MS

(Standard)

BK-PFD40MT

(Stoppering)

Freeze Drying Area(m2)

20.2

30

41

Vacuum Level(Pa)

≤1

Cold Trap Temperature(℃)

-75

Maximum ice capacity(kg/B)

＞400

＞600

＞800

Shelf Temperature Range(℃)

-50~+70

Shelf Size(W*D*H) (mm)

1220*1520*20

1220*1520*20

1520*1800*20

Number of Shelf Layers(pcs)

7+1

10+1

15+1

Stoppering Mode

automatic

/

automatic

/

automatic

Total Qty. Of Vial (φ16mm（2ml)）

84942

131967

179955

Dimensions(mm)

6500*1980*2800

7500*2280*2900

7500*2280*3300

Power Supply

AC380V 50Hz

Overall Power

85kw

160kw

180kw
