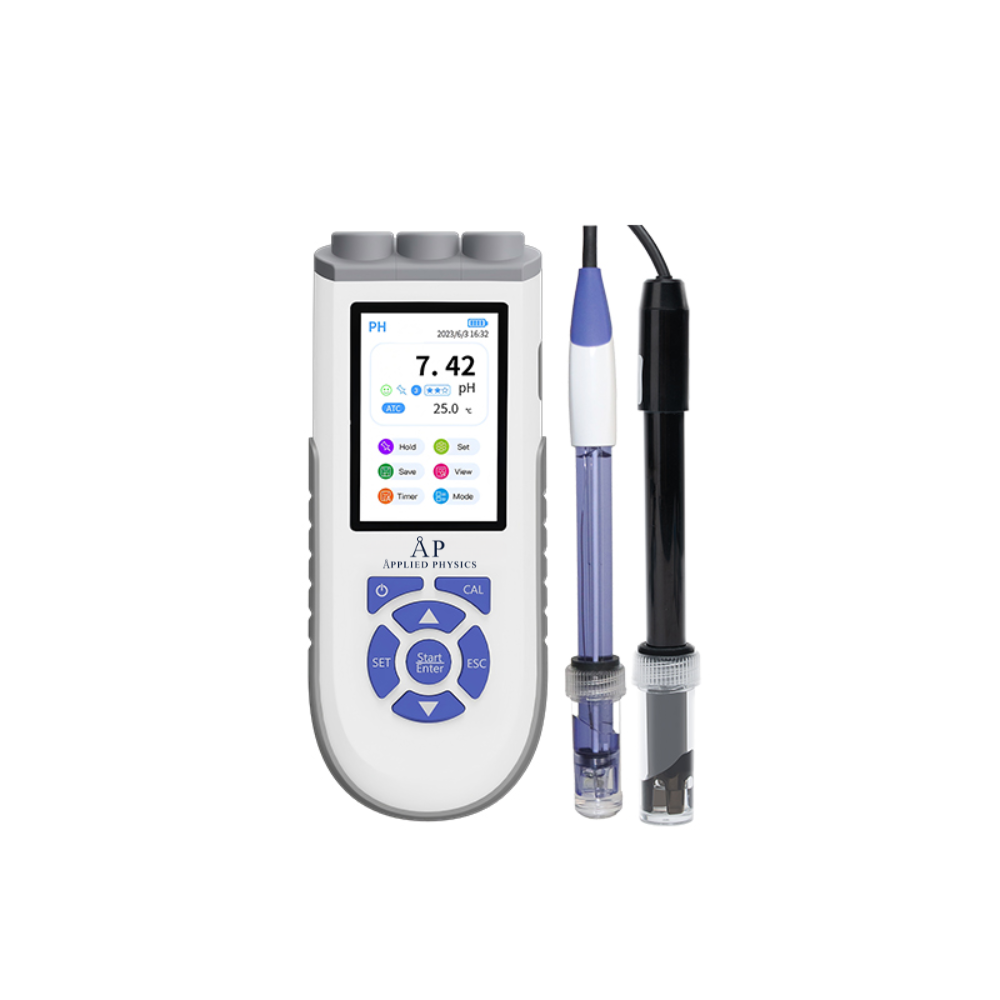

AP Medical Portable Multiparameter Meter is a compact, reliable, and easy-to-use device designed for fast and accurate water quality analysis in the field or laboratory.
$0.00
Portable Multiparameter Meter PH-PC10 PH-CD10 PH-PD10
Features:
1. 3.5-inch color screen, user-friendly interface.
2. Data logging up to 3000 groups.
3. Cal points: pH: 1~3pts; Cond: 1pt; DO: 100% Oxygen or Zero oxygen calibration.
4. Equipped with a USB Type-C charging port, conforms with the EU new law.
5. Ideal for use in harsh environments — IP57 Waterproof and Dustproof rating, silicone socket protector and grip cover protect the instrument from general impact.
6. Large backlit LCD displays measuring value and temp. along with icons of stable readings.
7. Foldable stand allows use as a benchtop meter.
8. For general liquid test.
Accessories:
PH-PC10: Meter; plastic ATC pH electrode D201T-H; pH buffer solution: 4.00/7.00/10.01 50mL, one for each; plastic cond electrode;(K=1.0, PC housing, for general liquid test); standard cond solution: 84uS/1413uS/12.88mS/cm, 50mL, one for each; Type-C charger cable; hard carrying case.
PH-CD10: Meter; POM DO electrode; DO refill solution: 30mL*1; DO replacement sensor caps*3; plastic cond electrode(K=1, PC housing, for general liquid test); standard cond solution: 84μS/1413μS/12.88mS/cm, 50mL, one for each; USB-C charger cable; hard carrying case.
PH-PD10: Meter; plastic ATC pH electrode*1; pH buffer solution: 4.00/7.00/10.01 50mL, one for each; POM DO electrode; DO refill solution: 30mL*1; DO replacement sensor caps*3; USB Type-C charger cable; hard carrying case.
Technical Parameters:
Model
PH-PC10
PH-CD10
PH-PD10
pH
Range
-2.000~20.000pH
/
-2.000~20.000pH
Resolution
0.01/0.1/0.001pH
/
0.01/0.1/0.001pH
Accuracy
±0.002pH±one digit
/
±0.002pH±one digit
mV(ORP probe optional)
Range
-1999mV~1999mV
/
-1999mV~1999mV
Resolution
0.1mV
/
0.1mV
Accuracy
±0.03%FS±one digit
/
±0.03%FS±one digit
Conductivity
Range
0~2000.0mS/cm(Auto divided: 0~19.999μS/cm; 20.0~199.9μS/cm; 200~1999μS/cm; 2.00~19.99μS/cm; 20.00~199.9μS/cm; 200.0~2000μS/cm), match test range: 0~200.0mS/cm
/
Resolution
0.001/0.01/0.1/1
/
Accuracy
±0.5%FS±one digit
/
ATC Range
0~50℃
/
TDS
Range
0~1000.0g/L(TDS factor adjustable)
/
Resolution
0.001/0.01/0.1/1
/
Accuracy
±0.5%FS±one digit
/
ATC Range
0~50℃
/
Resistivity
Range
5.000~100.0MΩ·cm
/
Resolution
0.001/0.01/0.1/1
/
Accuracy
±0.5%FS±one digit
/
ATC Range
0~50℃
/
Salinity
Range
0~100.0ppt
/
Resolution
0.001/0.01/0.1/1
/
Accuracy
±0.5%FS±one digit
/
ATC Range
0~50℃
/
DO
Range
/
0~20.00mg/L, 0~200.0%
Resolution
/
0.01 or 0.1mg/L
Accuracy
/
±0.30mg/L
ATC Range
/
0~50℃ automatically
Salinity Compensation
/
0~45ppt manual
Barometric Compensation
/
0~200kPa automatically
Temperature
Range
-10.0~135.0℃/14.0~275.0℉
Resolution
0.1℃
Accuracy
±0.2℃
Data Storage/Content
3000 groups(Serial number, mode, measuring value, temp, date: Y/M/D/H/M)
Data Export/Charging Port
Type-C-USB
PC Software Function
GLP measurement management
Two-level user management
The user’s operation history log
Meter usage management
Automatically/manually timing data storage
Power Requirements
Rechargeable lithium battery*1
External Size(W*D*H)
79*32*204mm
Package Size(W*D*H)
380*330*130mm
Net Weight
305g
Gross Weight
3kg
| Model | PH-CD10, PH-PC10, PH-PD10 |
|---|
