Description
Biosafety cabinet is a box-type air purification negative pressure safety device that can prevent the aerosol escape of some dangerous or unknown biological particles in the process of experimental operation. It is widely used in scientific research, teaching, clinical testing and production in the fields of microbiology, genetic engineering and biological products, and is the most basic safety protection equipment in the first-level protective barrier of laboratory biosafety.

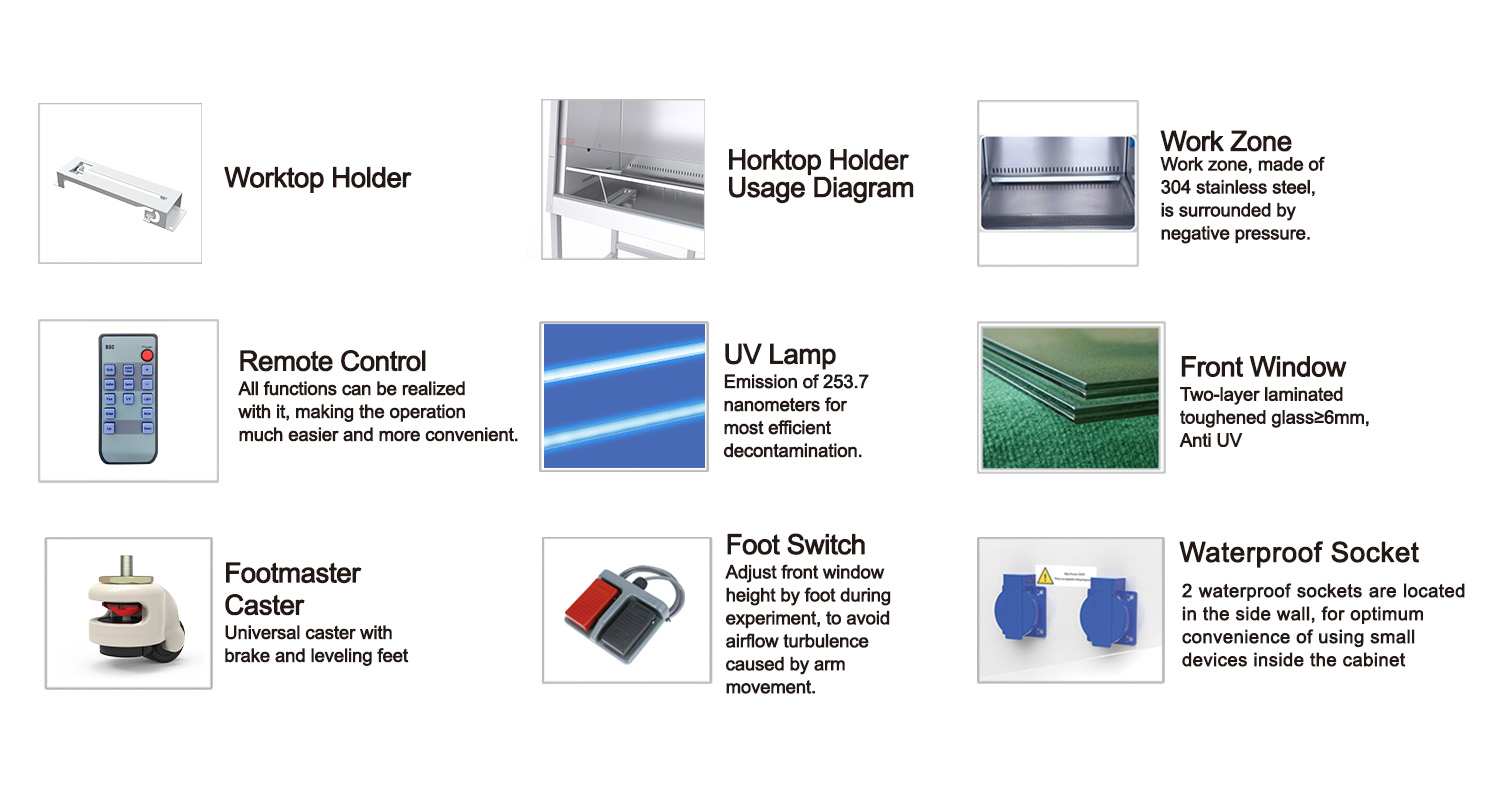

Features: 1. Larger angle of view, easy to operate and more humanized. 2. Motorized front window. 3. ULPA filter life and UV life indicator. 4. Time reserve function. 5. With memory function in case of power-failure. 6. Self-locking button switch to solve the trouble of losing the key. 7. 7 inch Large touch screen with Intelligent control system: operators can check detailed status of the cabinet, such as inflow and downflow velocity, work area temperature and humidity, filter pressure, UV working time and filter working time, filter life indicator etc. 8. Audio and visual alarm: filter replacement, window over height, abnormal air flow velocity, etc.High filter pressure alarm. 9. Remote control: all functions can be realized with it, making the operation much easier and more convenient. 10. Interlock function: UV lamp and front window, UV lamp and blower, LED lamp, blower and front window. 11. Foot switch: adjust front window height by foot during experiment, to avoid airflow turbulence caused by arm movement.
Technical Parameters:
| Model | BSC-1100IIB2-Pro | BSC-1500IIB2-Pro | BSC-1800IIB2-Pro | |
| External Size(W*D*H) | 1100*750*2255mm | 1500*770*2290mm | 1875*795*2280mm | |
| Internal Size(W*D*H) | 940*600*655mm | 1350*600*660mm | 1700*600*660mm | |
| Tested Opening | Safety height 200mm(8") | |||
| Max Opening | 420mm(17") | 500mm(20") | 480mm(20") | |
| Inflow Velocity | 0.53±0.025m/s | |||
| Down Flow Velocity | 0.33±0.025m/s | |||
| ULPA Filter | Two, 99.9995% efficiency at 0.12μm, filter life indicator | |||
| Front Window | Motorized, two-layer laminated toughened glass≥6mm, anti UV | |||
| Noise | ≤ 67dB | |||
| UV Lamp | 30W*1 | 40W*1 | 40W*1 | |
| UV timer, UV life indicator, emission of 253.7 nanometers for most efficient decontamination | ||||
| Illuminating Lamp | LED lamp | |||
| 12W*2 | 16W*2 | 16W*2 | ||
| Illumination | ≥1000Lux | |||
| Consumption | 800W | 1300W | 1400W | |
| Waterproof Sockets | Two, total load of two sockets: 500W | |||
| Display | 7 inch touch screen display: exhaust filter and downflow filter pressure, filter and UV lamp working time, inflow and downflow velocity, filter life, humidity and temperature, system working time, etc | |||
| Control System | Microprocessor | |||
| Airflow System | 0% air re-circulation, 100% air exhaust | |||
| Alarm | Abnormal airflow velocity, Filter replacement, Front window at unsafe height, High filter pressure alarm | |||
| Exhaust Duct | 4 meters PVC duct, Diameter: 300mm | |||
| Material | Work Zone: 304 stainless steel | |||
| Main Body: Cold-rolled steel with anti-bacteria powder coating | ||||
| Work Surface Height | 750mm(Size can be customized according to requirements) | |||
| Caster | Footmaster caster | |||
| Power Supply | AC220V±10%, 50/60Hz; 110V±10%, 60Hz | |||
| Standard Accessory | LED lamp*2, UV lamp*2, base stand, remote control, foot switch, exhaust blower, exhaust duct, drain valve, waterproof sockets*2, pipe strap*2 | |||
| Optional Accessory | 1. Water and gas tap, Electric height adjustable base stand. 2. Wind speed self adjustment function, real-time compensation for wind speed through sensor monitoring. 3. APP networking remote control. 4. USB data transfer function, supporting data monitoring and export. 5. LED fluorescent lamp brightness adjustment function. 6. Base bracket with manual or electric height adjustment function. 7. Manual lifting front window function. 8. Manual automatic lifting front window function. | |||
| Package | Main Body | 1250*980*1765mm | 1640*980*1825mm | 2000*1040*1895mm |
| Exhaust Blower(W*D*H) | 920*790*690mm | 920*790*790mm | 920*790*840mm | |
| Gross Weight | 265kg; 50kg | 325kg; 56kg | 420kg; 60kg | |
Product relationship
Available Through Applied Physics
Applied Physics supplies and supports quotation of this product. Product branding and manufacturer information, where stated on the product page or supporting documentation, remain authoritative.
Applied Physics portfolio: Medical
Biological safety cabinet quote checklist
Confirm cabinet class/type, biological agents or procedures, chemical use, work opening, exhaust/ducting requirement, room HVAC interaction, electrical service and certification/documentation requirements.
