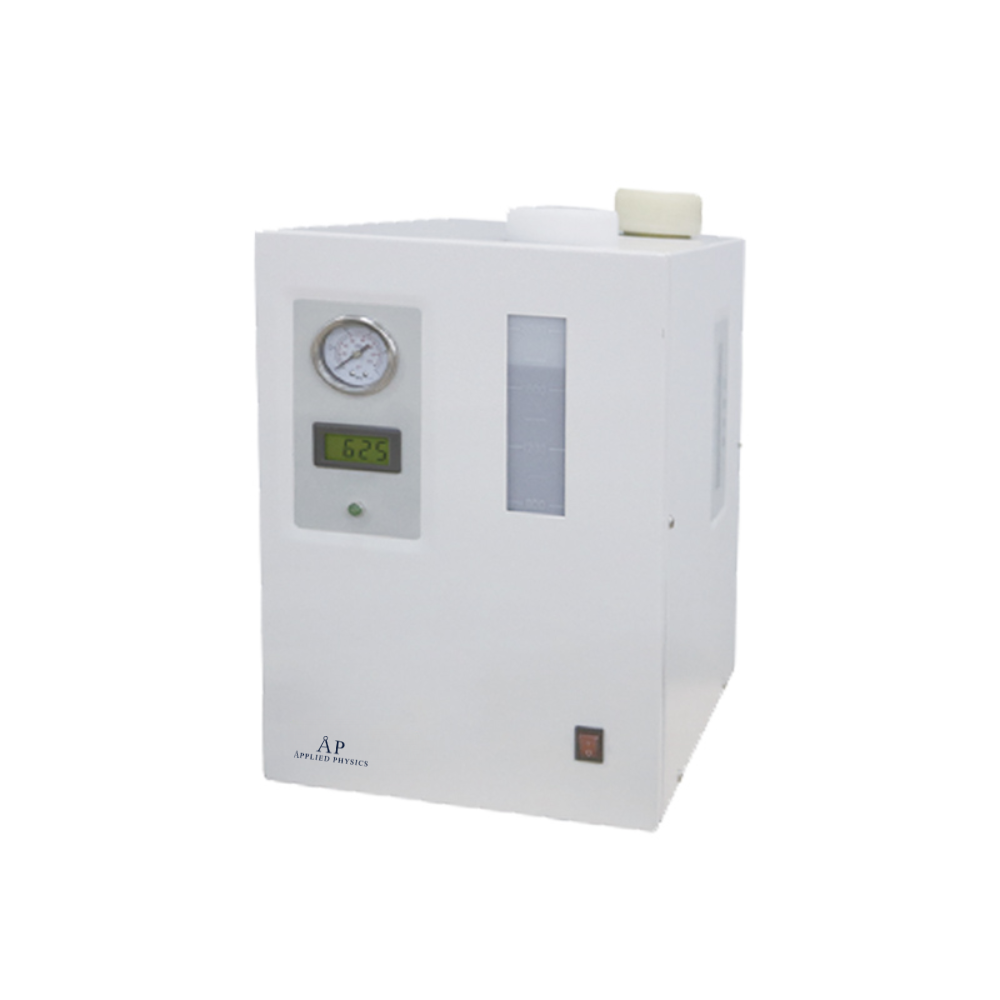

Pure Water Hydrogen Generator

Description

Pure Water Hydrogen Generator

Features:

1. SPE technology.

2. No corrosion and pollution.

3. High purity hydrogen(99.999%)(for Laboratory type).

4. Suitable for all kinds of GC(Gas chromatography).

5. Stable output flow, safe and convenient to operate, various alarm devices(over pressure alarm, water shortage alarm, water accumulated alarm).

6. The electrolytic cell adopts imported ionic membrane, which has the characteristics of resistance, durability and long life.(for Breathing Type(plastic shell)).

7. The output flow of electrical automatic control system is stable and the fluctuation is small.(for Breathing Type(plastic shell)).

Technical Parameters:

Model

HGC-200

HGC-300

HGC-600

Type

Laboratory type

Laboratory type

Laboratory type

Output Flow(ml/min)

0~200

0~300

0~600

Output Pressure

0.4MPa/0.02~

0.7MPa(under stable pressure)

0.4MPa/0.02~

0.7MPa(under stable pressure)

0.4MPa/0.02~

0.7MPa(under stable pressure)

Hydrogen Purity

>99.999%

>99.999%

>99.999%

Silicon Tube

Yes

Yes

Yes

Pressure Stability

<0.001Mpa

Consumption

120W

150W

300W

Power Supply

AC110V/220V±10%, 50/60Hz

External Size(W*D*H)

350*220*380mm

350*220*380mm

350*220*380mm

Package Size(W*D*H)

500*370*540mm

500*370*540mm

500*370*540mm

Net Weight

11kg

11kg

13kg

Gross Weight

12kg

12kg

14kg
