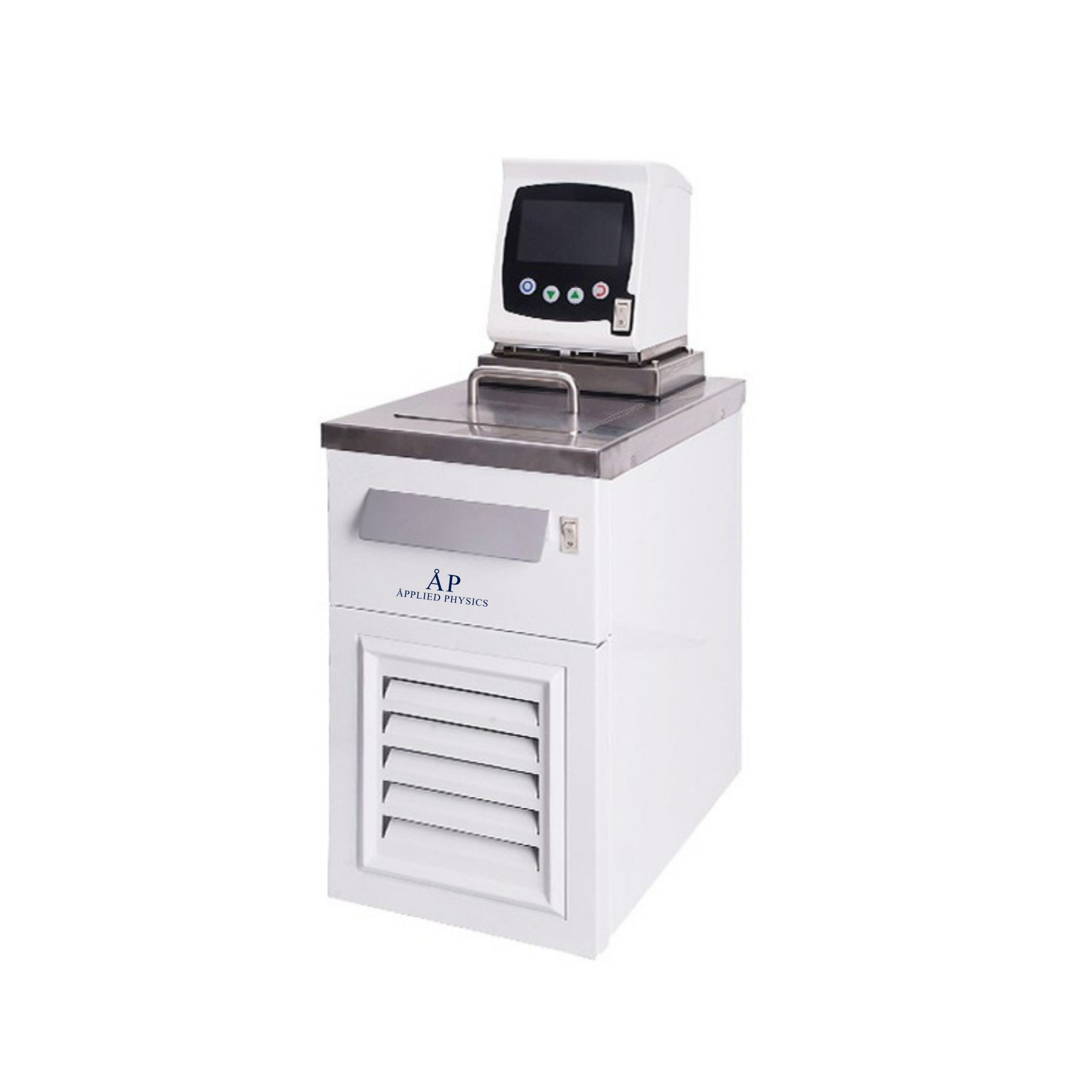

Refrigerated and Heating Circulator (Customized)

Refrigerated and Heating Circulator (Customized) Application: Experiment that need heating and cooling, Fermentation Tank, Polarimeter, Refractometer,Spectrophotometer, Electrophoresis System, Chromatographic Column, Viscometer, RotationEvaporation lnstrument, Rheometer. Features: 1. LCD display 2. Robust water tank: ultra-slushing and rust-proof 3. Low Noise design: use high quality compressor and mute pump. 4.  Convenience function:Parameters memory function, temperature correction. 5. PID temperature control system: control temperature stability accurately and fast. 6. Multi-protection: Over-current protection, high and low temperature warning functions, dry-running protection. 7. ECO-refrigerant R134a and high quality compressor guarantee the cooling system ecofriendly and powerful 8. Compact design, removable venting grid for convenient cleaning to maintain cooling performance and drain off water. Technical Parameters: Model BKL6-05 BKH6-05 BKL6-20 BKH6-20 Working Temp.Range -5℃~100℃ -5℃~200℃ -20℃~100℃ -20℃~200℃ Temp.Control PID Temp.Stability ±0.03℃ Temp.Sensor PT100 Display Resolution 0.1℃ Heater Consumption 2000 W Cooling Consumption 250W Refrigerant R134a Pump Capacity Pressure 0.35bar Pump Flow Rate 10L/min Ambient Temp. -20～70℃ Filling Volume 6L Power Supply AC220V±10%,50Hz Bath Opening(W*D) 160*160mm Bath Dimensions(W*D*H) 320*180*150mm External Size(W*D*H) 400*250*650mm Package Size(W*D*H) 590*420*930mm Gross Weight 43.5kg

Catalog relationship: Available Through Applied Physics
