Description

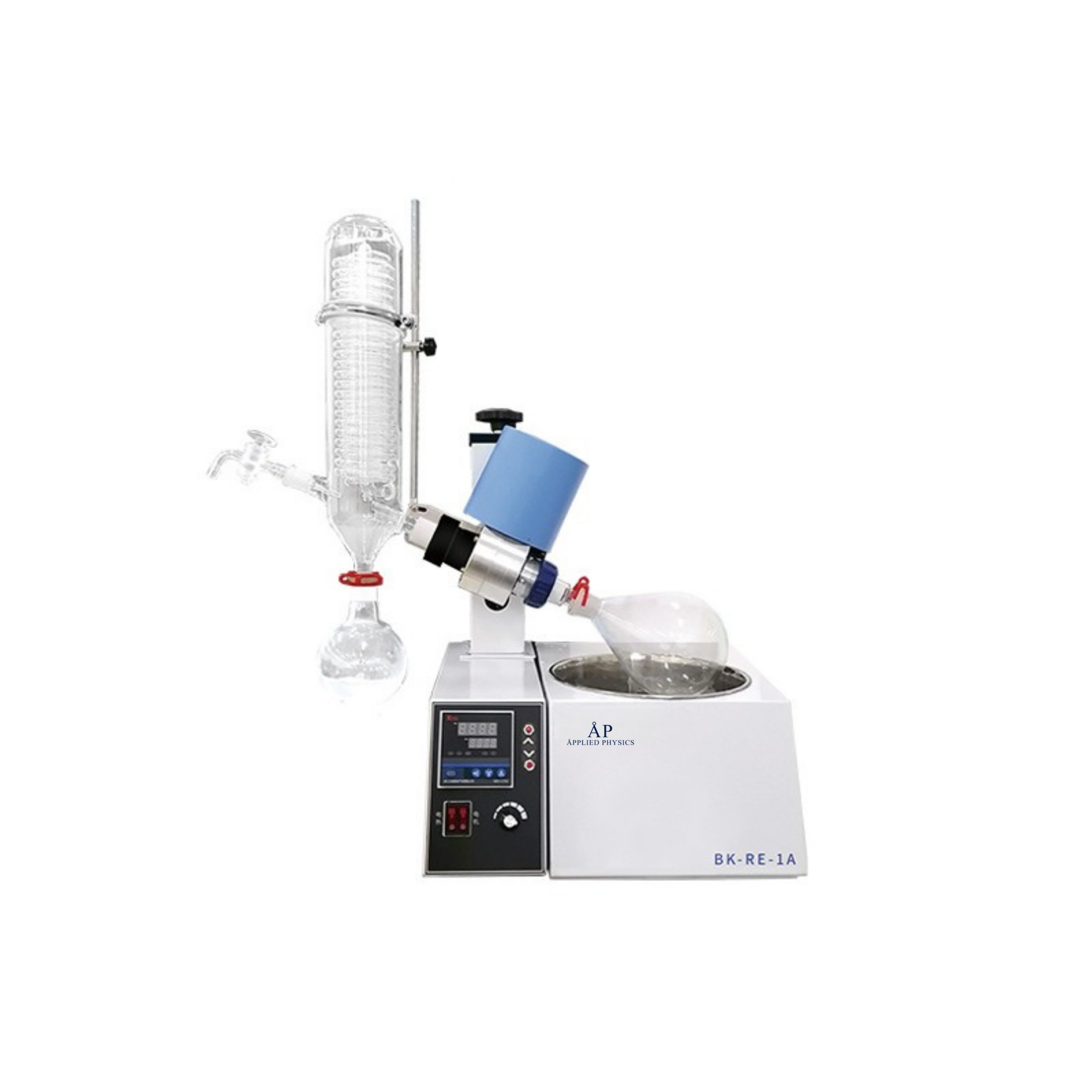

Rotary Evaporator BK-RE-1A Application: Mainly used for concentration, crystallization, drying, separation and solvent recovery in chemical. Features: 1. Stepless speed controller. 2. PID temperature adjustment. 3. Automatic lift control. 4. High evaporating and recovery collecting rate. Technical Parameters: Model BK-RE-1A Rotary Bottle 1L 24#(standard size） Collecting Bottle 0.5L 24#(standard size） Glass Material GG-17 Shelf Material Spray anti-corrosion steel Heating Unit Size 250*388*169mm Chamber Size φ220*140mm Heating Power 1KW Temp. Range 0~99℃ Temp. Accuracy ±1℃ Temp. Sensor PT100 Vacuum 0.096Mpa Rotary Motor 30W Rotating Speed 0~120rpm Lift Motor Lifting Power 15W Lifting Stroke 150mm Speed Control Stepless speed controller Sealing Method Fluorine rubber skeleton oil seal Condenser φ85*450mm Charging Valve 19#(standard size) Power Supply 220V, 50Hz(Standard); 220V, 60Hz(Optional) External Size(W*D*H) 640*340*(860~1010)mm Package Size(W*D*H) 740*550*580mm Gross Weight 38kg Standard Accessory 1L Rotary Bottle*1, 0.5L Collecting Bottle*1 Optional Accessory Vacuum pump, Recirculating chiller, Transparent cover
