Description

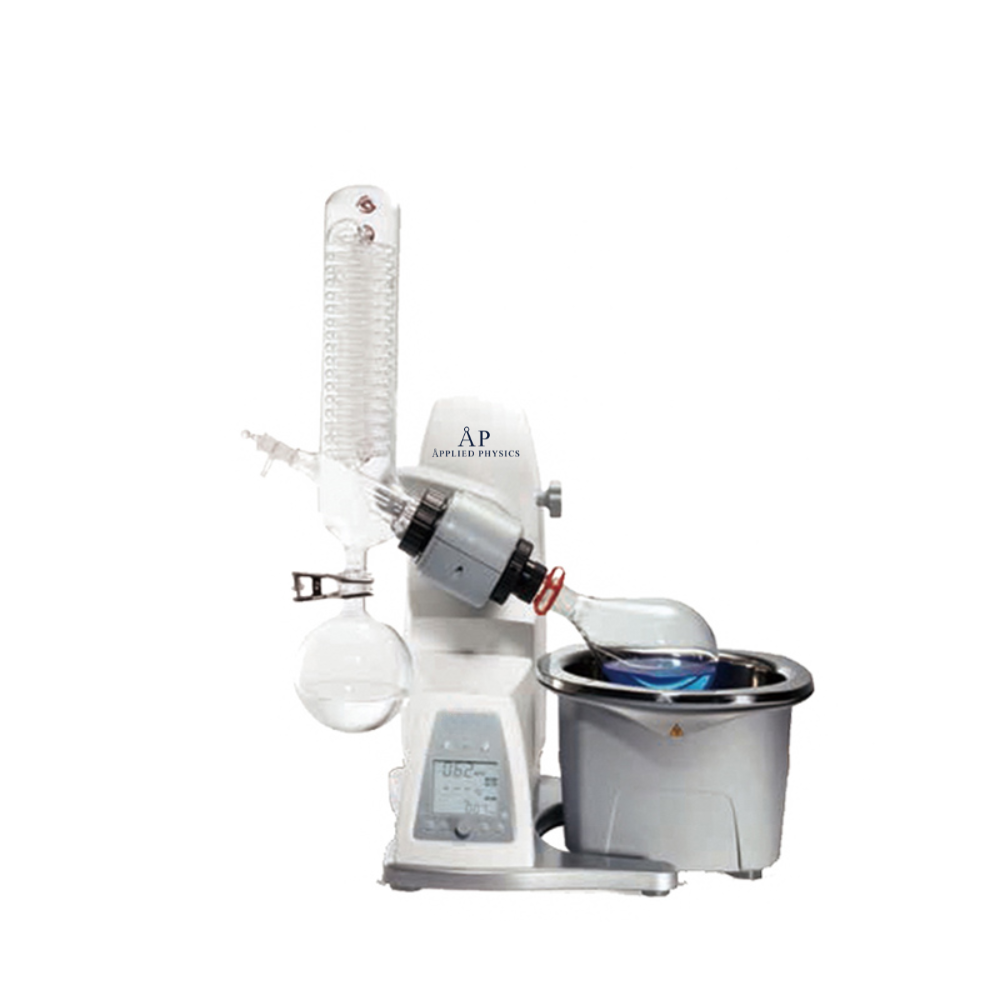

Rotary Evaporator(New Design) RE 100-Pro
Features:
1. Evaporating flask with an ejector, convenient to remove.
2. 5L water and oil bath dual-purpose heating pot, heating temperature can reach 180℃, easy to switch between water and oil bath heating modes.
3. Patented technology condenser, high recovery rate, condensing effect outstanding.
Technical Parameters:
Model
RE 100-Pro
Item No.
6010110111
Evaporating Flask
1L(NS 29/32, 18300120 )
Receiving Flask
1L(KS 35/20, 18300110)
Display
LCD
Rotating Speed
20~280rpm
Temp. Range
RT~180°C
Temp. Accuracy
Water bath: ±1°C
Oil bath: ±3°C
Lift
Motor
Stroke Height
150mm
Timing Range
1~999min
Motor
DC brushless motor
Heating Power
1300W
Stroke Displacement
Automatic 150mm
Protection Class
IP20
Rotation
Reversible direction
Interface
USB
Power
1400W
Power Supply
AC110/220V±10%, 50/60Hz(Customizable)
External Size(W*D*H)
465*457*583mm
Package Size(W*D*H)
640*1100*650mm
Net Weight
15kg
Gross Weight
36kg
Standard Accessory
Condenser(1700cm2)*1, 1L Evaporating flask* 1, 1L Receiving flask* 1, 5L pot*1
Optional Accessory
Vacuum pump, Recirculating chiller
