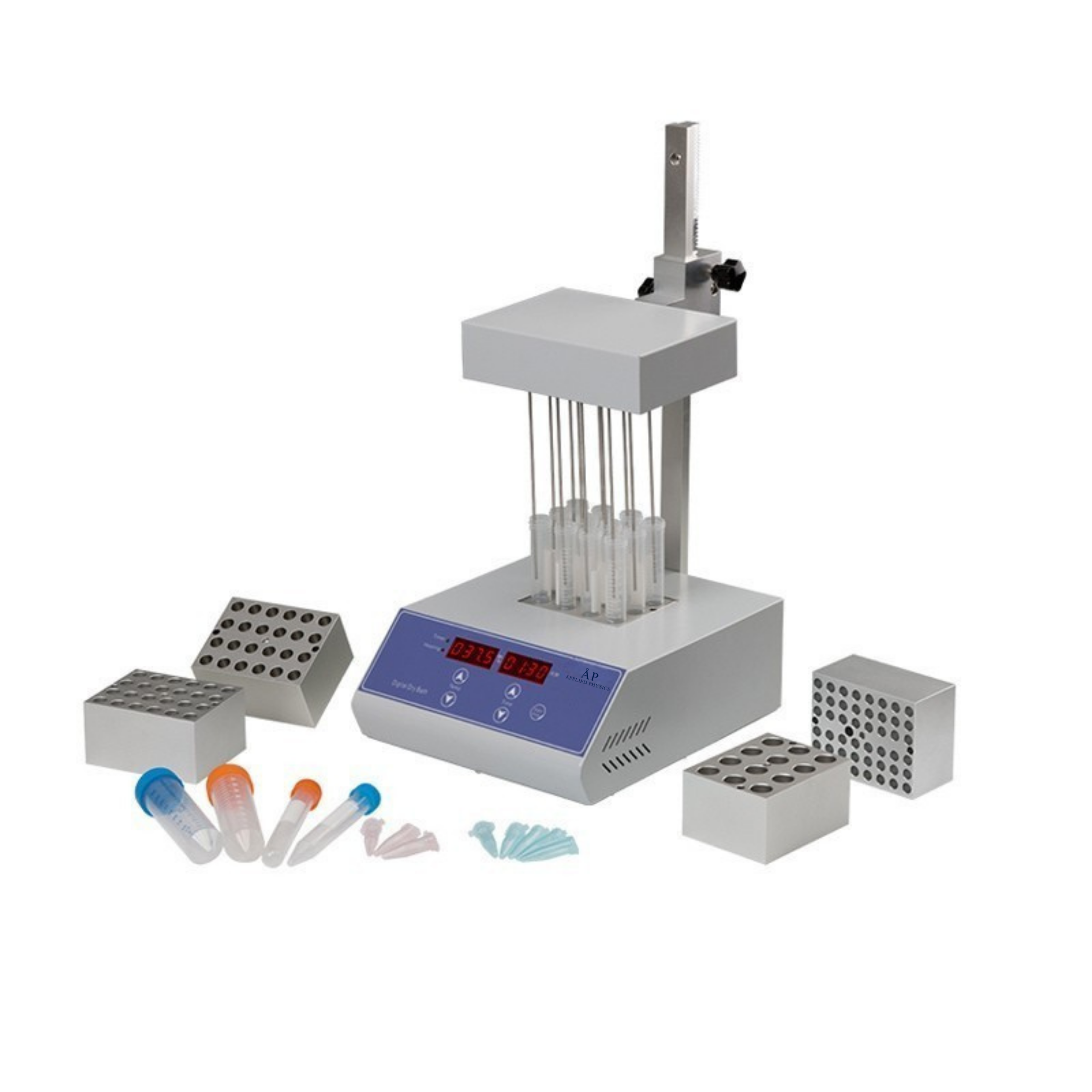

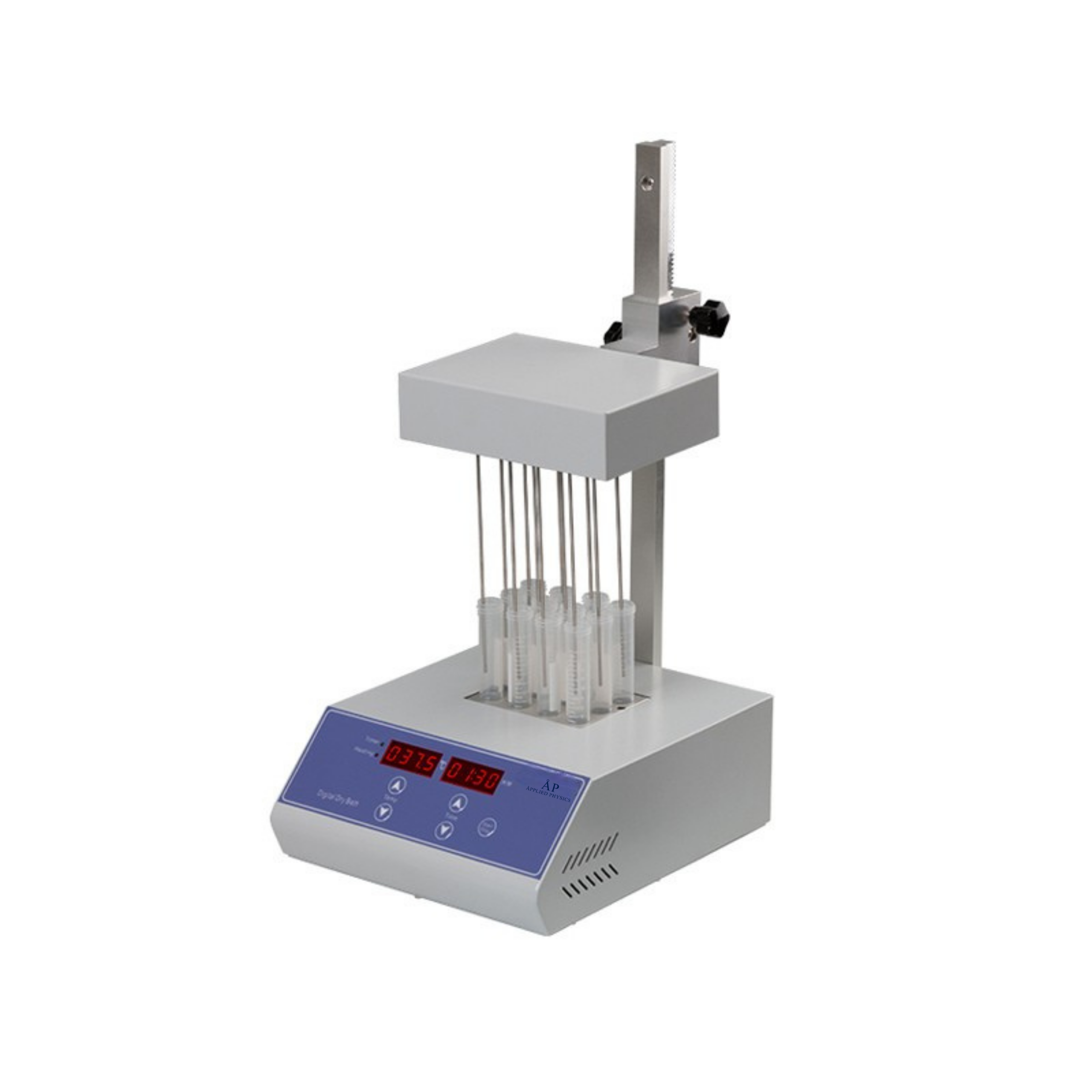

Sample Concentrator BK-SC100
Sample Concentrator BK-SC100 - Image 2

Sample Concentrator BK-SC100

$0.00

The Sample Concentrator is a high-efficiency laboratory instrument designed to concentrate or evaporate multiple liquid samples simultaneously.

ELGA CENTRA · CENTRAL DISTRIBUTION

Size purification, storage and loop delivery as one system

CENTRA is selected for multi-point laboratory distribution. The quote should define required water grade, daily production, peak simultaneous demand, reservoir strategy, loop flow, distribution distance, sanitization approach and future expansion.

Multiple points of usePurification + storage + distributionLoop-flow requirement mattersPlan for sanitization + expansion
CENTRA application guideCompare systemsReview the loop
SKU: AP-Sample-Concentrator-BK-SC100 Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Sample Concentrator BK-SC100

Features:

1. High precision and wide range of tamp control.

2. Blowing a large number of samples at one time.

3. Blowing each sample independently.

4. Amount of airflow can be adjusted.

5. Easy operation; safe and reliable to use.

6. 12-month warranty.

Technical Parameters:

Model

BK-SC100

Temp. Control Range

RT+5°C~160°C

Temp. Uniformity

≤±0.5°C

Display Accuracy

0.1°C

Heating Time

≤15min(from 25°C to 160°C)

Max Gas Usage

15L/min

Max Gas Pressure

0.02Mpa(Gas pin≤16pcs)

0.05Mpa(Gas pin>16pcs)

Max Power

300W

Dimension

260*220*450mm

Temp. Accuracy

±0.5°C(@40°C)

Temp. Accuracy

±1°C(@120°C)

Timing Range

1~99h59min/∞

Max Vertical Travel

200mm

Needle Length

150mm

Block Quantity

1

Voltage

220V, 50/60Hz; 110V, 60Hz

Packing Size(W*D*H)

430*420*340mm

Weight(kg)

7.0

Gross Weight(kg)

9.0

Optional Blocks:

Type

Test Tube Diameter

 Capacity

B03

10mm

24

B04

12mm

24

B05

13mm

24

B06

15mm

16

B07

16mm

16

B08

19mm

12

B09

20mm

12

B10

26mm

8

B11

28mm

4

B12

40mm

3

B15

1.5ml(centrifuge tube)

24

B16

2.0ml(centrifuge tube)

24

Choose one as a standard block.
