Sample Concentrator(visible)
Sample Concentrator(visible) - Image 2

Sample Concentrator(visible)

$0.00

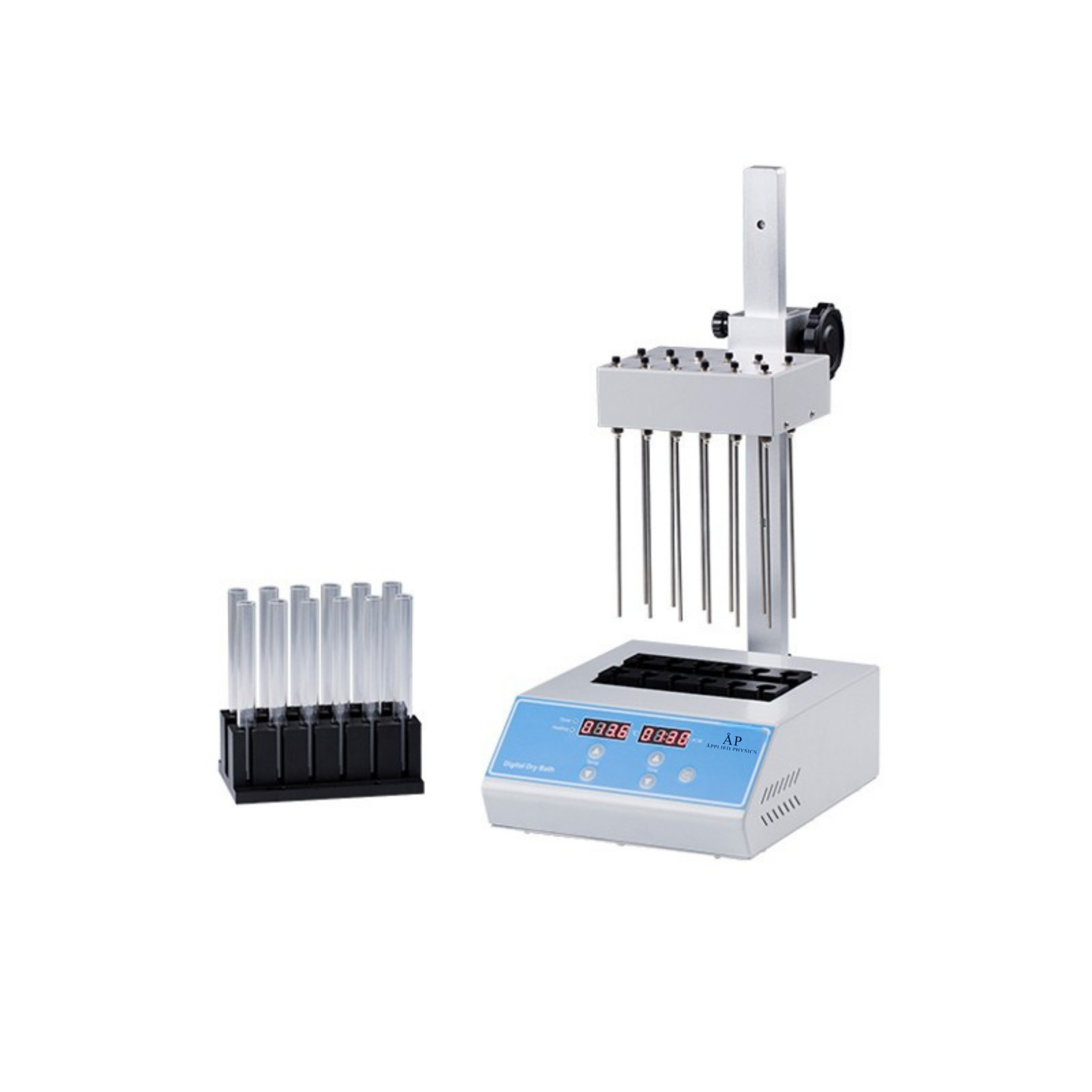

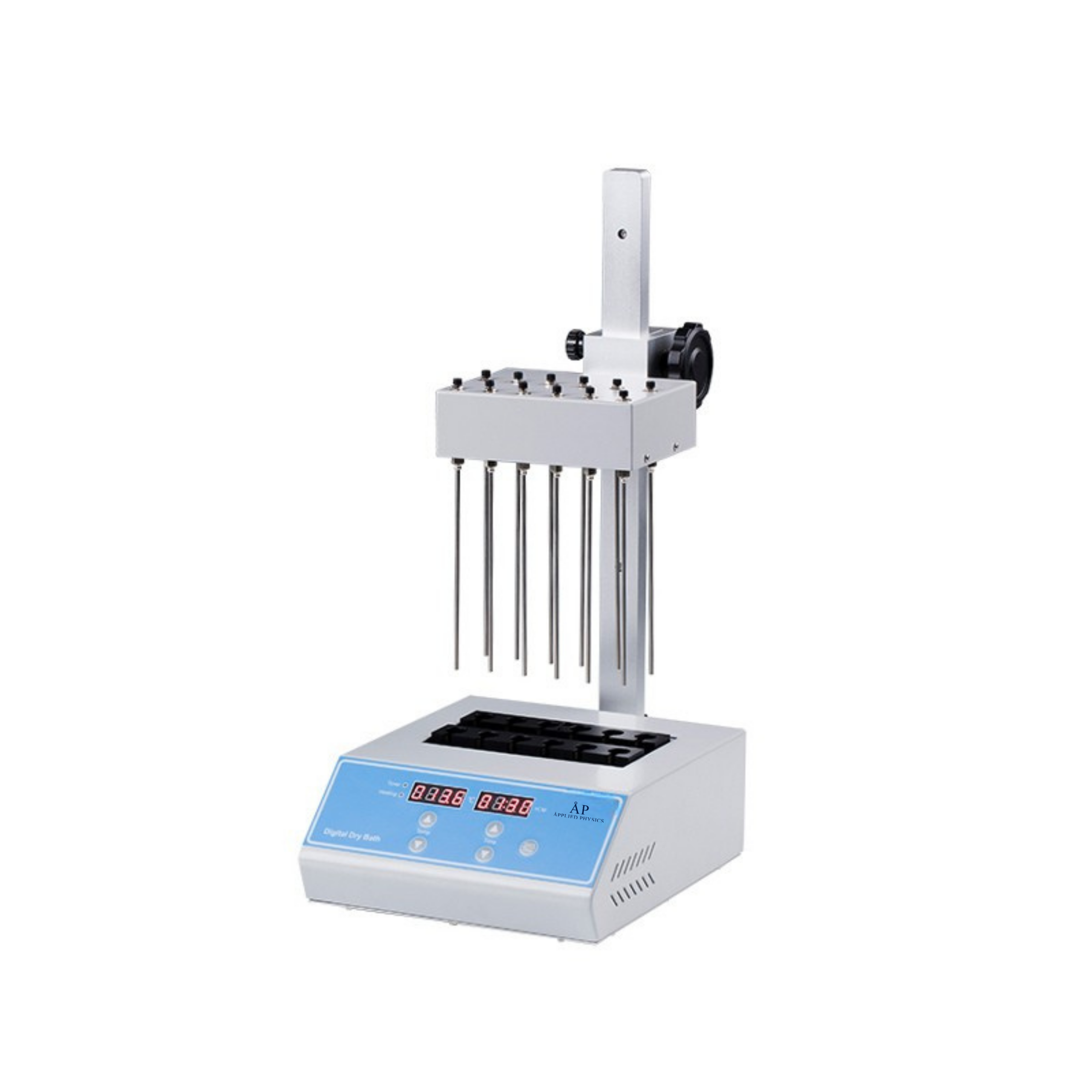

The Sample Concentrator is a high-efficiency laboratory instrument designed to concentrate or evaporate multiple liquid samples simultaneously.

ELGA CENTRA · CENTRAL DISTRIBUTION

Size purification, storage and loop delivery as one system

CENTRA is selected for multi-point laboratory distribution. The quote should define required water grade, daily production, peak simultaneous demand, reservoir strategy, loop flow, distribution distance, sanitization approach and future expansion.

Multiple points of usePurification + storage + distributionLoop-flow requirement mattersPlan for sanitization + expansion
CENTRA application guideCompare systemsReview the loop
SKU: AP-Sample-Concentrator-visible Categories: , Catalog relationship: Available Through Applied Physics
Related Applied Physics resources

Continue through the Medical portfolio

Use these technical and portfolio pages to compare applications and related equipment. To keep this exact product attached to an RFQ, use the product’s existing Request a Quote or Add To Order control.

Applied Physics Medical Clinical & Sterile Processing

Description

Sample Concentrator(visible)

Features:

1. High precision and wide range of temp control.

2. Blowing a large number of samples at one time.

3. Blowing each sample independently.

4. Amount of airflow can be adjusted.

5. With special slotting-design block, surface location of.

6. Concentrated samples can be observed.

7. Easy operation; safe and reliable to use.

Technical Parameters：

Model

BK-SC400

Temp. Control Range

RT.+5°C~160°C

Temp. Uniformity

≤±0.5°C

Display Accuracy

0.1°C

Heating Time

≤15min(from 25°C to 160°C)

Nitrogen Flow Rate

15L/min

Nitrogen Rressure

0.1Mpa

Max Power

500W

Dimension

260*220*475mm

Temp. Accuracy

±0.5°C(@40°C)

Temp. Accuracy

±1°C(@120°C)

Timing Range

1min~99h59min/∞

Needle Length

150mm

Block Quantity

1

Voltage

220V, 50/60Hz; 110V, 60Hz

Packing Size(W*D*H)

430*420*340mm

Weight(kg)

7.3

Gross Weight(kg)

10.0

Optional Blocks:

Type

Diameter

Depth

Capacity

B02 027 001

10.5mm

50mm

12

B02 027 002

12.5mm

50mm

12

B02 027 003

13.5mm

50mm

12

B02 027 004

15.5mm

50mm

12

B02 027 005

16.5mm

50mm

12

B02 027 006

19.5mm

50mm

12

B02 027 007

20.5mm

50mm

12

Choose one as a standard block.

Additional information

Model

BK-SC400
